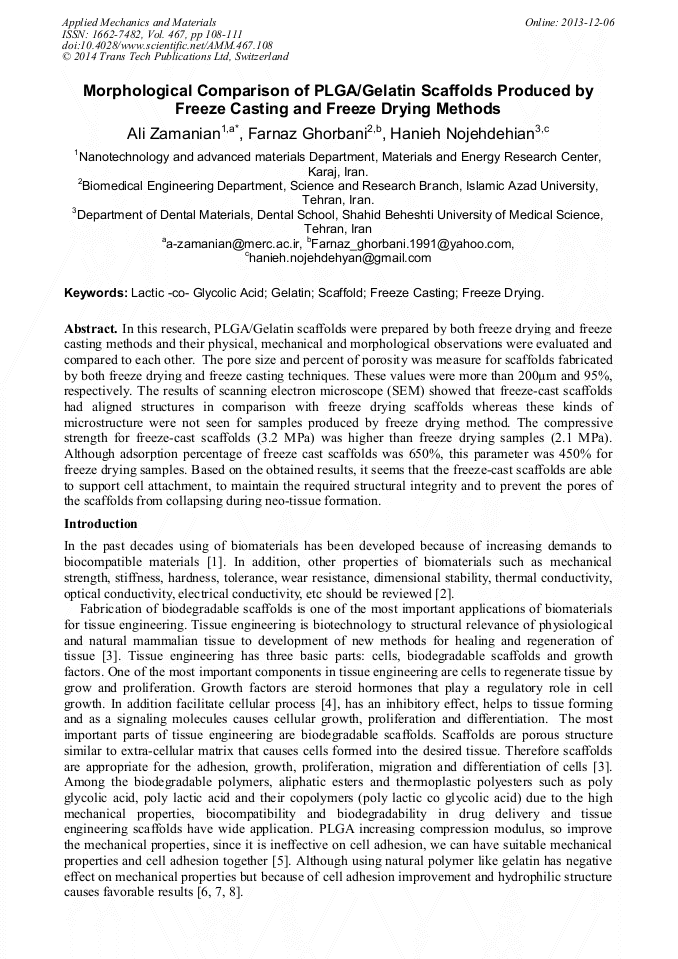

Morphological Comparison of PLGA/Gelatin Scaffolds Produced by Freeze Casting and Freeze Drying Methods

Abstract:

In this research, PLGA/Gelatin scaffolds were prepared by both freeze drying and freeze casting methods and their physical, mechanical and morphological observations were evaluated and compared to each other. The pore size and percent of porosity was measure for scaffolds fabricated by both freeze drying and freeze casting techniques. These values were more than 200μm and 95%, respectively. The results of scanning electron microscope (SEM) showed that freeze-cast scaffolds had aligned structures in comparison with freeze drying scaffolds whereas these kinds of microstructure were not seen for samples produced by freeze drying method. The compressive strength for freeze-cast scaffolds (3.2 MPa) was higher than freeze drying samples (2.1 MPa). Although adsorption percentage of freeze cast scaffolds was 650%, this parameter was 450% for freeze drying samples. Based on the obtained results, it seems that the freeze-cast scaffolds are able to support cell attachment, to maintain the required structural integrity and to prevent the pores of the scaffolds from collapsing during neo-tissue formation.

• Periodical: Applied Mechanics and Materials (Volume 467)
• Pages: 108-111
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.467.108
• Online since: December 2013
• Authors: Ali Zamanian*, Farnaz Ghorbani, Hanieh Nojehdehian
• Keywords: Freeze Casting, Freeze Drying, Gelatin, Lactic-Co-Glycolic Acid, Scaffold

References

[1] Buddy D. Ratner, Allan S. Hoffman, Frede ck J. Schoen, Jack E. Lemons, Biomaterials Science, An Introduction to Materials in Medicine, 2nd Ed.

[2] Kay C Dee, D. uleo, R. Bizos, An Introduction to Tissue-Biomaterial Introduction, (2002).

[3] Jeanie L. Druy, David J. Mooney, Hydrogels for Tissue Engineering: Scaffold Design Variables and Applications, Biomaterial, 24 (2003), 4337-4351.

DOI: 10.1016/s0142-9612(03)00340-5

[4] Jeremy J. mao, Gordana, Novakovic Antonios G. mikos, Anthonly Atala, Translationae Approaches in Tissue Engineering and regenative medine, (2008).

[5] V. chiono, c. Tonda _Turo, A. matsiko, z. Ramtoola, F. maria mon tevecchi, G. ciardelli, "Incorporation of PLGA Nano Partiches into Poraus Chitosan _ Gelatin scaffold: Influence on the physical properties and call Behaviour Journal of the mechanical of Biomedical materials, 25 april (2011).

DOI: 10.1016/j.jmbbm.2011.04.019

[6] Z. X. Meng, X. X. Xu, W. Zheng, H. M. Zhou, L. Li, Y. F. Zheng, X. Lou, Preparation and Characterization of Electrospoun PLGA / Gelatin Nano-fibers as Potential Drug Delivery sys, Colloids and Surfaces B: Biointerfaces 84 , 2011, 97-102.

DOI: 10.1016/j.colsurfb.2010.12.022

[7] Z. X. Meng, Y. S. Wang, C. Ma, W. Zheng, L. Li, Y. F. Zheng, Electrospinning of PLGA / Gelatin Randomly Oriented and Aligned Nanofibers as Potential Scaffold in Tissue Engineering, Materials Science and Engineering C 30, 2010, 1204-1210.

DOI: 10.1016/j.msec.2010.06.018

[8] Z. Jin, Z. Yu_ ping, z. wei, Y xiao - yan, "Electrospinning of PLGA / Gelatin blend sys, Chemical journal of Chinese universities, 2009, 391 - 395.

[9] L. Qian, H. zhang, Controlled Freezing and Freeze Drying: a Versatile Route for Porous and Micro-/Nano - Structured Materials, Journal of Chemical Technology and Biotechnology, 172-184, (2010).

DOI: 10.1002/jctb.2495

[10] K. Whang, E. Healy Kevin, Method of Tissue Engineering, chapter 60, 2002, 697-703.

[11] S. Deville, Freeze Casting Of Porous Ceramics: A Review of Current Achievements, Advanced Engineering Materials, No 3, pp.115-169, (2008).

DOI: 10.1002/adem.200700270

[12] Deville, S. (2010) Materials 3(3), 1913–(1927).

[13] Kang, H. W., Tabata, Y., Ikada, Y. (1999). Biomaterials 20(14), 1339–1344.
