Simulative and Experimental Study on Electromagnetic Pump Supplying Liquid Alloys during Casting: Modeling and Effects of Design Parameters on Pump Height

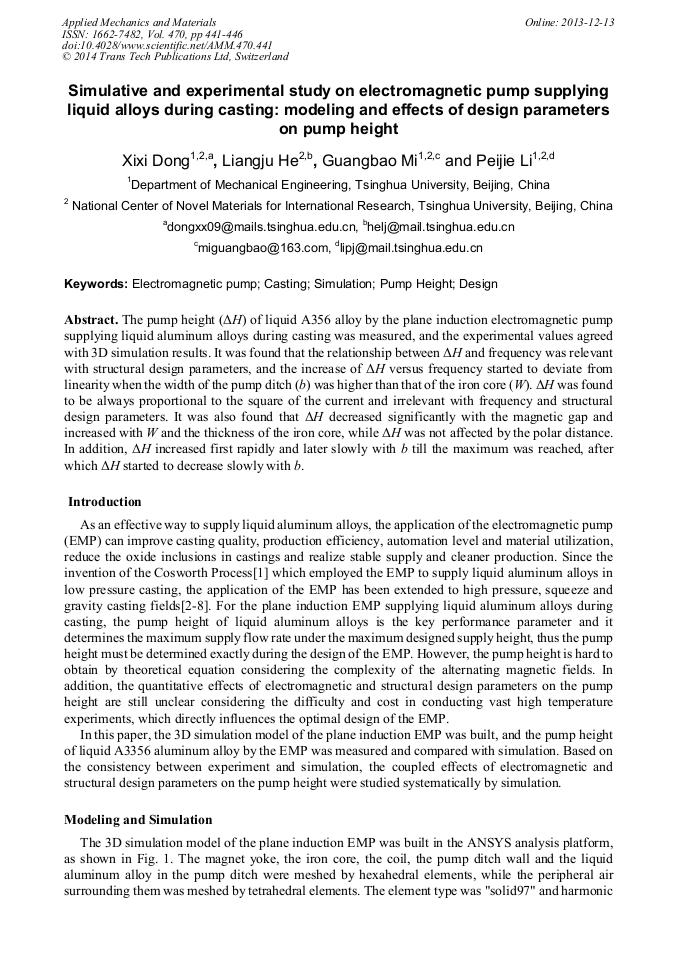

Abstract:

The pump height (ΔH) of liquid A356 alloy by the plane induction electromagnetic pump supplying liquid aluminum alloys during casting was measured, and the experimental values agreed with 3D simulation results. It was found that the relationship between ΔH and frequency was relevant with structural design parameters, and the increase of ΔH versus frequency started to deviate from linearity when the width of the pump ditch (b) was higher than that of the iron core (W). ΔH was found to be always proportional to the square of the current and irrelevant with frequency and structural design parameters. It was also found that ΔH decreased significantly with the magnetic gap and increased with W and the thickness of the iron core, while ΔH was not affected by the polar distance. In addition, ΔH increased first rapidly and later slowly with b till the maximum was reached, after which ΔH started to decrease slowly with b.

• Periodical: Applied Mechanics and Materials (Volume 470)
• Pages: 441-446
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.470.441
• Online since: December 2013
• Authors: Xi Xi Dong*, Liang Ju He, Guang Bao Mi, Pei Jie Li
• Keywords: Casting, Design, Electromagnetic Pump, Pump Height, Simulation

References

[1] J. Campbell and P.S.A. Wilkins: The British Foundrymen Vol. 5 (1983), p.233.

[2] H. Saito, Sagamihara, S. Kubota, Yokohama, N. Motomura and Zama, U.S. Patent 4, 828, 460. (1989).

[3] W.E. Mercer, H.L. King and C.F. Baker, U.S. Patent 5407000-A. (1995).

[4] J. Cheng, Y. Peng and J. Hou, China Patent CN 1255768-A. (2000).

[5] K. Miura, Y. Teruyama and R. Tomita, Japan Patent JP 2009000689-A. (2009).

[6] K. Miura and Y. Teruyama, Japan Patent JP 2009268293-A. (2009).

[7] Information on http: /www. cminovacast. com.

[8] Information on http: /www. toshiba-machine. co. jp/en/index. html.

[9] X.X. Dong, G.B. Mi, L.J. He and P.J. Li: J. Mater. Process. Technol Vol. 213 (2013), p.1426.

[10] H.R. Kim and Y.B. Lee: Ann. Nucl. Energy Vol. 38 (2011), p.1046.
