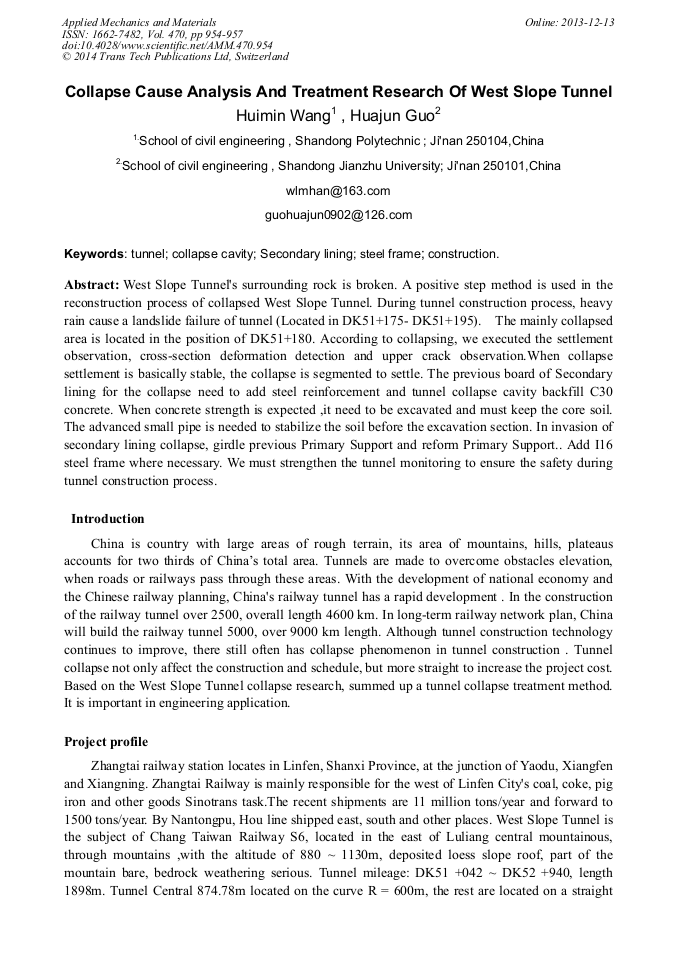

Collapse Cause Analysis and Treatment Research of West Slope Tunnel

Abstract:

Abstract: West Slope Tunnel's surrounding rock is broken. A positive step method is used in the reconstruction process of collapsed West Slope Tunnel. During tunnel construction process, heavy rain cause a landslide failure of tunnel (Located in DK51+175- DK51+195). The mainly collapsed area is located in the position of DK51+180. According to collapsing, we executed the settlement observation, cross-section deformation detection and upper crack observation.When collapse settlement is basically stable, the collapse is segmented to settle. The previous board of Secondary lining for the collapse need to add steel reinforcement and tunnel collapse cavity backfill C30 concrete. When concrete strength is expected ,it need to be excavated and must keep the core soil. The advanced small pipe is needed to stabilize the soil before the excavation section. In invasion of secondary lining collapse, girdle previous Primary Support and reform Primary Support.. Add I16 steel frame where necessary. We must strengthen the tunnel monitoring to ensure the safety during tunnel construction process.

You might also be interested in these eBooks

Mechanical Engineering, Materials Science and Civil Engineering II

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 470)

Pages:

954-957

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.470.954

Citation:

Cite this paper

Online since:

December 2013

Authors:

Hui Min Wang, Hua Jun Guo

Keywords:

Collapse Cavity, Construction, Secondary Lining, Steel Frame, Tunnel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Weixing Feng. Railway Tunnel Design. Chengdu: Southwest Jiaotong University press, China, (1998).

Google Scholar

[2] Yicai Wang. Tunnel Engineering. Beijing: People's Traffic press, China, 2000. 8.

Google Scholar

[3] Pingli Yi . Modern Tunnel Design and Construction Of Tunnel. Beijing: China Railway Publishing House, China, (1997).

Google Scholar

[4] AiguoZhou. Tunnel Project Site Construction Technology. Beijing: People's Traffic press, China, 2004. 3.

Google Scholar

[5] TBJ204-96 for Railway Tunnel Construction; Beijing: People's Traffic press, China, (1991).

Google Scholar

[6] Shihui Li. Shihui, In 1992, Tunnel surrounding rock stability of typical analogy analysis method . Journal of civil engineering; 25 ( 6 ) ; 73 ~ 75.

Google Scholar
