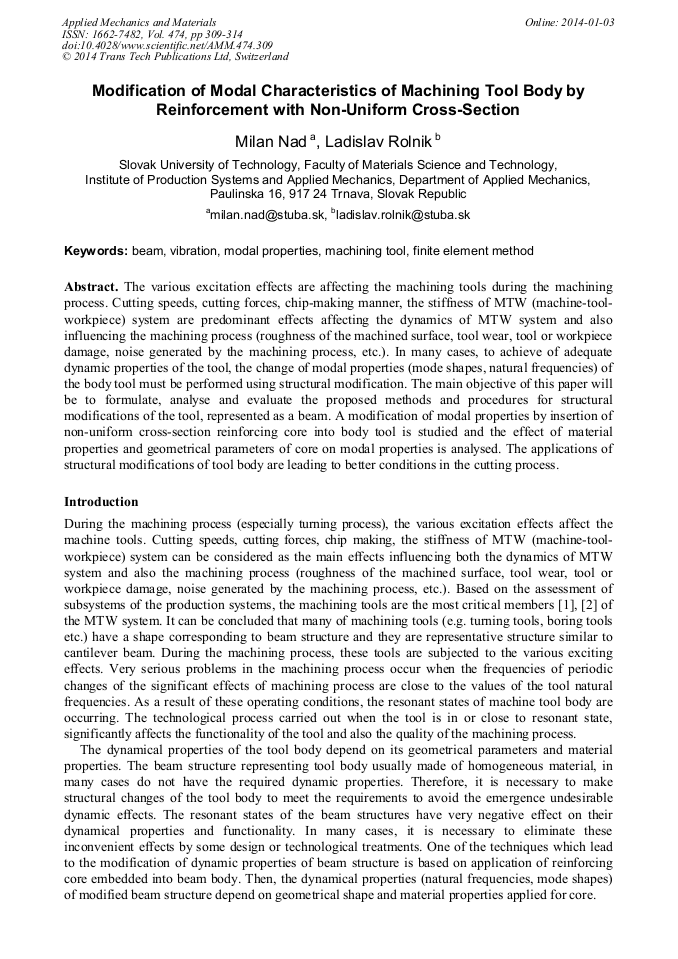

Modification of Modal Characteristics of Machining Tool Body by Reinforcement with Non-Uniform Cross-Section

Abstract:

The various excitation effects are affecting the machining tools during the machining process. Cutting speeds, cutting forces, chip-making manner, the stiffness of MTW (machine-tool-workpiece) system are predominant effects affecting the dynamics of MTW system and also influencing the machining process (roughness of the machined surface, tool wear, tool or workpiece damage, noise generated by the machining process, etc.). In many cases, to achieve of adequate dynamic properties of the tool, the change of modal properties (mode shapes, natural frequencies) of the body tool must be performed using structural modification. The main objective of this paper will be to formulate, analyse and evaluate the proposed methods and procedures for structural modifications of the tool, represented as a beam. A modification of modal properties by insertion of non-uniform cross-section reinforcing core into body tool is studied and the effect of material properties and geometrical parameters of core on modal properties is analysed. The applications of structural modifications of tool body are leading to better conditions in the cutting process.

• Periodical: Applied Mechanics and Materials (Volume 474)
• Pages: 309-314
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.474.309
• Online since: January 2014
• Authors: Milan Nad, Ladislav Rolnik
• Keywords: Beam, Finite Element Method (FEM), Machining Tool, Modal Properties, Vibration

References

[1] T. L. Schmitz, K. S. Smith, Machining dynamics-Frequency response to improved productivity, Springer, New York, (2009).

[2] H. Tschätsch, Applied machining technology, Springer, (2009).

[3] L. Meirovitch, Analytical methods in vibrations, McMillan Company, London, (1987).

[4] D. Thorby, Structural dynamics and vibration in practice - An engineering handbook, Elsevier Ltd., Oxford, (2008).

[5] M. Nad, Vibration analysis of beams with reinforcing and damping cores, In: 20th Inter. Congress on Sound and Vibration - ICSV20, 7-11 July 2013, Bangkok, Thailand, pp.1-8.

[6] L. Rolnik, M. Nad, The Effect of inner reinforcing cores on natural frequencies of the lathe tool body, In: Internal Doctoral Seminar, May 13-15, 2013, Dubrovnik, Croatia, pp.282-288.

[7] M. Saga, M. Zmindak, V. Dekys, A. Sapietová, S. Segľa, Selected Methods for the Analysis and Synthesis of Mechanical Systems. VTS ZU, Zilina, (2009). ISBN 978-80-89276-17-2 (in slovak).

[8] T. Nanasi, Effect of boundary conditions on vibration localization of two-span beams, In: 20th Inter. Congress on Sound and Vibration - ICSV20, 7-11 July 2013, Bangkok, Thailand, pp.1-8.
