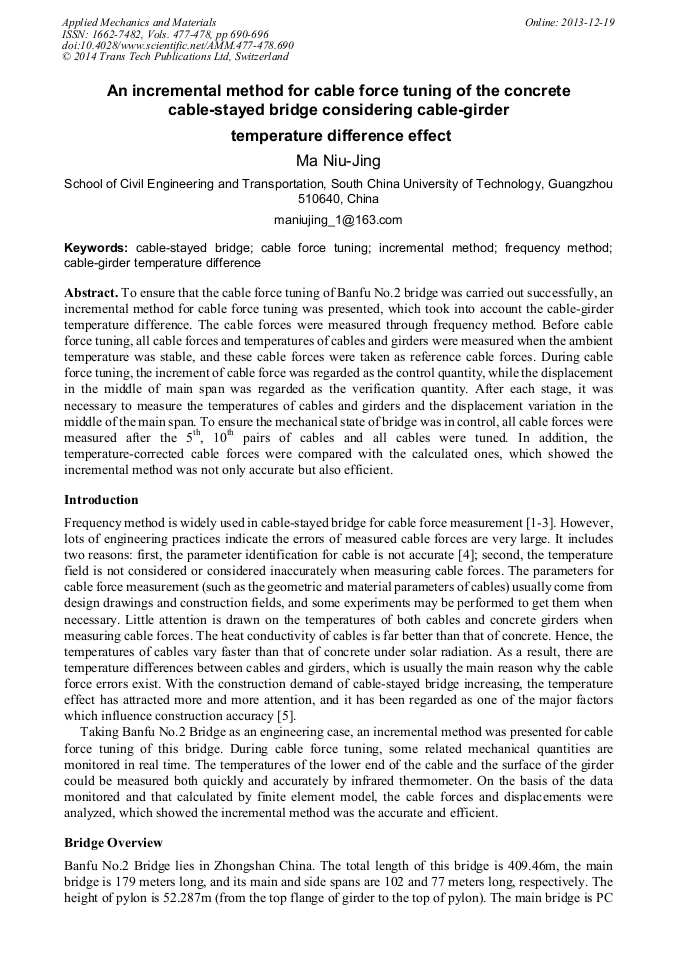

An Incremental Method for Cable Force Tuning of the Concrete Cable-Stayed Bridge Considering Cable-Girder Temperature Difference Effect

Abstract:

To ensure that the cable force tuning of Banfu No.2 bridge was carried out successfully, an incremental method for cable force tuning was presented, which took into account the cable-girder temperature difference. The cable forces were measured through frequency method. Before cable force tuning, all cable forces and temperatures of cables and girders were measured when the ambient temperature was stable, and these cable forces were taken as reference cable forces. During cable force tuning, the increment of cable force was regarded as the control quantity, while the displacement in the middle of main span was regarded as the verification quantity. After each stage, it was necessary to measure the temperatures of cables and girders and the displacement variation in the middle of the main span. To ensure the mechanical state of bridge was in control, all cable forces were measured after the 5^th, 10^th pairs of cables and all cables were tuned. In addition, the temperature-corrected cable forces were compared with the calculated ones, which showed the incremental method was not only accurate but also efficient.

• Periodical: Applied Mechanics and Materials (Volumes 477-478)
• Pages: 690-696
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.477-478.690
• Online since: December 2013
• Authors: Niu Jing Ma*
• Keywords: Cable Force Tuning, Cable-Girder Temperature Difference, Cable-Stayed Bridge, Frequency Method, Incremental Method

References

[1] Z. Fang and J.Q. Wang: Practical formula for cable tension estimation by vibration method, Journal of Bridge Engineering, Vol. 17, No. 1 (2012), pp.161-164.

DOI: 10.1061/(asce)be.1943-5592.0000200

[2] B.H. Kim and T. Park: Estimation of cable tension force using the frequency-based system identification method, Journal of Sound and Vibration, Vol. 304, No. 3-5 (2007), pp.660-676.

DOI: 10.1016/j.jsv.2007.03.012

[3] J.C. Russell and T.J. Lardner: Experimental determination of frequencies and tension for elastic cables, Journal of Engineering Mechanics, Vol. 124, No. 10 (1998), pp.1067-1072.

DOI: 10.1061/(asce)0733-9399(1998)124:10(1067)

[4] John, H.G. Macdonald and Wendy, E. Daniell: Variation of modal parameters of a cable-stayed bridge identified from ambient vibration measurements and FE modeling, Engineering Structures, Vol. 27, No. 13 (2005), p.1916-(1930).

DOI: 10.1016/j.engstruct.2005.06.007

[5] Y.L. Xu, B. Chen, C.L. Ng, K.Y. Wong and W. Y Chan: Monitoring temperature effect on a long suspension bridge, Structural Control and Health Monitoring, Vol. 17, No. 6 (2010), pp.632-653.

DOI: 10.1002/stc.340

[6] H.M. Irvine: Cable structures (MIT Press, Cambridge, MA 1981).
