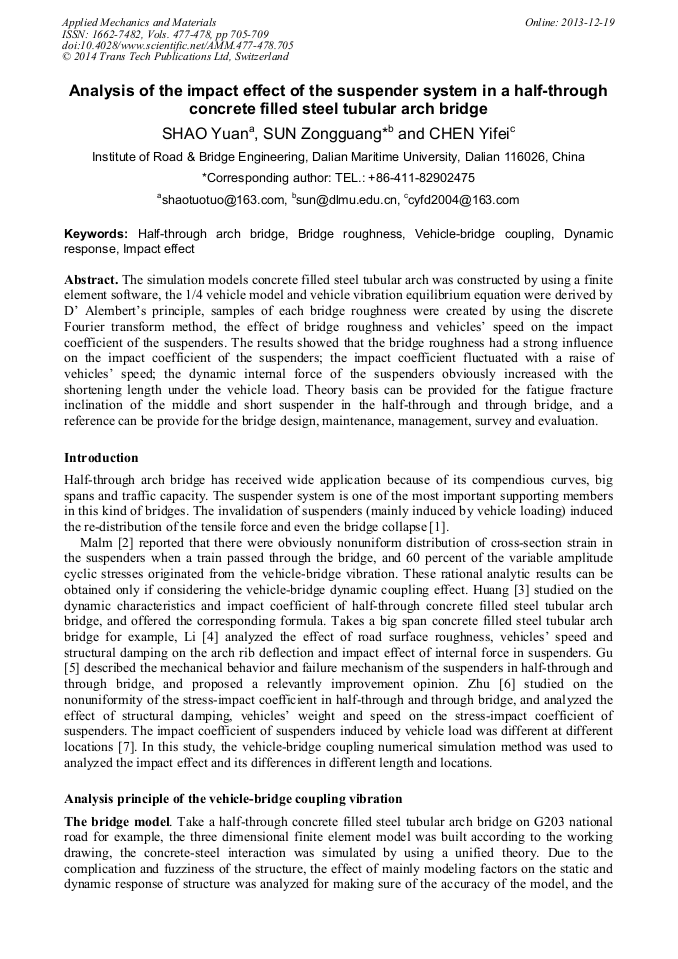

Analysis of the Impact Effect of the Suspender System in a Half-Through Concrete Filled Steel Tubular Arch Bridge

Abstract:

The simulation models concrete filled steel tubular arch was constructed by using a finite element software, the 1/4 vehicle model and vehicle vibration equilibrium equation were derived by D Alemberts principle, samples of each bridge roughness were created by using the discrete Fourier transform method, the effect of bridge roughness and vehicles speed on the impact coefficient of the suspenders. The results showed that the bridge roughness had a strong influence on the impact coefficient of the suspenders; the impact coefficient fluctuated with a raise of vehicles speed; the dynamic internal force of the suspenders obviously increased with the shortening length under the vehicle load. Theory basis can be provided for the fatigue fracture inclination of the middle and short suspender in the half-through and through bridge, and a reference can be provide for the bridge design, maintenance, management, survey and evaluation.

• Periodical: Applied Mechanics and Materials (Volumes 477-478)
• Pages: 705-709
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.477-478.705
• Online since: December 2013
• Authors: Yan Shao, Zong Guang Sun*, Yi Fei Chen
• Keywords: Bridge Roughness, Dynamic Response, Half-Through Arch Bridge, Impact Effect, Vehicle-Bridge Coupling

References

[1] J.S. Zhu and Q. Yi: Bridge Constr Vol. 1 (2011), p.39.

[2] R. Malm and A. Andersson: Eng Struct Vol. 28 (2006), p.143.

[3] D.Z. Huang: J Bridge Eng Vol. 10 (2005), p.133.

[4] Y. Li, Y.J. Chen and X.Y. Huang: J Harbin I Tech Vol. 1 (2010), p.109.

[5] A.B. Gu and J.L. Xu: J Chongqing Jiaotong U Vol. 12 (2002), p.1.

[6] J.S. Zhu and Q. Yi: J Vib Shock Vol. 13 (2012), p.5.

[7] X.Z. Li, L.M. Zhang and J. Zhang: Eng Mech Vol. 25 (2008), p.230.

[8] F.N. Leitão, J.G.S. da Silva, P.C.G. da S. Vellasco, S.A.L. de Andrade and L.R.O. de Lima: J Constr Steel Res Vol. 67 (2011), p.14.

DOI: 10.1016/j.jcsr.2011.03.002

[9] Y. Sao and Z.G. Sun: Appl Mech Mater Vol. 178-181 (2012), p.2393.

[10] X.Y. Huang, W.D. Zhou, H.F. Sheng and L.Y. Li: J Highway Transp Res Dev. Vol. 3 (2010), p, 59.

[11] S.R. Gui, S.S. Chen and S.Q. Xu: J East China Jiaotong U Vol. 24 (2007), p, 35.

[12] The Ministry of machinery industry of the people's Republic of China. GB7031-86 Vehicle vibration-Describing method for road surface irregularity. Beijing: China Standard Press, 1986. (in Chinese).
