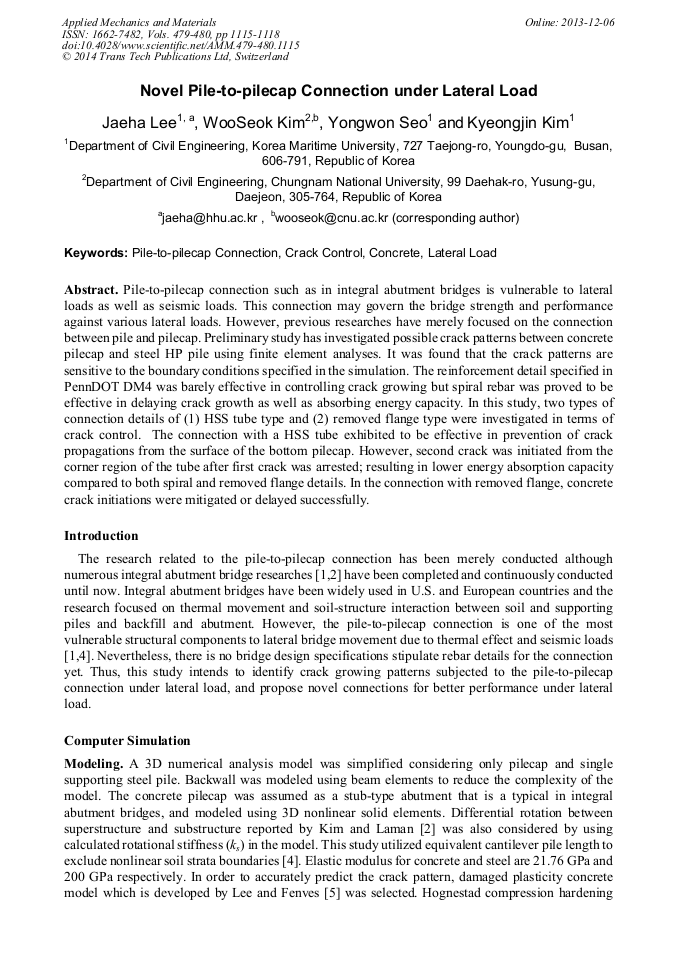

Novel Pile-to-Pilecap Connection Under Lateral Load

Abstract:

Pile-to-pilecap connection such as in integral abutment bridges is vulnerable to lateral loads as well as seismic loads. This connection may govern the bridge strength and performance against various lateral loads. However, previous researches have merely focused on the connection between pile and pilecap. Preliminary study has investigated possible crack patterns between concrete pilecap and steel HP pile using finite element analyses. It was found that the crack patterns are sensitive to the boundary conditions specified in the simulation. The reinforcement detail specified in PennDOT DM4 was barely effective in controlling crack growing but spiral rebar was proved to be effective in delaying crack growth as well as absorbing energy capacity. In this study, two types of connection details of (1) HSS tube type and (2) removed flange type were investigated in terms of crack control. The connection with a HSS tube exhibited to be effective in prevention of crack propagations from the surface of the bottom pilecap. However, second crack was initiated from the corner region of the tube after first crack was arrested; resulting in lower energy absorption capacity compared to both spiral and removed flange details. In the connection with removed flange, concrete crack initiations were mitigated or delayed successfully.

• Periodical: Applied Mechanics and Materials (Volumes 479-480)
• Pages: 1115-1118
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.479-480.1115
• Online since: December 2013
• Authors: Jae Ha Lee, Woo Seok Kim, Yong Won Seo, Kyeong Jin Kim
• Keywords: Concrete, Crack Control, Lateral Load, Pile-to-Pilecap Connection

References

[1] K. Baptiste, W. Kim and J.A. Laman: Parametric Study and Length Limitations for Prestressed Concrete Girder Integral Abutment Bridges, Journal of the International Association for Bridge and Structural Engineering (IABSE), IABSE, Vol. 21, No. 2 (2011).

DOI: 10.2749/101686611x12994961034219

[2] W. Kim and J.A. Laman: Seven-year Field Monitoring of Four Integral Abutment Bridges, Journal of Performance of Constructed Facilities, Vol. 26, No. 1 (2012), pp.54-64.

DOI: 10.1061/(asce)cf.1943-5509.0000250

[3] Pennsylvania Department of Transportation (PennDOT). Design Manual Part 4, Structures: Procedures-Design-Plans Presentation, PennDOT Design 252 Manual Part 4, Commonwealth of Pennsylvania, Department of Transportation, Harrisburg, PA (2007).

[4] R.J. Frosch, M.E. Kreger and A.M. Talbott, Earthquake Resistance of Integral Abutment Bridges, FHWA/IN/JTRP-2008/11, Joint Transportation Research Program, Indiana Department of Transportation and Purdue University, IN, doi: 10. 5703/1288284313448. (2009).

DOI: 10.5703/1288284313448

[5] J. Lee and L.G. Fenves: Plastic-damage concrete model for earthquake analysis of dams, Earthquake Eng. Struct. Dyn., Vol. 27, No. 9 (1998), pp.937-956.

DOI: 10.1002/(sici)1096-9845(199809)27:9<937::aid-eqe764>3.0.co;2-5

[6] W. Kim, J. Lee and C. Jeoung: Concrete Crack Control of Pile-to-pilecap Connection in Integral Abutment Bridges under Cyclic Bridge Movement. 3rd International Conference on Advanced Engineering Materials and Technology, Zhangjiajie, China (2013).

DOI: 10.4028/www.scientific.net/amr.753-755.462
