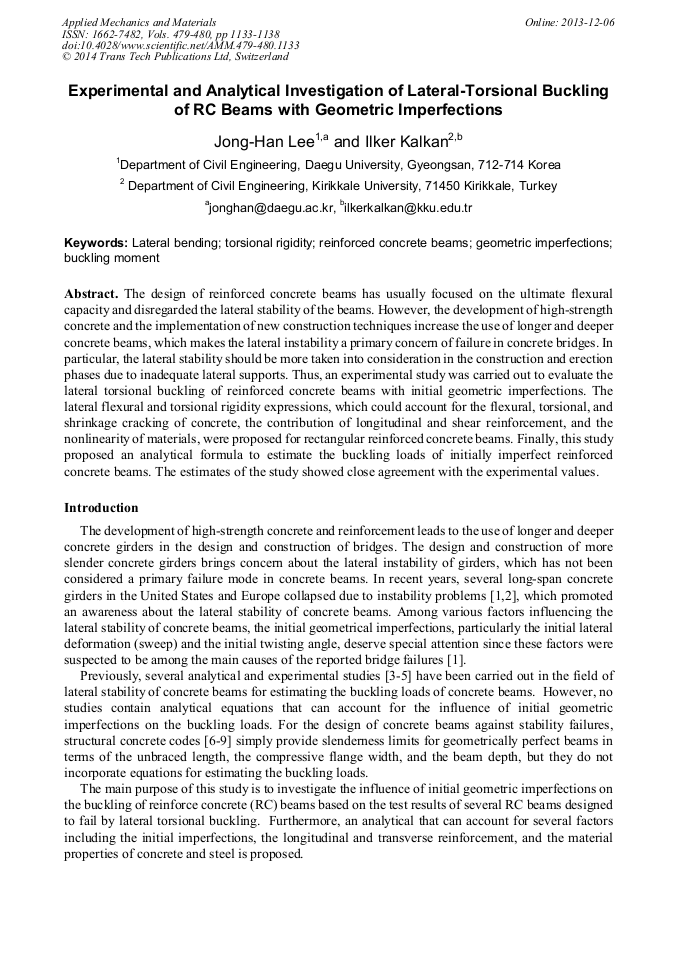

Experimental and Analytical Investigation of Lateral-Torsional Buckling of RC Beams with Geometric Imperfections

Abstract:

The design of reinforced concrete beams has usually focused on the ultimate flexural capacity and disregarded the lateral stability of the beams. However, the development of high-strength concrete and the implementation of new construction techniques increase the use of longer and deeper concrete beams, which makes the lateral instability a primary concern of failure in concrete bridges. In particular, the lateral stability should be more taken into consideration in the construction and erection phases due to inadequate lateral supports. Thus, an experimental study was carried out to evaluate the lateral torsional buckling of reinforced concrete beams with initial geometric imperfections. The lateral flexural and torsional rigidity expressions, which could account for the flexural, torsional, and shrinkage cracking of concrete, the contribution of longitudinal and shear reinforcement, and the nonlinearity of materials, were proposed for rectangular reinforced concrete beams. Finally, this study proposed an analytical formula to estimate the buckling loads of initially imperfect reinforced concrete beams. The estimates of the study showed close agreement with the experimental values.

• Periodical: Applied Mechanics and Materials (Volumes 479-480)
• Pages: 1133-1138
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.479-480.1133
• Online since: December 2013
• Authors: Jong Han Lee, Ilker Kalkan
• Keywords: Buckling Moment, Geometric Imperfections, Lateral Bending, Reinforced Concrete (RC) Beam, Torsional Rigidity

References

[1] A.H. Zureick, L.F. Kahn and K.M. Will: Stability of Precast Prestressed Concrete Bridge Girders Considering Sweep and Thermal Effects, Georgia Department of Transportation Project No. RP 05-15 Research Proposal (2005).

[2] New Civil Engineer: Poor Support Blamed for Bridge Tragedy, New Civil Engineer (1994), p.4.

[3] W. Hansell and G. Winter: Lateral Stability of Reinforced Concrete Beams, ACI Journal Vol. 56 No. 3, (1959), pp.193-214.

[4] J.K. Sant and R.W. Bletzacker: Experimental Study of Lateral Stability of Reinforced Concrete Beams, ACI Journal Vol. 58 No. 6 (1961), pp.713-736.

[5] C. Massey: Instability of Reinforced Concrete Beams under Uniform Bending Moments, ACI Journal Vol. 64 No. 3 (1967), pp.164-172.

DOI: 10.14359/7552

[6] ACI Committee 318: Building Code Requirements for Structural Concrete (ACI 318-08) and Commentary (ACI R318-08) (Farmington Hills, Michigan 2008).

DOI: 10.1061/(asce)1076-0431(1996)2:3(120.3)

[7] American Association of State Highway and Transportation Officials: AASHTO LRFD Bridge Design Specifications (SI Units) – Section 5: Concrete Structures (Washington DC 2005).

[8] British Standards Institution: BS 8110-1: Structural Use of Concrete – Part 1: Code of Practice for Design and Construction (London 1997).

[9] European Committee for Standardization (CEN): Eurocode 2: Design of Concrete Structures - Part 1: General Rules and Rules for Building (Brussels).

[10] ASTM C 39/C 39M: Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens (West Conshohocken, Pennsylvania 2005).

[11] ASTM C 469: Standard Test Method for Static Modulus of Elasticity and Poisson's Ratio of Concrete in Compression (West Conshohocken, Pennsylvania 2002).

[12] A. Considère : Résistance des Pièces Comprimées (Strength of Compression Members, Congrès International de Procèdes de Construction (1891), p.3: 371.

[13] F. Engesser: Über Knickfragen (About Bending Problems) Schweizerische Bauzeitung Vol. 26, (1895), pp.24-26.

[14] A. Scanlon and P.H. Bischoff: Shrinkage Restraint and Loading History Effects on Deflections of flexural Members, ACI Structural Journal Vol. 105 No. 4 (2008), pp.498-506.

DOI: 10.14359/19864

[15] C.J. Burgoyne and T.J. Stratford: Lateral Stability of Long-span Prestressed Concrete Beams on Flexible Bearings, The Structural Engineer Vol. 79 No. 6 (2001), pp.23-26.
