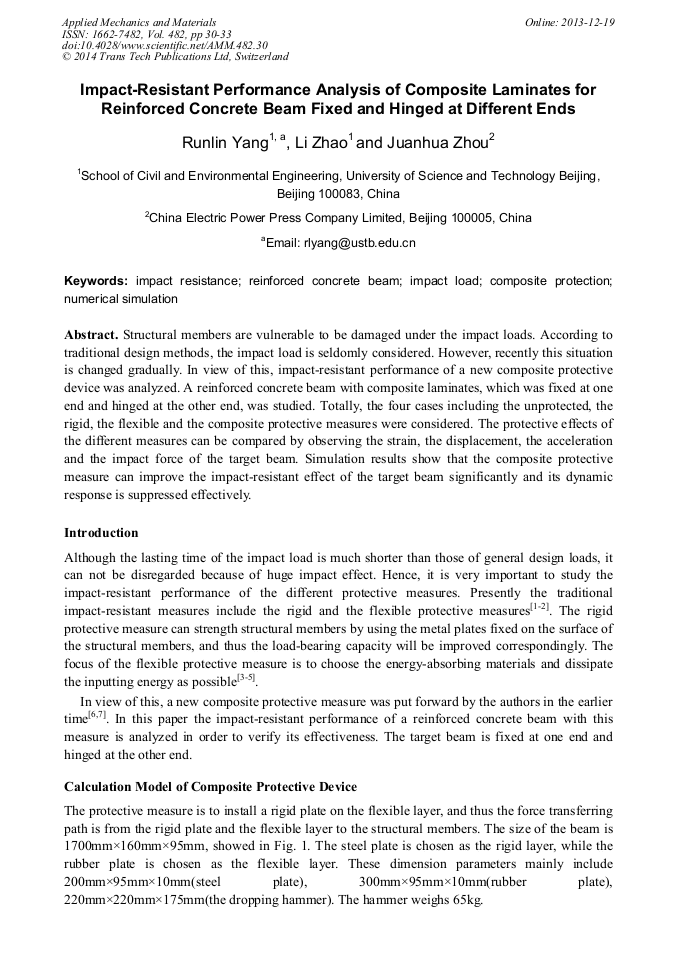

Impact-Resistant Performance Analysis of Composite Laminates for Reinforced Concrete Beam Fixed and Hinged at Different Ends

Abstract:

Structural members are vulnerable to be damaged under the impact loads. According to traditional design methods, the impact load is seldomly considered. However, recently this situation is changed gradually. In view of this, impact-resistant performance of a new composite protective device was analyzed. A reinforced concrete beam with composite laminates, which was fixed at one end and hinged at the other end, was studied. Totally, the four cases including the unprotected, the rigid, the flexible and the composite protective measures were considered. The protective effects of the different measures can be compared by observing the strain, the displacement, the acceleration and the impact force of the target beam. Simulation results show that the composite protective measure can improve the impact-resistant effect of the target beam significantly and its dynamic response is suppressed effectively.

• Periodical: Applied Mechanics and Materials (Volume 482)
• Pages: 30-33
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.482.30
• Online since: December 2013
• Authors: Run Lin Yang*, Li Zhao, Juan Hua Zhou
• Keywords: Composite Protection, Impact Load, Impact Resistance, Numerical Simulation, Reinforced Concrete (RC) Beam

References

[1] Xiuli Du, Weizhang Liao, Zhimin Tian, Lei Shi. State-of-the-art in the Dynamic Responses and Blast Resistant Measures of the Buildings under Explosive Loads [J]. Journal of Beijing University of Technology, 2008, 34(3): 278-287.

[2] Lili Wang, Liming Yang. Fenghua Zhou. On flexible protection and stiff protection for structure safety under explosive/impact loading [J]. Explosion and Shock Waves, 2009, 29(4): 337-344.

[3] Her S C, Liang Y. The finite element analysis of composite laminates and shell structures subjected to low velocity impact [J]. Composite Structures, 2004, 66: 277-285.

DOI: 10.1016/j.compstruct.2004.04.049

[4] Kolopp A, Rivallant S, Bouvet C. Experimental study of sandwich structures as armour against medium-velocity impacts [J]. Composite Structures, 2013, 61: 24–35.

DOI: 10.1016/j.ijimpeng.2013.05.007

[5] Gorfain J E，Key C T. Damage prediction of rib-stiffened composite structures subjected to ballistic impact [J]. International Journal of Impact Engineering, 2013, 57: 159-172.

DOI: 10.1016/j.ijimpeng.2013.02.006

[6] Runlin Yang, Caoming Tang, Xia Meng. Strategy for Explosion-Resistant Calculation and Protection of Building Structures [J]. Building Science, 2009, 25: 82-85.

[7] Ting Nie. Study on Impact-Resistant Performance of Key Structural Members [D]. Beijing: University of Science and Technology Beijing, (2011).
