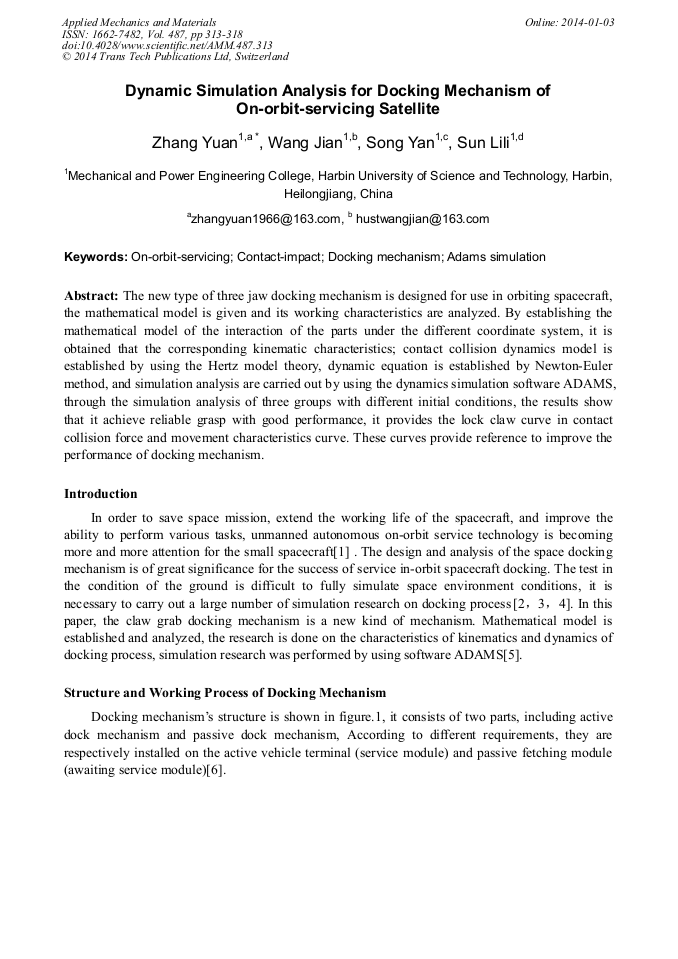

Dynamic Simulation Analysis for Docking Mechanism of On-Orbit-Servicing Satellite

Abstract:

The new type of three jaw docking mechanism is designed for use in orbiting spacecraft, the mathematical model is given and its working characteristics are analyzed. By establishing the mathematical model of the interaction of the parts under the different coordinate system, it is obtained that the corresponding kinematic characteristics; contact collision dynamics model is established by using the Hertz model theory, dynamic equation is established by Newton-Euler method, and simulation analysis are carried out by using the dynamics simulation software ADAMS, through the simulation analysis of three groups with different initial conditions, the results show that it achieve reliable grasp with good performance, it provides the lock claw curve in contact collision force and movement characteristics curve. These curves provide reference to improve the performance of docking mechanism.

• Periodical: Applied Mechanics and Materials (Volume 487)
• Pages: 313-318
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.487.313
• Online since: January 2014
• Authors: Yuan Zhang*, Jian Wang, Yan Song, Li Li Sun
• Keywords: ADAMS Simulation, Contact-Impact, Docking Mechanism, On-Orbit-Servicing

References

[1] HUANG Yi-yong, LI Qiang, Modeling and Simulating of Independent On-orbit Servicing Spacecrafts' Docking Process, Computer Simulation. 28(2011)58-60.

[2] SHI Jun-wei, XU Feng, Docking Mechanism Dynamic Simulation, AEROSPACE SHANGHAI. 28(2011) 17-22.

[3] ZHANG Hua，XIAO Yu-zhi, Study on Synchronization of Space Docking Mechanism's Docking Lock, Journal of Astronautics. 30(2009)312-313.

[4] YOU Chao-lan，HONG Jia-zhen, Three-body & force-element dynamic modelfor docking capture process for androgynous peripheral docking mechanism, Journal of Astronautics. 25(2004) 439-442.

[5] A. Boesso, A. Francesconi, ARCADE small-scale docking mechanism for micro-satellites, Acta Astronautica. 86(2013) 77-87.

DOI: 10.1016/j.actaastro.2013.01.006

[6] Zhao Mingjun, Key technical study of ground six degrees of freedom platform for microsatellite docking mechanism, Harbin, Chinese, (2011).

[7] YU Wenpeng, WANG Wei, Design and Analysis of a Claw-shaped Docking Mechanism, ROBOT. 32(2010)233-240.

DOI: 10.3724/sp.j.1218.2010.00233

[8] ZHANG Da-wei, TIANHao．Quasi Probe-Cone Docking Mechanism Capturing Dynamics Analyses and Parameter Design [J]. Journal of Astronautics, 2008, 29: 1717-1720.

[9] DAI Ming-jun, CHEN Zhi-gang, Numerical Simulation Of Docking Dynamics Of A Docking Simulating Test Facility, ENGINEERING MECHANICS. 23(2006)54-59.

[10] HAN Wei , HUANG YI-yong, Collision Simulation Analysis for Flexible Probe-Cone Docking Mechanism, AEROSPACE SHANGHAI. 29(2012)49-53.
