A New Kind of Beer Bottle Mouth Defect Recognition Method Based on Vision

Abstract:

According to the beer bottle mouth defect recognition problem on modern production line, a new recognition method based on the combination the Hough Transform and the Midpoint circle algorithm was put forward. Firstly, extract edge pixels on beer bottle mouth mage and transform them into Hough space, which was to draw circles at each pixel location with bottle mouth radius. According to the circular symmetry, only 1/8 circle pixels were needed to draw circles, which were worked out by the Midpoint Circle Algorithm. The circles there overlapped each other to vote. Secondly, took the position with the highest votes as the center of bottle mouth and determined the bottle circular area. Divided the area into regions. Finally, count out the number of image pixels in each region and recognition beer bottle defect. In this paper detailed implementation steps with detection results were given. Experiments and its analysis shows: the algorithm can recognition beer bottle mouth defect correctly and quickly.

You might also be interested in these eBooks

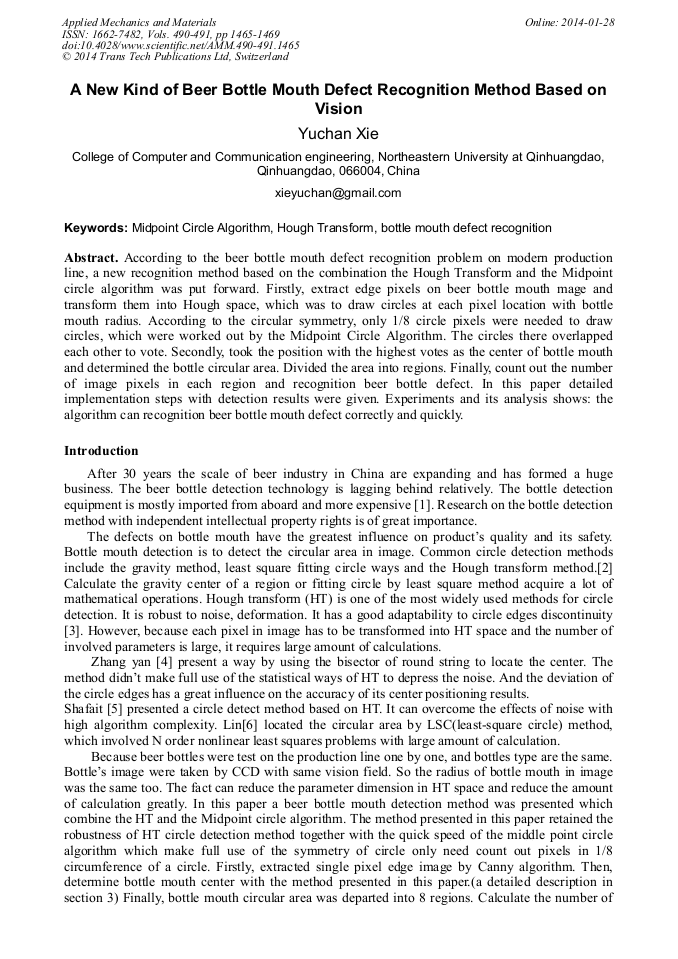

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 490-491)

Pages:

1465-1469

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.490-491.1465

Citation:

Cite this paper

Online since:

January 2014

Authors:

Yu Chan Xie

Keywords:

Bottle Mouth Defect Recognition, Hough Transform (HT), Midpoint Circle Algorithm

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.J. Zhang, D.Q. Chen, Y.Y. XIN. Detection Device of PET Bottle and Liquid Based on Image. Light Industry Machinery . Vol. 31(2) (2013), pp.71-73.

Google Scholar

[2] L. Luo, Z. Wang, H. Wei. Design of Z Deformity of Coke Bottle Mouth Inspection System. Computer Measurement & Control. Vol. 16(4) (2008), pp.449-451.

Google Scholar

[3] P.V.C. Hough. A Method and Means for Recognizing Complex. U.S. Patent 3069654. (1962).

Google Scholar

[4] Y. Zhang, C. Liu. A Rapid Defect Detecting Algorithm of Bottle's Rim Based on Central Location and Three Circle Method. Computer Technology and Development Vol. 19(6)(2006), pp.243-249.

Google Scholar

[5] F. Shafait S.M. Imran，S. Klette-matzat Fault Detection and Localization in Empty Water Bottles Through Machine Vision Proc of E-tech. Piscataway. IEEE Press (2004), pp.30-34.

DOI: 10.1109/etech.2004.1353840

Google Scholar

[6] C. S Lin, L. w. Lue. An Image System for Fast Positioning and Accuracy Inspection of Ball Grid Array Boards. Microelectronics Reliability, Vol. 41 (1) (2001) p, 119-128.

DOI: 10.1016/s0026-2714(00)00213-4

Google Scholar

[7] X. L. Zhu, C H. Gao, B.W. He, ect. An Improved Method of Hough Transform Circle Detection Based on the Midpoint Circle-Producting Algorithm. Journal of Engineering Graphics, Vol. (6) (2010), p, 29-33.

Google Scholar
