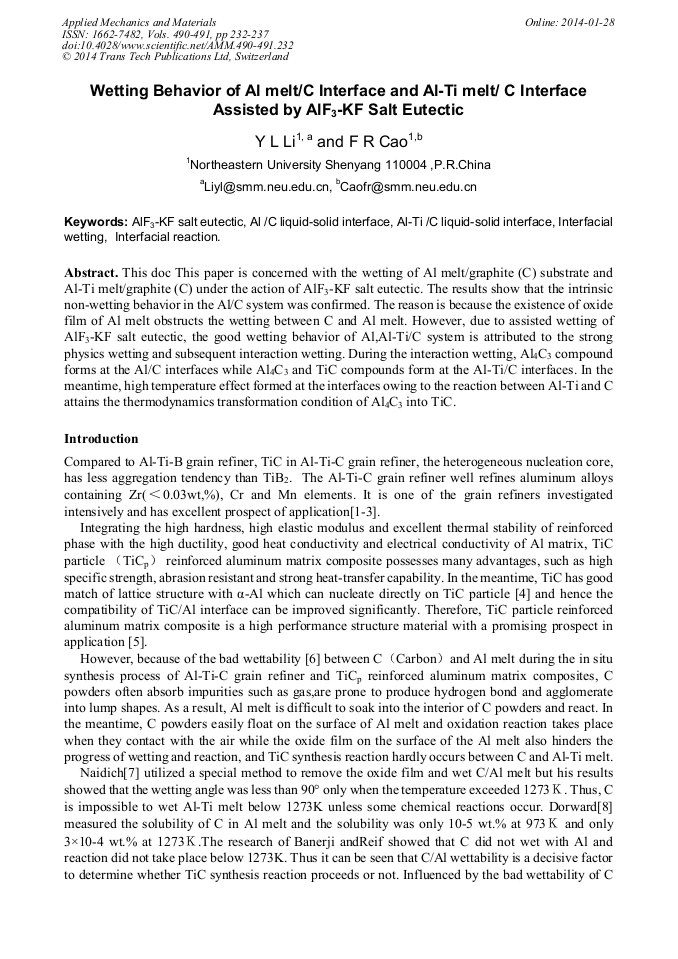

Wetting Behavior of Al Melt/C Interface and Al-Ti Melt/C Interface Assisted by AlF₃-KF Salt Eutectic

Abstract:

This doc This paper is concerned with the wetting of Al melt/graphite (C) substrate and Al-Ti melt/graphite (C) under the action of AlF₃-KF salt eutectic. The results show that the intrinsic non-wetting behavior in the Al/C system was confirmed. The reason is because the existence of oxide film of Al melt obstructs the wetting between C and Al melt. However, due to assisted wetting of AlF₃-KF salt eutectic, the good wetting behavior of Al,Al-Ti/C system is attributed to the strong physics wetting and subsequent interaction wetting. During the interaction wetting, Al₄C₃ compound forms at the Al/C interfaces while Al₄C₃ and TiC compounds form at the Al-Ti/C interfaces. In the meantime, high temperature effect formed at the interfaces owing to the reaction between Al-Ti and C attains the thermodynamics transformation condition of Al₄C₃ into TiC.

• Periodical: Applied Mechanics and Materials (Volumes 490-491)
• Pages: 232-237
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.490-491.232
• Online since: January 2014
• Authors: Ying Long Li, F.R. Cao
• Keywords: Al/C Liquid-Solid Interface, AlF₃-KF Salt Eutectic, Al-Ti/C Liquid-Solid Interface, Interfacial Reaction, Interfacial Wetting

References

[1] D. Qiu, J.A. Taylor and M.X. Zhang: Mater. Sci. Eng. A, Vol. 41A (2010), p.3412.

[2] Y. Lina , X.F. Liu, Z.Q. Wang and X.F. Bian: J. Mater. Sci., Vol. 40(2005), p.3865.

[3] P. Moldovan and G. Popescu: Alum. Alloy, Vol. 12(2004), p.59.

[4] X.W. Zeng, W.G. Zhang, N. Wei, R.P. Liu and M.Z. Ma: Mater. Sci. Eng. A, Vol. 443 (2007), p.224.

[5] B. Ranjit: Indian. Inst. Metal., Vol. 624 (2009), p.391.

[6] N. Eustathopoulos, J.C. Joud, P. Desre and J.M. Hicter: J. Mater. Sci., Vol. 9(1974), p.1233.

[7] Y.V. Naidich and Y.N. Chubashov: Metal. Trans. A, Vol. 21A(1990), p.255.

[8] N. Eustathopoulos and J.C. Joud: Mater. Sci. Eng. A, Vol. 9(1974), p.1233.

[9] V.H. Lopez and A.R. Kennedy: Journal of Colloid and Interface Science, Vol. 298(2006), p.356.

[10] W. Villanueva, W.J. Boettinger, G.B. Mcfaddenv and J.A. Warren: Acta Materialia, Vol. 60(2012).

[1] (If square brackets are not available, slashes may be used instead, e. g. /2/. ) Two or more references at a time may be put in one set of brackets [3, 4]. The references are to be numbered in the order in which they are cited in the text and are to be listed at the end of the contribution under a heading References, see our example below. Summary On your CD, please indicate the format and word processor used. Please also provide your phone number, fax number and e-mail address for rapid communication with the publisher. Please always send your CD along with a hard copy that must match the CD's content exactly. If you follow the foregoing, your paper will conform to the requirements of the publisher and facilitate a problem-free publication process. References.

[1] Dj.M. Maric, P.F. Meier and S.K. Estreicher: Mater. Sci. Forum Vol. 83-87 (1992), p.119.

[2] M.A. Green: High Efficiency Silicon Solar Cells (Trans Tech Publications, Switzerland 1987).

[3] Y. Mishing, in: Diffusion Processes in Advanced Technological Materials, edtied by D. Gupta Noyes Publications/William Andrew Publising, Norwich, NY (2004), in press.

[4] G. Henkelman, G. Johannesson and H. Jónsson, in: Theoretical Methods in Condencsed Phase Chemistry, edited by S.D. Schwartz, volume 5 of Progress in Theoretical Chemistry and Physics, chapter, 10, Kluwer Academic Publishers (2000).

[5] R.J. Ong, J.T. Dawley and P.G. Clem: submitted to Journal of Materials Research (2003).

[6] P.G. Clem, M. Rodriguez, J.A. Voigt and C.S. Ashley, U.S. Patent 6, 231, 666. (2001).

[7] Information on http: /www. weld. labs. gov. cn.
