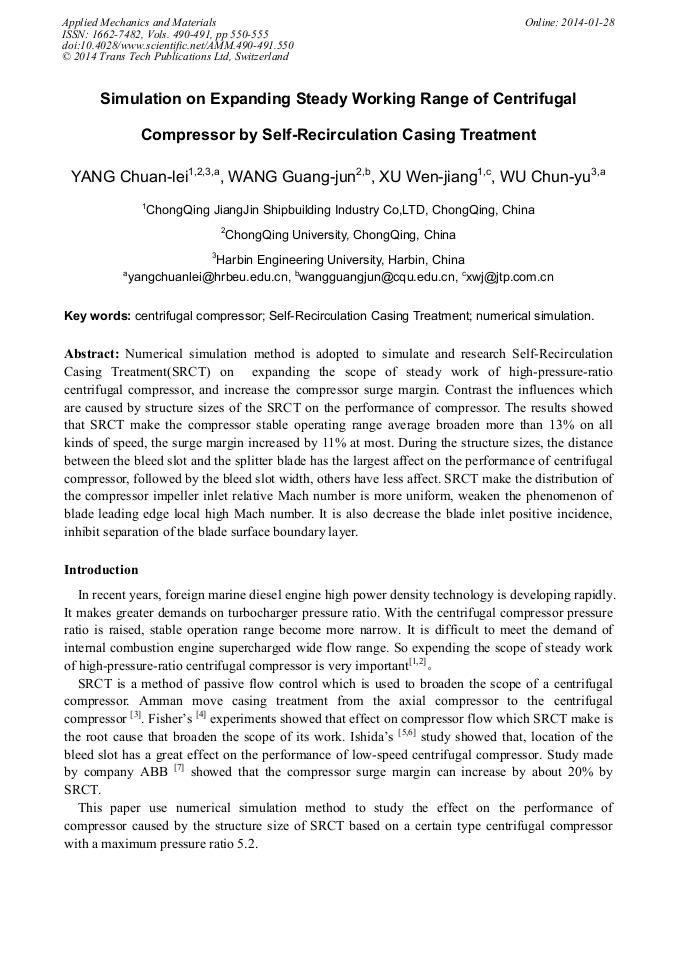

Simulation on Expanding Steady Working Range of Centrifugal Compressor by Self-Recirculation Casing Treatment

Abstract:

Numerical simulation method is adopted to simulate and research Self-Recirculation Casing Treatment (SRCT) on expanding the scope of steady work of high-pressure-ratio centrifugal compressor, and increase the compressor surge margin. Contrast the influences which are caused by structure sizes of the SRCT on the performance of compressor. The results showed that SRCT make the compressor stable operating range average broaden more than 13% on all kinds of speed, the surge margin increased by 11% at most. During the structure sizes, the distance between the bleed slot and the splitter blade has the largest affect on the performance of centrifugal compressor, followed by the bleed slot width, others have less affect. SRCT make the distribution of the compressor impeller inlet relative Mach number is more uniform, weaken the phenomenon of blade leading edge local high Mach number. It is also decrease the blade inlet positive incidence, inhibit separation of the blade surface boundary layer.

• Periodical: Applied Mechanics and Materials (Volumes 490-491)
• Pages: 550-555
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.490-491.550
• Online since: January 2014
• Authors: Chuan Lei Yang*, Guang Jun Wang, Wen Jiang Xu, Chun Yu Wu
• Keywords: Centrifugal Compressor, Numerical Simulation, Self-Recirculation Casing Treatment

References

[1] Mohseni A, Goldhan E, Braembussche R A. Novel IGV designs for centrifugal compressors and their interaction with the impeller. ASME paper, GT2010-23048, (2010).

DOI: 10.1115/gt2010-23048

[2] M T Barton, M L Mansour, J S Liu, et al. Numerical Optimization of a Vaned Shroud Design for Increased Operability Margin in Modern Centrifugal Compressors [J]. Journal of Turbo-machinery, 2006, 128(4): 627-631.

DOI: 10.1115/1.2187526

[3] Amman C A, Nordensen G E, Skellenger G D. Casing modification for increasing the surge margin of a centrifugal compressor in an automotive turbine engine. Journal of engineering for power, 1975, 97: 329-336.

DOI: 10.1115/1.3445996

[4] Fisher F B. Application of map width enhancement devices to turbocharger compressor stages, SAE paper No. 880794, (1988).

DOI: 10.4271/880794

[5] Ishida M, Sakaguchi D, Ueki H. Optimization of inlet ring groove arrangement for suppression of unsteable flow in a centrifugal impeller. ASME Paper, (2005).

DOI: 10.1115/gt2005-68675

[6] Ishida M, Surana D, Ueki H, et al. Suppression of unstable flow at small flow rates in a centrifugal blower by controlling tip leakage flow and reverse flow. ASME Journal of Turbo -machinery, 2005, 127: 76-83.

DOI: 10.1115/1.1811092

[7] Guleren K M, Turan A, Pinarbasi A. Large-eddy simulation of the flow in a low speed centrifugal compressor. International Journal for Numerical Methods in Fluids, 2008, 56(8): 1271-1280.

DOI: 10.1002/fld.1741

[8] Reza A T, Tousi AM, Tourani A. Comparison of turbulence methods in CFD analysis of compressible flows in radial turbo machines. Aircraft Engineering and Aerospace Technology, 2008, 80(6): 657-665.

DOI: 10.1108/00022660810911608
