Development of the Low Cost Harmonic and Power Instrument by Using Fourier Series Method with Microcontroller

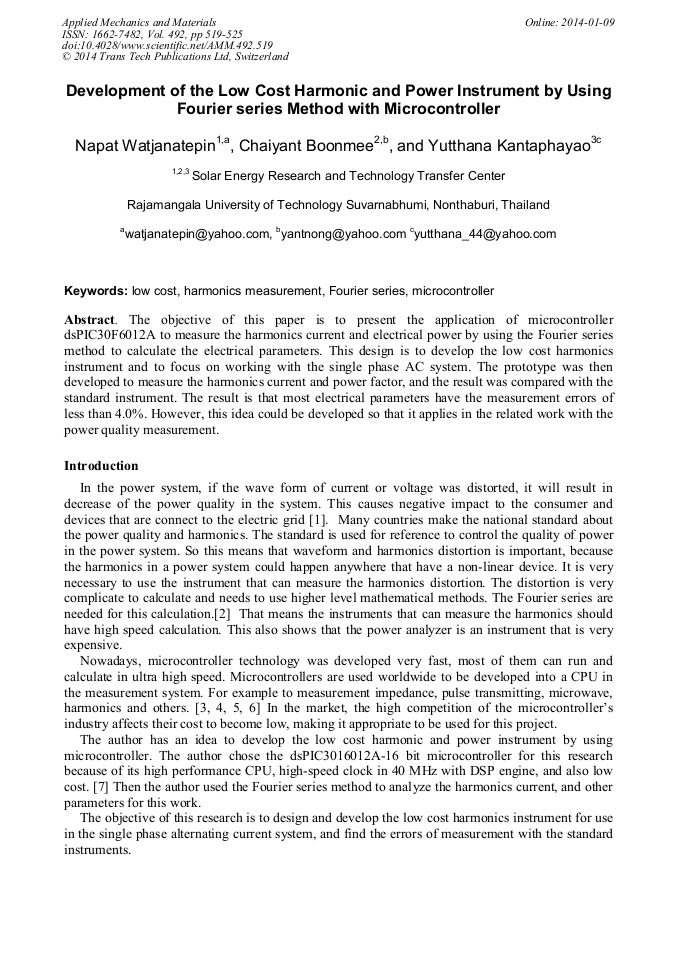

Article Preview

Abstract:

The objective of this paper is to present the application of microcontroller dsPIC30F6012A to measure the harmonics current and electrical power by using the Fourier series method to calculate the electrical parameters. This design is to develop the low cost harmonics instrument and to focus on working with the single phase AC system. The prototype was then developed to measure the harmonics current and power factor, and the result was compared with the standard instrument. The result is that most electrical parameters have the measurement errors of less than 4.0%. However, this idea could be developed so that it applies in the related work with the power quality measurement.
