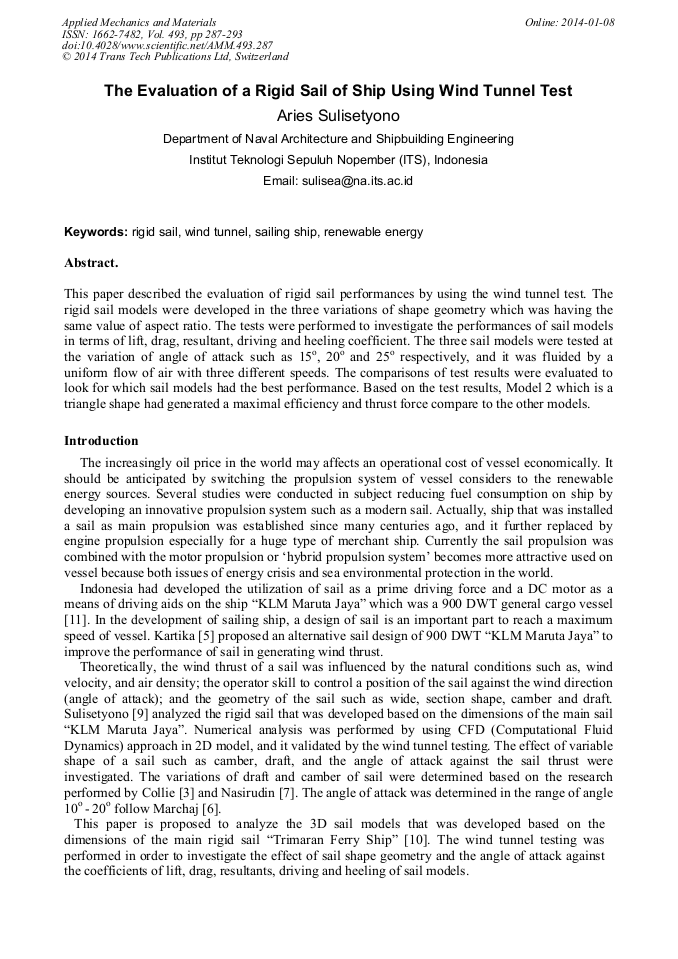

The Evaluation of a Rigid Sail of Ship Using Wind Tunnel Test

Abstract:

This paper described the evaluation of rigid sail performances by using the wind tunnel test. The rigid sail models were developed in the three variations of shape geometry which was having the same value of aspect ratio. The tests were performed to investigate the performances of sail models in terms of lift, drag, resultant, driving and heeling coefficient. The three sail models were tested at the variation of angle of attack such as 15^o, 20^o and 25^o respectively, and it was fluided by a uniform flow of air with three different speeds. The comparisons of test results were evaluated to look for which sail models had the best performance. Based on the test results, Model 2 which is a triangle shape had generated a maximal efficiency and thrust force compare to the other models.Keywords: rigid sail, wind tunnel, sailing ship, renewable energy

• Periodical: Applied Mechanics and Materials (Volume 493)
• Pages: 287-293
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.493.287
• Online since: January 2014
• Authors: Aries Sulisetyono
• Keywords: Renewable Energy, Rigid Sail, Sailing Ship, Wind Tunnel

References

[1] Abbot, I.H. and Doenhoff, A.E., Theory of Wing Section, the McGraw-Hill Book Company, Canada, (1959).

[2] Anwar, A.S., Tugas Akhir, Analisa Teknis Pemasangan Layar Sebagai Alat Pengerak Bantu Pada Kapal General Cargo KM Belitung, Jurusan Teknik Perkapalan, ITS Surabaya, (2010).

[3] Collie, S.J., Application of computational Fluid Dynamics to Two Dimensional Downwind Sail Flows, Thesis, Departement of Mechanical Engineering andEngineering Science, University of Auckland New Zealand, (2006).

[4] Fujiwara, et all, On Aerodynamic Characteristics of a Hybrid Sail with Square Soft Sail, National Maritime Research Institute, Tokyo, (2003).

[5] Kartika, C.A., Analisis Teknis Perencanaan Layar sebagai Penggerak Utama pada KLM Maruta Jaya 900 DWT, Tugas Akhir, Jurusan Teknik Sistem Perkapalan, ITS Surabaya, (1996).

[6] Marchaj C. A., Sailing Theory and Practice, New York, United State, (1982).

[7] Nasirudin, A, Desain Layar Simulasi CFD, Tugas Akhir, Jurusan Teknik Perkapalan, ITS Surabaya, (2002).

[8] Pike, D., Motor Sailing, Adlard Coules Nautical, London, (1993).

[9] Sulisetyono, A et all, Wind Sail Analysis Using Computational Fluid Dynamics Simulation, The International Conference on Marine Technology (MARTEC), BUET, Dhaka, Bangladesh, (2010).

[10] Sulisetyono, A., Seakeeping Analysis of The Trimaran Ferry Ship in Short Crested Sea for A case of East Java Water Condition, International Conference : ICSOT : Development in Ship Design dan Construction, RINA, Ambon (2012).

DOI: 10.3940/rina.icsotin.2012.16

[11] Wiriadidjaja, S., Pengembangan Kapal Layar Modern untuk Menunjang Perdagangan antar Pulau di Indonesia, ITS Surabaya, (1997).
