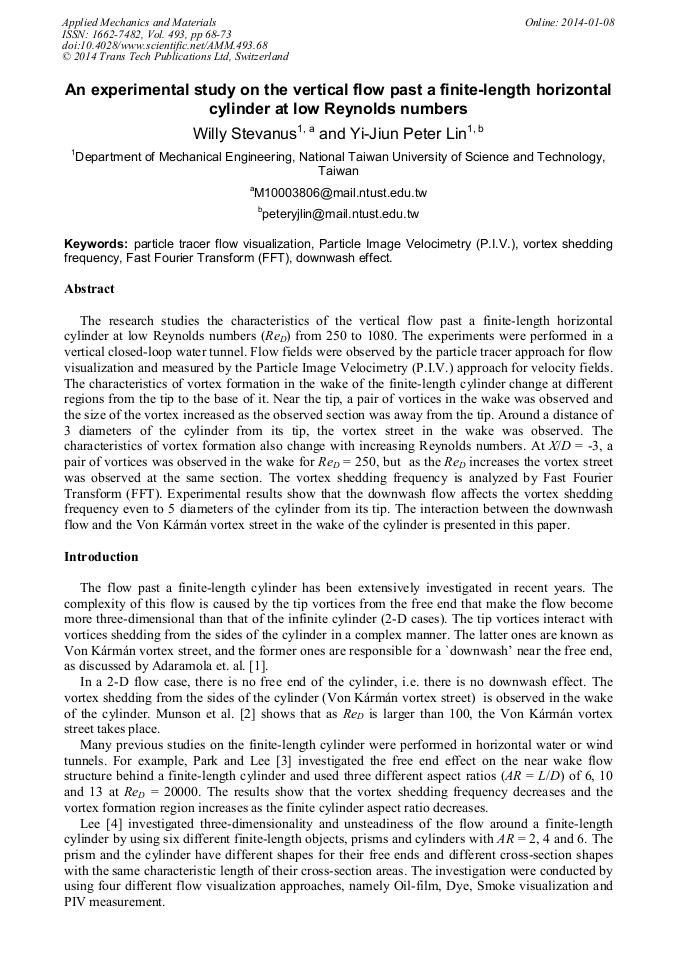

An Experimental Study on the Vertical Flow Past a Finite-Length Horizontal Cylinder at Low Reynolds Numbers

Abstract:

The research studies the characteristics of the vertical flow past a finite-length horizontal cylinder at low Reynolds numbers (Re_D) from 250 to 1080. The experiments were performed in a vertical closed-loop water tunnel. Flow fields were observed by the particle tracer approach for flow visualization and measured by the Particle Image Velocimetry (P.I.V.) approach for velocity fields. The characteristics of vortex formation in the wake of the finite-length cylinder change at different regions from the tip to the base of it. Near the tip, a pair of vortices in the wake was observed and the size of the vortex increased as the observed section was away from the tip. Around a distance of 3 diameters of the cylinder from its tip, the vortex street in the wake was observed. The characteristics of vortex formation also change with increasing Reynolds numbers. At X/D = -3, a pair of vortices was observed in the wake for Re_D = 250, but as the Re_D increases the vortex street was observed at the same section. The vortex shedding frequency is analyzed by Fast Fourier Transform (FFT). Experimental results show that the downwash flow affects the vortex shedding frequency even to 5 diameters of the cylinder from its tip. The interaction between the downwash flow and the Von Kármán vortex street in the wake of the cylinder is presented in this paper.

• Periodical: Applied Mechanics and Materials (Volume 493)
• Pages: 68-73
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.493.68
• Online since: January 2014
• Authors: Willy Stevanus, Yi Jiun Peter Lin
• Keywords: Downwash Effect, Fast Fourier Transform (FFT), Particle Image Velocimetry (PIV), Particle Tracer Flow Visualization, Vortex Shedding Frequency

References

[1] M.S. Adaramola, D. Sumner, D.J. Bergstrom, Effect of velocity ratio on the streamwise vortex structures in the wake of the stack, Journal of Fluids and Structures 26 (2010) 1-18.

DOI: 10.1016/j.jfluidstructs.2009.07.007

[2] B.R. Munson, D.F. Young, T.H. Okiishi, W.W. Huebsch, Fundamentals of fluid mechanics, sixth ed., John Wiley & Sons, Asia, p.501.

[3] C. -W. Park, S. -J. Lee, Free end effects on the near wake flow structure behind a finite circular cylinder, Journal of Wind Engineering and Industrial Aerodynamics 88 (2000) 231-246.

DOI: 10.1016/s0167-6105(00)00051-9

[4] H. -H Lee, An experimental study on the free-end downwash effect to Karman-type vortex shedding from a finite cylinder, Ph. D dissertation, National Cheng Kung University, (2011).

[5] J.A. Cadzow, H.F.V. Landingham, Signals, systems, and transforms, Prentice-Hall, Inc., Englewood Cliffs, New Jersey, (1985).

[6] J.H. Lienhard, Synopsis of lift, drag, and vortex frequency data for rigid circular cylinders. Bulletin 300 (1966), Washington State University.

[7] M. Sarioglu, T. Yavuz, Vortex shedding from circular and rectangular cylinders placed horizontally in a turbulent flow, Turk. J. Engin. Environ. Sci. 24 (2000) 217-228.

[8] W. Stevanus, An experimental study on the vertical flow past a finite-length horizontal cylinder at low Reynolds numbers, Master Thesis, National Taiwan University of Science and Technology, (2013).

DOI: 10.4028/www.scientific.net/amm.493.68
