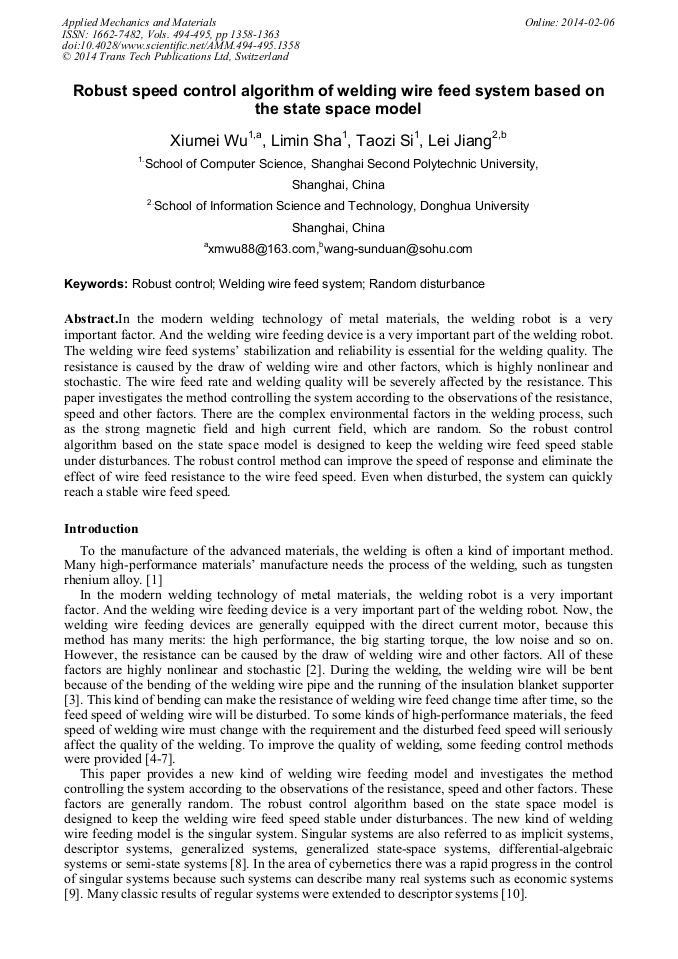

Robust Speed Control Algorithm of Welding Wire Feed System Based on the State Space Model

Abstract:

In the modern welding technology of metal materials, the welding robot is a very important factor. And the welding wire feeding device is a very important part of the welding robot. The welding wire feed systems stabilization and reliability is essential for the welding quality. The resistance is caused by the draw of welding wire and other factors, which is highly nonlinear and stochastic. The wire feed rate and welding quality will be severely affected by the resistance. This paper investigates the method controlling the system according to the observations of the resistance, speed and other factors. There are the complex environmental factors in the welding process, such as the strong magnetic field and high current field, which are random. So the robust control algorithm based on the state space model is designed to keep the welding wire feed speed stable under disturbances. The robust control method can improve the speed of response and eliminate the effect of wire feed resistance to the wire feed speed. Even when disturbed, the system can quickly reach a stable wire feed speed.

• Periodical: Applied Mechanics and Materials (Volumes 494-495)
• Pages: 1358-1363
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.494-495.1358
• Online since: February 2014
• Authors: Xiu Mei Wu*, Li Min Sha, Tao Zi Si, Lei Jiang
• Keywords: Random Disturbance, Robust Control, Welding Wire Feed System

References

[1] SHA Deshang, LIAO Xiaozhong, SHAN Lijun, BAO Yunjie. Fully digitalized control strategy of wire feed motor. Transactions of the China Welding Institution. 2009 , 30(3): 49-52.

[2] FAN Ding, GUO Jin-chang, SHI Yu, HUANG Jian-kang. Wire feeding control system for digital welding. Journal of Lanzhou University of Technology. 2011, 37(6) : 15-19.

[3] LI Zhong you, ZHANG Guang xian, CHEN Mao ai, LIU Xiu zhong. Rotation speed control technique by electromotive force feedback sensed from wire feed motor]. Journal of Shandong University of Technology. 2002, 32(2) : 105-109.

[4] LI Chun-shan, WANG Jing, LIU Gui-fang, AN Feng-mei. Design and simulation on welding wire feed control system based on genetic algorithms. 2007, 7(3): 110-112.

[5] DU Hongwang, LIU Zheng, ZHAO Yanan, XU Jianwei, LIU Gang. Fuzzy PI speed control for welding wire feed system based on state observer and feedforward. Transactions of the China Welding Institution. 2010, 31(1) : 85-90.

[6] XIE Sheng-mian, HAN Yu-min, WU Kai-yuan, ZHONG Rong-bai, ZHANG Wei-min, WANG Zhuo. Research and implementation of the embedded communication system between twin-wire welding power supplies and wire feeders. Welding Technology. 2011, 40(10) : 38-43.

[7] HUANG Shi-sheng, SUN De-yi, LI Peng, HE Kuan-fang. Research of Wire Feeder Control System based on TMSLF2407A&CAN. Power Electronics. 2009, 43(1): 55-57.

[8] DAI L. Singular Control Systems. Berlin: Springer Verlagh, 1989: 82-83.

[9] LEWIS F. L. A survey of linear singular systems. Circuits, Syst. Signal Processing, 1986, Vol. 5: 3-36.

[10] XU, S., JAMES L. Robust stability for uncertain discrete singular systems with state delay. Asian Journal of Control. 2003, 5(3): 399-405.

DOI: 10.1111/j.1934-6093.2003.tb00132.x

[11] XU, S., JAMES L. Robust stability and stabilization of discrete singular systems: An equivalent characterization. IEEE Transactions on Automatic Control. 2004, 49(4): 568-573.

DOI: 10.1109/tac.2003.822854

[12] WU, Z., ZHOU W. Delay-dependent robust stabilization for uncertain singular systems with discrete and distributed delays. Journal of Control Theory and Applications. 2008, 6(2): 171-176.

DOI: 10.1007/s11768-008-6166-3

[13] PHILIP L , TIMO R. H-control for descriptor systems - A structured matrix pencils approach. Proceedings of the IEEE Conference on Decision and Control. Honeywell, 2009: 103-108.

[14] PETERSEN, I. Stabilization algorithm for a class of uncertain linear systems. Systems and Control Letters. 1987, 8(4): 351-357.

DOI: 10.1016/0167-6911(87)90102-2

[15] LIAN Jie, ZHAO Jun. Robust H-infinity sliding mode control for a class of uncertain switched linear systems. Control Theory and Applications. 2008, 25(3): 492-496.

DOI: 10.1007/s11768-010-8007-4
