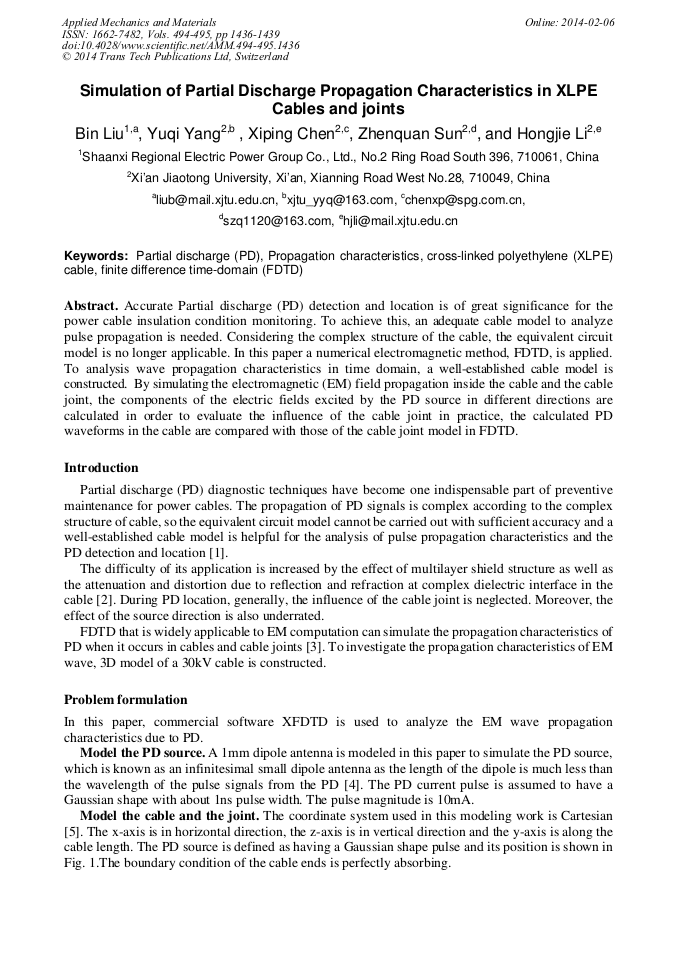

Simulation of Partial Discharge Propagation Characteristics in XLPE Cables and Joints

Abstract:

Accurate Partial discharge (PD) detection and location is of great significance for the power cable insulation condition monitoring. To achieve this, an adequate cable model to analyze pulse propagation is needed. Considering the complex structure of the cable, the equivalent circuit model is no longer applicable. In this paper a numerical electromagnetic method, FDTD, is applied. To analysis wave propagation characteristics in time domain, a well-established cable model is constructed. By simulating the electromagnetic (EM) field propagation inside the cable and the cable joint, the components of the electric fields excited by the PD source in different directions are calculated in order to evaluate the influence of the cable joint in practice, the calculated PD waveforms in the cable are compared with those of the cable joint model in FDTD.

• Periodical: Applied Mechanics and Materials (Volumes 494-495)
• Pages: 1436-1439
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.494-495.1436
• Online since: February 2014
• Authors: Bin Liu*, Yu Qi Yang, Xi Ping Chen, Zhen Quan Sun, Hong Jie Li
• Keywords: Cross-Linked Polyethylene (XLPE) Cable, Finite Difference Time Domain (FDTD), Partial Discharge (PD), Propagation Characteristics

References

[1] Ahmed, N.H.; Srinivas, N. N., On-line partial discharge detection in cables, Electrical Insulation and Dielectric Phenomena, 1997. IEEE 1997 Annual Report., Conference on , vol. 1, no., p.214, 217 vol. 1, 19-22.

DOI: 10.1109/ceidp.1997.634597

[2] Veen, J.; van der Wiellen, P.C.J.M., The application of matched filters to PD detection and localization, Electrical Insulation Magazine, IEEE , vol. 19, no. 5, p.20, 26, Sept. -Oct. (2003).

DOI: 10.1109/mei.2003.1238714

[3] Okazima, N.; Baba, Y.; Nagaoka, N.; Ametani, A.; Temma, K.; Shimomura, T., Propagation Characteristics of Power Line Communication Signals Along a Power Cable Having Semiconducting Layers, Electromagnetic Compatibility, IEEE Transactions on , vol. 52, no. 3, p.756, 769, Aug. (2010).

DOI: 10.1109/temc.2010.2046171

[4] Hoshino T., Hikita M., Okubo H. 1997. Radiation mechanism of electromagnetic wave from partial discharge analyzed by half-wave dipole antenna model. In Proceedings of the 10th International Symposium on High Voltage Engineering, Canada, August 1997, 25-29.

DOI: 10.1002/(sici)1520-6416(199903)126:4<40::aid-eej5>3.0.co;2-1

[5] Hongbo Liu; Huamao Zhan; Chengrong Li; Jingchun Wang, Simulation of partial discharge pulse propagation in 110kV XLPE cable, Condition Monitoring and Diagnosis (CMD), 2012 International Conference on , vol., no., p.663, 666, 23-27 Sept. (2012).

DOI: 10.1109/cmd.2012.6416233

[6] Pommerenke, D.; Jobava, R.; Heinrich, R., Numerical simulation of partial discharge propagation in cable joints using the finite difference time domain method, Electrical Insulation Magazine, IEEE , vol. 18, no. 6, p.6, 11.

DOI: 10.1109/mei.2002.1161454
