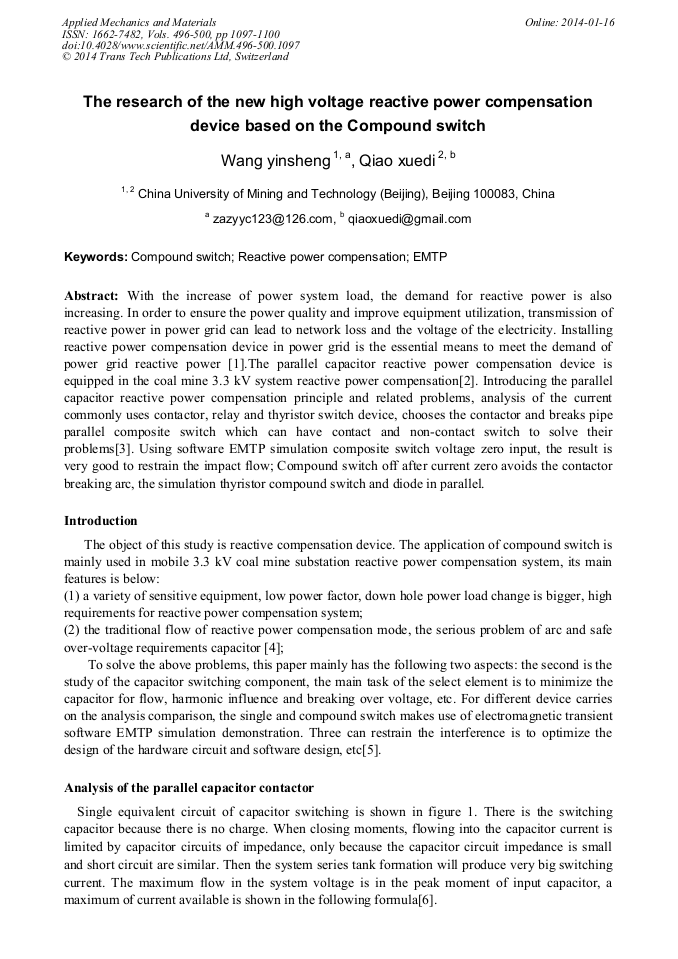

The Research of the New High Voltage Reactive Power Compensation Device Based on the Compound Switch

Abstract:

With the increase of power system load, the demand for reactive power is also increasing. In order to ensure the power quality and improve equipment utilization, transmission of reactive power in power grid can lead to network loss and the voltage of the electricity. Installing reactive power compensation device in power grid is the essential means to meet the demand of power grid reactive power [1].The parallel capacitor reactive power compensation device is equipped in the coal mine 3.3 kV system reactive power compensation [2]. Introducing the parallel capacitor reactive power compensation principle and related problems, analysis of the current commonly uses contactor, relay and thyristor switch device, chooses the contactor and breaks pipe parallel composite switch which can have contact and non-contact switch to solve their problems [3]. Using software EMTP simulation composite switch voltage zero input, the result is very good to restrain the impact flow; Compound switch off after current zero avoids the contactor breaking arc, the simulation thyristor compound switch and diode in parallel.

• Periodical: Applied Mechanics and Materials (Volumes 496-500)
• Pages: 1097-1100
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.496-500.1097
• Online since: January 2014
• Authors: Yin Sheng Wang, Xue Di Qiao
• Keywords: Compound Switch, EMTP, Reactive Power Compensation

References

[1] Charles S. Walker. Capacitance Inductance and Crosstalk Analysis. Mass, (1990).

[2] Danil L, Goldwirthy. A Linearized Model for Mov-protected Series Capcitors, IEEE Transactions on power System . Vol. 22, No. 4, November (1997).

[3] Nandi Set al . Two novel schemes suitable for static switching of three-phrase delta-connected capacitor banks with minimum surge current . IEEE Trans on. Industry Application, 33(5), 1997: 1348～1354.

DOI: 10.1109/28.633816

[4] Xing Yahui, Yan ping, Zhao Jun: Selecting the faulty line through correlation of zero-sequence currents in non-solid earthed net work[A]. 2009aAsia-Pacific Power and Energy Engineering Conference[C]. Piscataway, NIUSA: IEEE, 2009, 1-4.

DOI: 10.1109/appeec.2009.4918734

[5] Jung C K, Lee J B, Wang X H: et al wavelet based noise cancellation technique for fault location on underground power cables[J]. Electric Power Systems Research, 2007, 77(10): 1 349 -1 362.

DOI: 10.1016/j.epsr.2006.10.005

[6] K in Chuwan: et al A novel fault-detection technique of high-impedance arcing faults in transmission lines using the wavelet transform[J]. IEEE Transactions on power Delivery, 2002, 10(4): 921-929.

DOI: 10.1109/tpwrd.2002.803780
