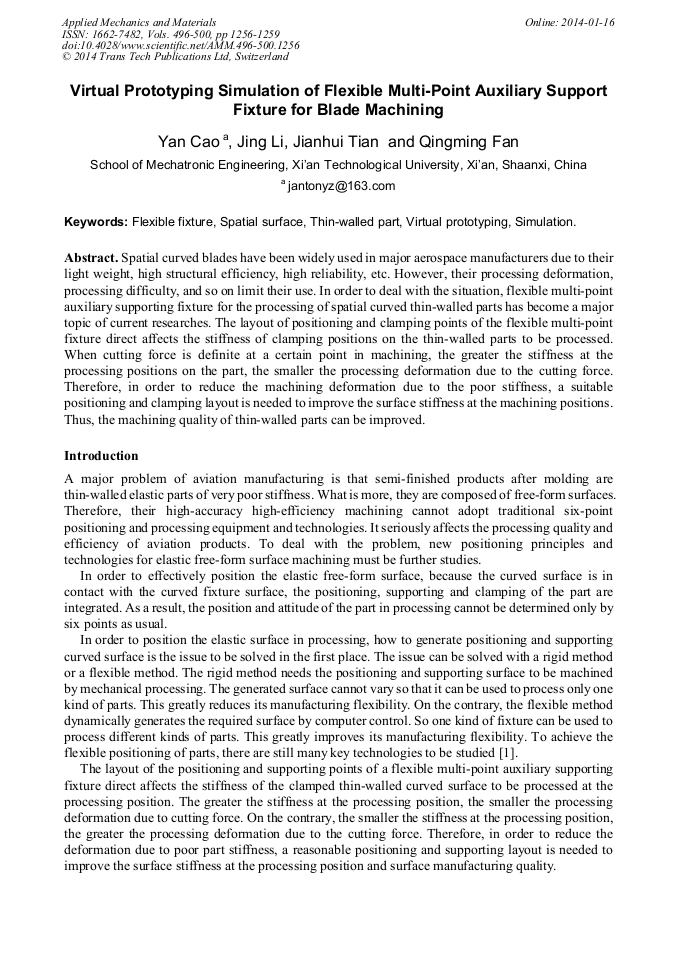

Virtual Prototyping Simulation of Flexible Multi-Point Auxiliary Support Fixture for Blade Machining

Abstract:

Spatial curved blades have been widely used in major aerospace manufacturers due to their light weight, high structural efficiency, high reliability, etc. However, their processing deformation, processing difficulty, and so on limit their use. In order to deal with the situation, flexible multi-point auxiliary supporting fixture for the processing of spatial curved thin-walled parts has become a major topic of current researches. The layout of positioning and clamping points of the flexible multi-point fixture direct affects the stiffness of clamping positions on the thin-walled parts to be processed. When cutting force is definite at a certain point in machining, the greater the stiffness at the processing positions on the part, the smaller the processing deformation due to the cutting force. Therefore, in order to reduce the machining deformation due to the poor stiffness, a suitable positioning and clamping layout is needed to improve the surface stiffness at the machining positions. Thus, the machining quality of thin-walled parts can be improved.

• Periodical: Applied Mechanics and Materials (Volumes 496-500)
• Pages: 1256-1259
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.496-500.1256
• Online since: January 2014
• Authors: Yan Cao*, Jing Li, Jian Hui Tian, Qing Ming Fan
• Keywords: Flexible Fixture, Simulation, Spatial Surface, Thin-Walled Part, Virtual Prototyping

References

[1] Y.W. Men and K. Zhou: Manufacturing Technology & Machine No. 10 (2008), p.113.

[2] H.B. Liu: Aircraft Space Curved Thin-walled Flexible Tooling Design and Clamping Deformation analysis. Shenyang Aerospace University, (2012).

[3] K. Zhou: Aeronautical Manufacturing Technology No. 3 (2012), p.37.

[4] J.G. Zhao: Clamping Optimization Method Mechanical Manufacturing and Automation. Donghua University, (2010).

[5] J. B. Lu: Aircraft Large Thin-walled Flexible Process Equipment System. Tsinghua University, (2010).
