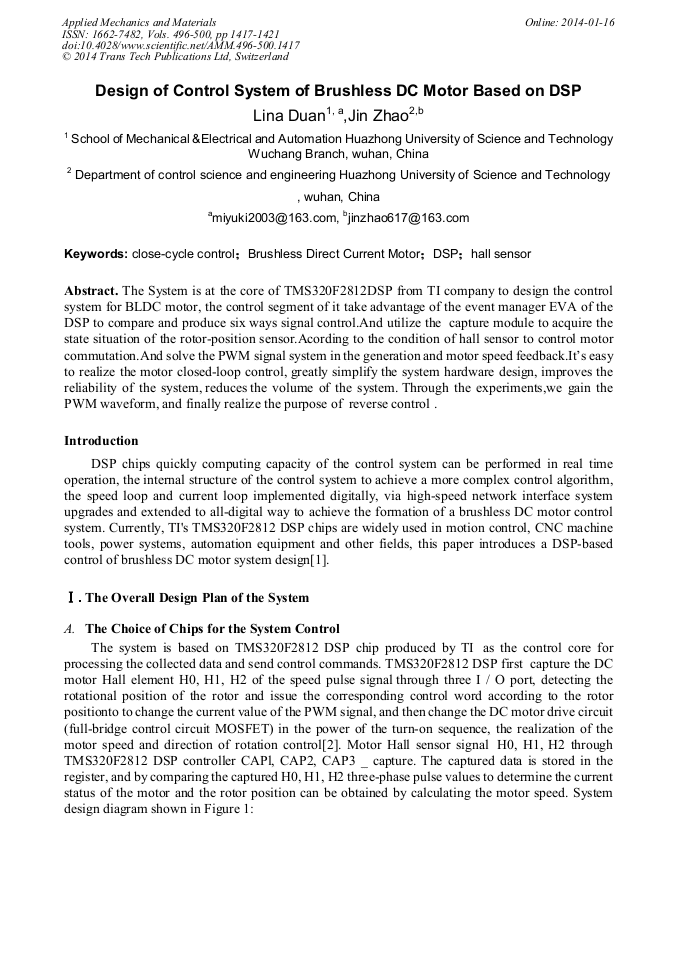

Design of Control System of Brushless DC Motor Based on DSP

Abstract:

The System is at the core of TMS320F2812DSP from TI company to design the control system for BLDC motor, the control segment of it take advantage of the event manager EVA of the DSP to compare and produce six ways signal control.And utilize the capture module to acquire the state situation of the rotor-position sensor.Acording to the condition of hall sensor to control motor commutation.And solve the PWM signal system in the generation and motor speed feedback.It's easy to realize the motor closed-loop control, greatly simplify the system hardware design, improves the reliability of the system, reduces the volume of the system. Through the experiments,we gain the PWM waveform, and finally realize the purpose of reverse control .

• Periodical: Applied Mechanics and Materials (Volumes 496-500)
• Pages: 1417-1421
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.496-500.1417
• Online since: January 2014
• Authors: Li Na Duan, Jin Zhao
• Keywords: Brushless Direct Current Motor, Closed-Cycle Control, DSP, Hall Sensor

References

[1] LIU Zenglei，CHENG Xiaohua．Development and status of brushless DC motors[J]. Explosion—proof Motor 2007，3(42)：1-5.

[2] A．Halvaei Niasar，Abolfazl Vahedi，Hassan Moghbeli．Torque Control of Brushless DC Motor Drive based on DSP Technology．Proceeding of International Conference on Electrical Machines and Systems，2007：524-528.

DOI: 10.1109/icems12746.2007.4412018

[3] Darko Hercog，Bojan Gergic，Suzana Uran，Karel Jezemik．A DSP-Based Remote Control Laboratory．IEEE Transactions on Industrial Electronics，2007，54(6)：3057-3068.

DOI: 10.1109/tie.2007.907009

[4] Dae—Seong Jeong，Kwang·Jin Choi，Hyun—Wook Woo，Jong-Gi Kim MSL R&D Center. LIG Nexl，Yongin，Korea．Controller design of missile actuator using DSE International Conference on Control，Automation and Systems，2007，17(20)：2110-2113.

DOI: 10.1109/iccas.2007.4406678

[5] Li Hong, CHEN Wu．Design of the brushless DC motor speed control system based on TMS320F2812DSP[J]．Machine Tool and Hydraulic，2009，37(8)：382—386.

[6] GAO Yanli ，SUN Yang，ZHANG Shutuan. Research on control system of brushless DC motor based on DSP[J]. Electronic Design Engineering，2012，20(2)：165—167.

[7] Shi Tingna，Lu Na，Li Wenshan．Sensofless Control for Brushless DC Motors Using Adaptive Sliding Mode Observer[C]. Proceedings of the 29th Chinese Control Conference．2010: 338—342.

DOI: 10.1109/icit.2008.4608509

[8] QING Hao，GU Chenglin，TANG Xiaoqi．Modeling and simulation analysis of fuzzy control system of brushless DC motor[J]．Micro—motor．2006(39)：19—22.
