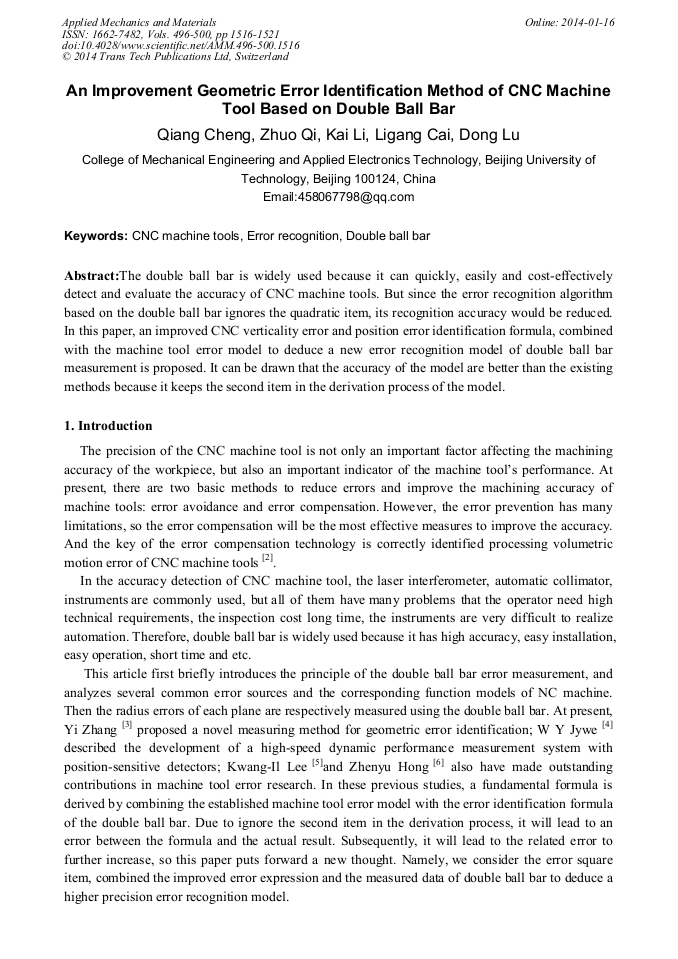

An Improvement Geometric Error Identification Method of CNC Machine Tool Based on Double Ball Bar

Abstract:

The double ball bar is widely used because it can quickly, easily and cost-effectively detect and evaluate the accuracy of CNC machine tools. But since the error recognition algorithm based on the double ball bar ignores the quadratic item, its recognition accuracy would be reduced. In this paper, an improved CNC verticality error and position error identification formula, combined with the machine tool error model to deduce a new error recognition model of double ball bar measurement is proposed. It can be drawn that the accuracy of the model are better than the existing methods because it keeps the second item in the derivation process of the model.

• Periodical: Applied Mechanics and Materials (Volumes 496-500)
• Pages: 1516-1521
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.496-500.1516
• Online since: January 2014
• Authors: Qiang Cheng, Zhuo Qi, Kai Li, Li Gang Cai, Dong Lu
• Keywords: CNC Machine Tool, Double Ball Bar, Error Recognition

References

[1] Kakino, Ihara, Shinohara. Accuracy inspection of NC machine tools by double ball bar method [M]. Hanser Publishers, 1993: 52~53.

[2] Zhang Hu, Zhou Yunfei, Tang Xiaoqi. Error identification and compensation of CNC machining centers using renishaw ball bar. Chinese Journal of Mechanical Engineering，2002, 38(10): 111 ~112.

DOI: 10.3901/jme.2002.10.108

[3] Yi Zhang, Jianguo Yang, Kun Zhang. Geometric error measurement and compensation for the rotary table of five-axis machine tool with double ball bar. International Journal of Advanced Manufacturing Technology, 2013, 65(1-4): 275~281.

DOI: 10.1007/s00170-012-4166-4

[4] W Y Jywe, C T Chou, C J Chen, T Y Yang, H H Jwo. Development of a three-dimensional contouring measuring system and error compensation method for a CNC machine tool. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, 2007, 221( 12): 1755~1761.

DOI: 10.1243/09544054jem880

[5] Kwang-Il Lee, Seung-Han Yang. Measurement and verification of position-independent geometric errors of a five-axis machine tool using a double ball-bar. International Journal of Machine Tools and Manufacture, 2013, 70: 45~52.

DOI: 10.1016/j.ijmachtools.2013.03.010

[6] Zhenyu Hong, Jiangping Mei, Xueman Zhao, Tian Huang. Kinematic calibration of the parallel mechanism using double-ball-bar system. Chinese Journal of Mechanical Engineering. 2007, 43(7): 16~22.

DOI: 10.3901/jme.2007.07.016
