Multi-Axis Spiral Tool Path Generation for Aviation Blade Numerical Control Machining

Abstract:

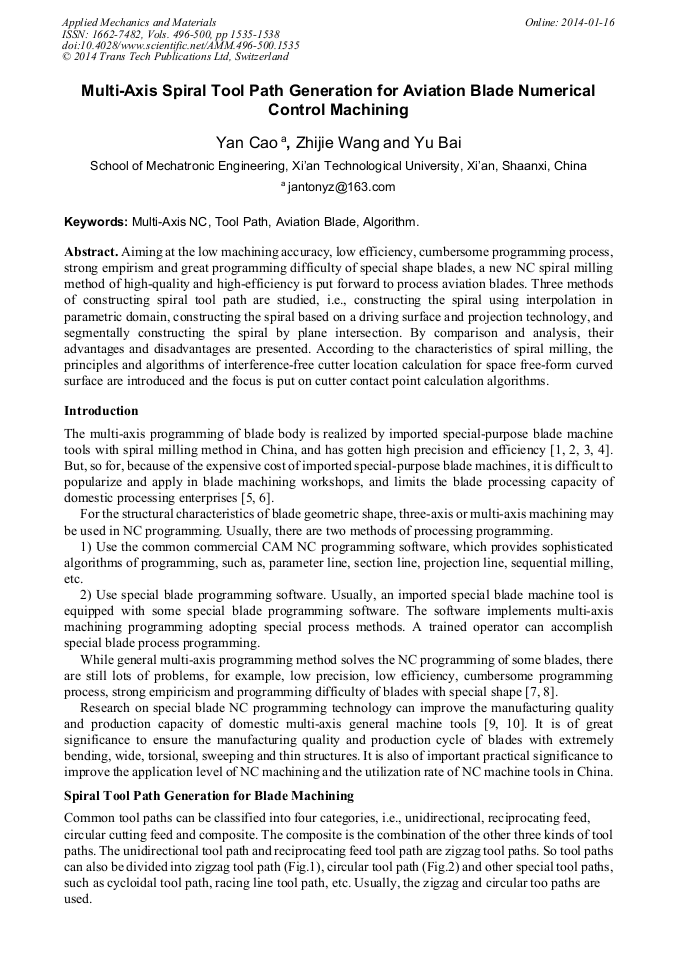

Aiming at the low machining accuracy, low efficiency, cumbersome programming process, strong empirism and great programming difficulty of special shape blades, a new NC spiral milling method of high-quality and high-efficiency is put forward to process aviation blades. Three methods of constructing spiral tool path are studied, i.e., constructing the spiral using interpolation in parametric domain, constructing the spiral based on a driving surface and projection technology, and segmentally constructing the spiral by plane intersection. By comparison and analysis, their advantages and disadvantages are presented. According to the characteristics of spiral milling, the principles and algorithms of interference-free cutter location calculation for space free-form curved surface are introduced and the focus is put on cutter contact point calculation algorithms.
