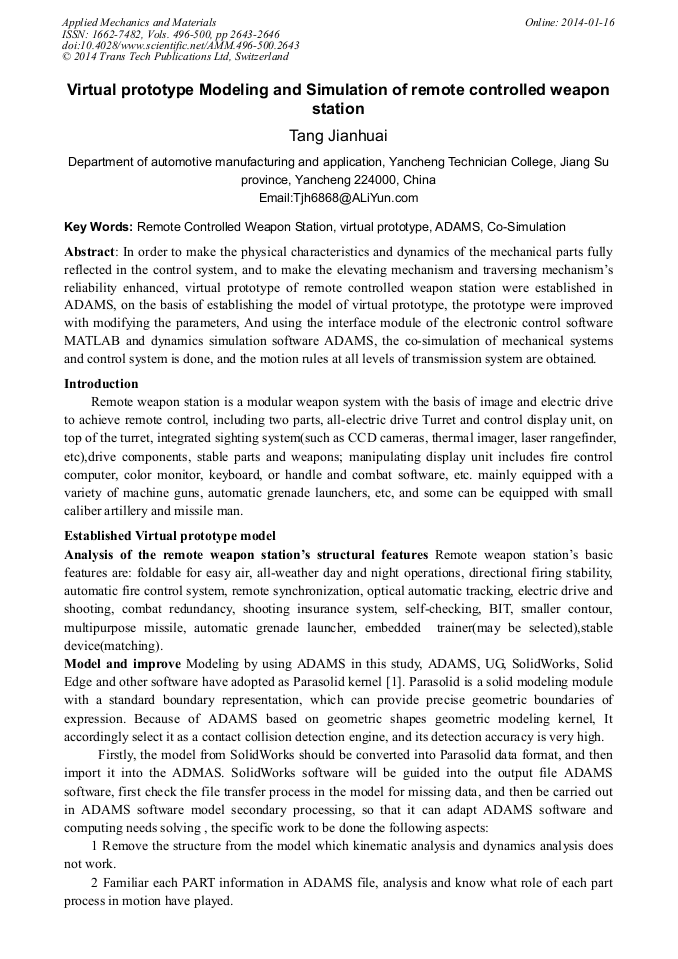

Virtual Prototype Modeling and Simulation of Remote Controlled Weapon Station

Abstract:

In order to make the physical characteristics and dynamics of the mechanical parts fully reflected in the control system, and to make the elevating mechanism and traversing mechanisms reliability enhanced, virtual prototype of remote controlled weapon station were established in ADAMS, on the basis of establishing the model of virtual prototype, the prototype were improved with modifying the parameters, And using the interface module of the electronic control software MATLAB and dynamics simulation software ADAMS, the co-simulation of mechanical systems and control system is done, and the motion rules at all levels of transmission system are obtained.

• Periodical: Applied Mechanics and Materials (Volumes 496-500)
• Pages: 2643-2646
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.496-500.2643
• Online since: January 2014
• Authors: Jian Huai Tang
• Keywords: Adam, Co-Simulation, Remote Controlled Weapon Station, Virtual Prototype

References

[1] LiFeng, Wang Yongjuan, XuCheng, Hu Liangming. Virtual prototype technology and its application in light weapon. Journal of Computer Aided Design & Computer Graphics. 885-888 (2006).

[2] Song Lanwei, Zhang Zhengtao. Research on Virtual Prototype Technology of large calibre machine gun automatic motor mechanics. Product development and design, 2006(6), 42-44.

[3] Hua Shungang, Yu Guoquan, Su Shungang. Reducer modeling and dynamic simulation of virtual prototype based on ADAMS. Machine design and research, 2006, 22(6): 48-49.

[4] Wang Keqi, Wen Xiaoshuo. Co-simulation of ADAMS and MATLAB based on collaborative robot. Electrical and mechanical product development, 2005, 18(6), 35-37.

[5] Zhi Long, Chang Fanghui, Chen Liping, Zhang Yuqing. Co simulation of semi active suspension based on ADAMS and MATLAB. Automation and instrumentation, 2004(6): 43-45.

[6] Zheng Jianrong. Introduction to ADAMS virtual prototype technology and improve Beijing: Mechanical Industry Press, (2001).
