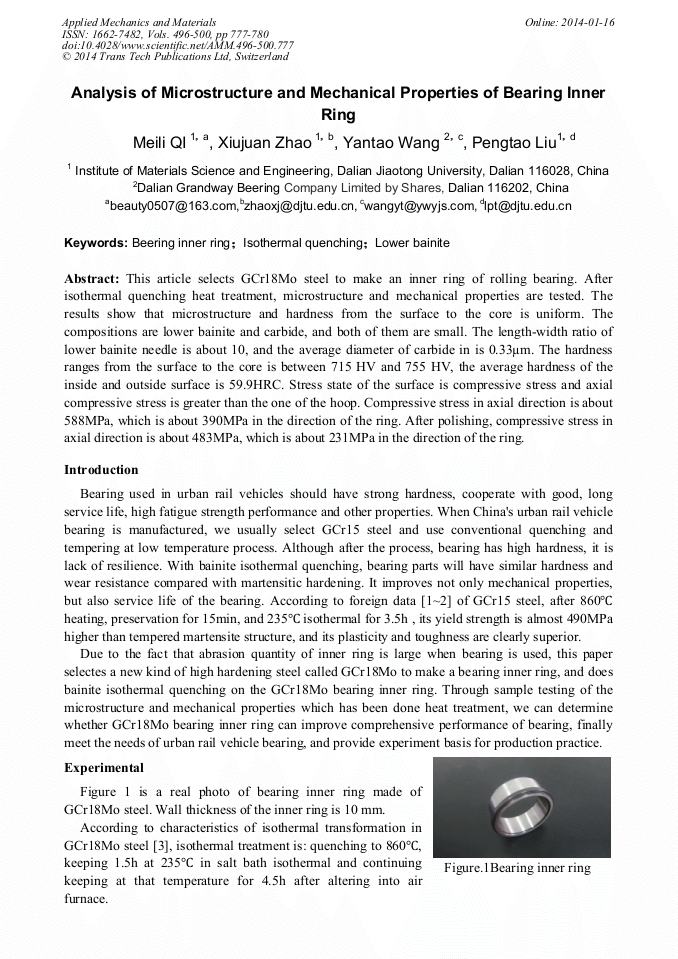

Analysis of Microstructure and Mechanical Properties of Bearing Inner Ring

Abstract:

This article selects GCr18Mo steel to make an inner ring of rolling bearing. After isothermal quenching heat treatment, microstructure and mechanical properties are tested. The results show that microstructure and hardness from the surface to the core is uniform. The compositions are lower bainite and carbide, and both of them are small. The length-width ratio of lower bainite needle is about 10, and the average diameter of carbide in is 0.33μm. The hardness ranges from the surface to the core is between 715 HV and 755 HV, the average hardness of the inside and outside surface is 59.9HRC. Stress state of the surface is compressive stress and axial compressive stress is greater than the one of the hoop. Compressive stress in axial direction is about 588MPa, which is about 390MPa in the direction of the ring. After polishing, compressive stress in axial direction is about 483MPa, which is about 231MPa in the direction of the ring.

• Periodical: Applied Mechanics and Materials (Volumes 496-500)
• Pages: 777-780
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.496-500.777
• Online since: January 2014
• Authors: Mei Li Qi, Xiu Juan Zhao, Yan Tao Wang, Peng Tao Liu
• Keywords: Beering Inner Ring, Isothermal Quenching, Lower Bainite

References

[1] ZHANG Jing-guo. Microstructure and Continuous Cooling Transformation Thermograms of Spray Formed GCr15 Steel[J]. Materials Science and Engineering, 2002(A326): 20.

DOI: 10.1016/s0921-5093(01)01436-8

[2] Wamng J. L, Chai F.T. Effect of carbide refinementon the fine structure of bainite/martensite duplex microstructure of GCr15 steel[J]. Journal of Materials Science Letters, 1994(13): 1506.

DOI: 10.1007/bf00419149

[3] Maolin Sun, Taijun Lin, Yanshu Yao. GCr18Mo steel isothermal quenching process and performance test[J]. Journal of Bearing , 2001. (8): 28 to 30.

[4] Guoyou Qin etc. Quantitative metallography[M]. Chengdu: Sichuan Science and Technology Press, (1987).

[5] Zongchang Liu, Huiping Ren. Bainite and bainite transition. Beijing: Metallurgical Industry Press, 2009. 291-294.

[6] Hsu T Y (Xu Zuyao). On martenite formation[J]. Metal. L Trans, 1990 (21a): 811-816.

[7] The JB/T 1255-2001. The People's Republic of China machinery industry standard[S]. China Machinery Industry Federation, (2001).

[8] Zhenning Wang, Xinhua Ba, Damin Li etc. Residual stress of Metal material effect on mechanics test[J]. Journal of Henan Professional Technician Institute, 1996, 24 (2): 50.

[9] Yuan Sun, Dong Zhang, Lijuan Wu, etc. Material residual stress on the analysis of the affecting degree of hardness test[J]. Journal of east China university of technology, 2010, 38 (5): 654.
