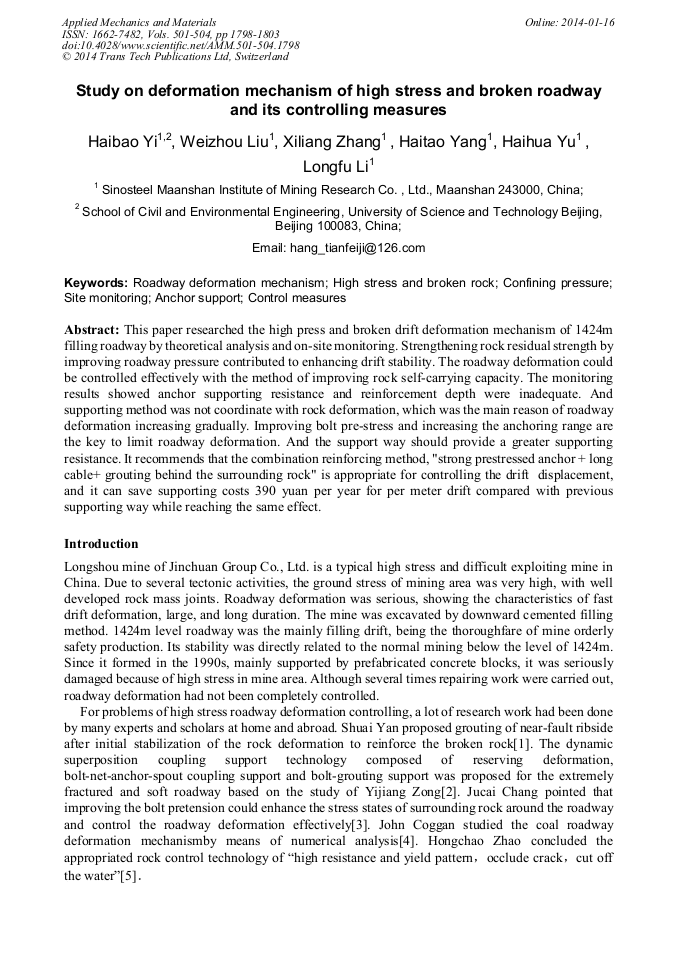

Study on Deformation Mechanism of High Stress and Broken Roadway and its Controlling Measures

Abstract:

This paper researched the high press and broken drift deformation mechanism of 1424m filling roadway by theoretical analysis and on-site monitoring. Strengthening rock residual strength by improving roadway pressure contributed to enhancing drift stability. The roadway deformation could be controlled effectively with the method of improving rock self-carrying capacity. The monitoring results showed anchor supporting resistance and reinforcement depth were inadequate. And supporting method was not coordinate with rock deformation, which was the main reason of roadway deformation increasing gradually. Improving bolt pre-stress and increasing the anchoring range are the key to limit roadway deformation. And the support way should provide a greater supporting resistance. It recommends that the combination reinforcing method, "strong prestressed anchor + long cable+ grouting behind the surrounding rock" is appropriate for controlling the drift displacement, and it can save supporting costs 390 yuan per year for per meter drift compared with previous supporting way while reaching the same effect.

• Periodical: Applied Mechanics and Materials (Volumes 501-504)
• Pages: 1798-1803
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.501-504.1798
• Online since: January 2014
• Authors: Hai Bao Yi*, Wei Zhou Liu, Xi Liang Zhang, Hai Tao Yang, Hai Hua Yu, Long Fu Li
• Keywords: Anchor Support, Confining Pressure, Control Measure, High Stress and Broken Rock, Roadway Deformation Mechanism, Site Monitoring

References

[1] Shuai Yan, Jianbiao Bai, Wenfeng Li, et al. Deformation mechanism and stability control of roadway along a fault subjected to mining. International Journal of Mining Science and Technology, 2012, 22(4): 559-565.

DOI: 10.1016/j.ijmst.2012.01.020

[2] Yijiang Zong, Lijun Han, Jianming Gao. Instability mechanisms and dynamic superposition coupling support in extremely fractured and soft rock roadway. Journal of Mining & Safety Engineering, 2013, 30 (3): 55-262(In Chinese).

[3] Jucai Chang, Guangxiang Xie. Research on Response Characteristics of Bolt Pretension on Supporting Effect of Rock Roadway in Coal Mine. Journal of Mining & Safety Engineering, 2012, 29 (5): 657-661(In Chinese).

[4] Coggan J, Gao F, Stead D, et al. Numerical modelling of the effects of weak immediate roof lithology on coal mine roadway stability. International Journal of Coal Geology, 2012, 90: 100-109.

DOI: 10.1016/j.coal.2011.11.003

[5] Hongchao Zhao, Shenggen Cao, Kexue Zhang, et al. Study on Deformation Mechanism and Stability Control of Surrounding Rock in Roadway for Deep Underground Mining of Oil Shale . Journal of Mining & Safety Engineering, 2012, 29(2): 178-184(In Chinese).

[6] Eric D. Stewart, Caleb W. Holyoke, III, Andreas K. Kronenberg. High pressure deformation experiments using solid confining media and Griggs piston-cylinder methods: Appraisal of stress and deformation in talc assemblies. Tectonophysics, 2013, 588(11): 171-178.

DOI: 10.1016/j.tecto.2012.12.004

[7] H. Yoshimura, T. Yuki, Y. Yamada, N. Kokubun. Analysis and monitoring of the Miyana railway tunnel constructed using the New Austrian tunnelling method. International Journal of Rock Mechanics and Mining Sciences & Geomechanics Abstracts, 1986, 23(1): 67-75.

DOI: 10.1016/0148-9062(86)91667-0

[8] Plínio G.C. Prazeres, Klaus Thoeni, Gernot Beer. Nonlinear analysis of NATM tunnel construction with the boundary element method. Computers and Geotechnics, 2012, 40: 160-173.

DOI: 10.1016/j.compgeo.2011.10.005

[9] Stanislaw Orzepowski, Jan Butra. Evaluation of rock-mass state in Polish copper mines through monitoring the borehole deformations . Tectonophysics, 2008, 456(1-2): 52-61.

DOI: 10.1016/j.tecto.2007.06.013

[10] Shibao Lu, Xiao Li, Jianqing Ma, et al. Interpretation of deformation monitoring of underground roadways and its application to No. 2 diggings of Jinchuan mine. Chinese Journal of Rock Mechanics and Engineering, 2004, 23(3): 488-492(In Chinese).
