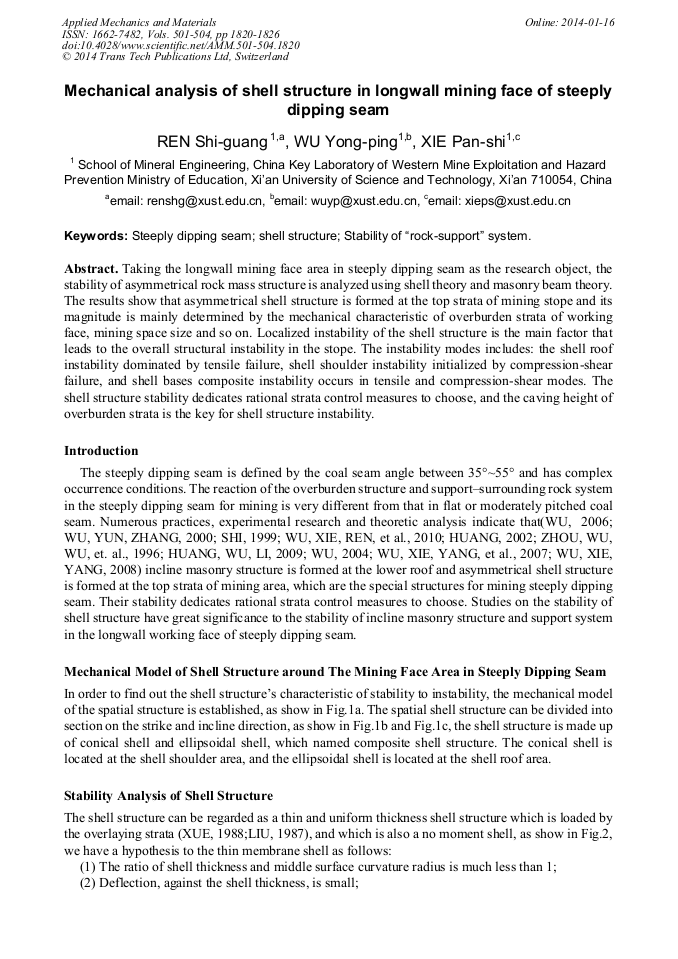

Mechanical Analysis of Shell Structure in Longwall Mining Face of Steeply Dipping Seam

Abstract:

Taking the longwall mining face area in steeply dipping seam as the research object, the stability of asymmetrical rock mass structure is analyzed using shell theory and masonry beam theory. The results show that asymmetrical shell structure is formed at the top strata of mining stope and its magnitude is mainly determined by the mechanical characteristic of overburden strata of working face, mining space size and so on. Localized instability of the shell structure is the main factor that leads to the overall structural instability in the stope. The instability modes includes: the shell roof instability dominated by tensile failure, shell shoulder instability initialized by compression-shear failure, and shell bases composite instability occurs in tensile and compression-shear modes. The shell structure stability dedicates rational strata control measures to choose, and the caving height of overburden strata is the key for shell structure instability.

• Periodical: Applied Mechanics and Materials (Volumes 501-504)
• Pages: 1820-1826
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.501-504.1820
• Online since: January 2014
• Authors: Shi Guang Ren, Yong Ping Wu, Pan Shi Xie
• Keywords: Shell Structure, Stability of "Rock-Support" System, Steeply Dipping Seam

References

[1] Y.P. WU, Study on Dynamics Controlling Basis of R-S-F, System in Steeply Dipping Seam Mining, Shannxi Science and Technology Press, 2006, 180 p.

[2] Y.P. WU, D.F. YUN, M.F. ZHANG, Study on the elementary problems of full-mechanized coal mining in greater pitching seam [J]. Journal of China Coal Society, 2000, 25(5): 465-468.

[3] P.W. SHI, The complexity of movement of broken overlying strata in steep coal seam mining [J]. Journal of Ground Pressure and Roof Control, 1999, 3: 26-28.

[4] Y.P. WU, P.S. XIE, S.G. REN, et al. Analysis of asymmetric structure around coal face of steeply dipping seam mining [J]．Journal of China Coal Society, 2010, 35（2）：182-184.

DOI: 10.1007/s12404-008-0077-2

[5] J.G. HUANG, Structural analysis for roof movement for steep coal seams [J]. Journal of China University of Mining & Technology, 2002, 31(5): 411-414.

[6] B.Y. ZHOU, Y.P. WU, H. R. WU, et. al., Technology of fully mechanized coal mining in steeply inclined seam", Xi'an: Huaying mountain mining bureau, Xi'an Mining & Technology Institute, (1996).

[7] G. C. HUANG, Y.P. WU, R.M. LI, et al, Technology of longwall top coal caving along the Strike in hard roof, soft floor and coal steeply inclined seam, Urumqi: Xinjiang Tar Coal Group Co. Ltd, Xi'an University of Science and Technology, (2009).

DOI: 10.1007/s40789-019-00286-z

[8] Y.P. WU, Technology of longwall top coal caving with small height along the Strike in steeply inclined thick and inflammable coal seams, Lanzhou: Huating Coal Group, Xi'an University of Science and Technology, (2004).

DOI: 10.1007/s12517-022-09466-9

[9] Y.P. WU, P.S. XIE, Y.G. YANG, et al. Numerical simulation and complexity analysis of strata movement in exploiting steep coal seams group [J]. Journal of Mining & Safety Engineering, 2007, 24(4): 392-395.

[10] Y.P. WU, P.S. XIE, Y.G. YANG, et al. Three-dimensional strata movement around coal face of steeply dipping seam group[J]．Journal of Coal Science & Engineering．2008, 14（3）： 352-355.

DOI: 10.1007/s12404-008-0077-2

[11] D.W. XUE, Plate and Shell Theory, Beijing Institute of Machinery Press, Beijing, China, 430 p , (1988).

[12] H.W. LIU, Plate and Shell Theory, Zhejiang University Press, Hangzhou, China, 504 p , (1987).

[13] M.G. QIAN, P.W., SHI Mining Pressure and Strata Control, China University of Mining and Technology Press, Beijing, China, 301 p, (1983).

[14] M.G. QIAN, Key Strata Theory in Ground Control, China University of Mining and Technology Press, 224 p, (2000).
