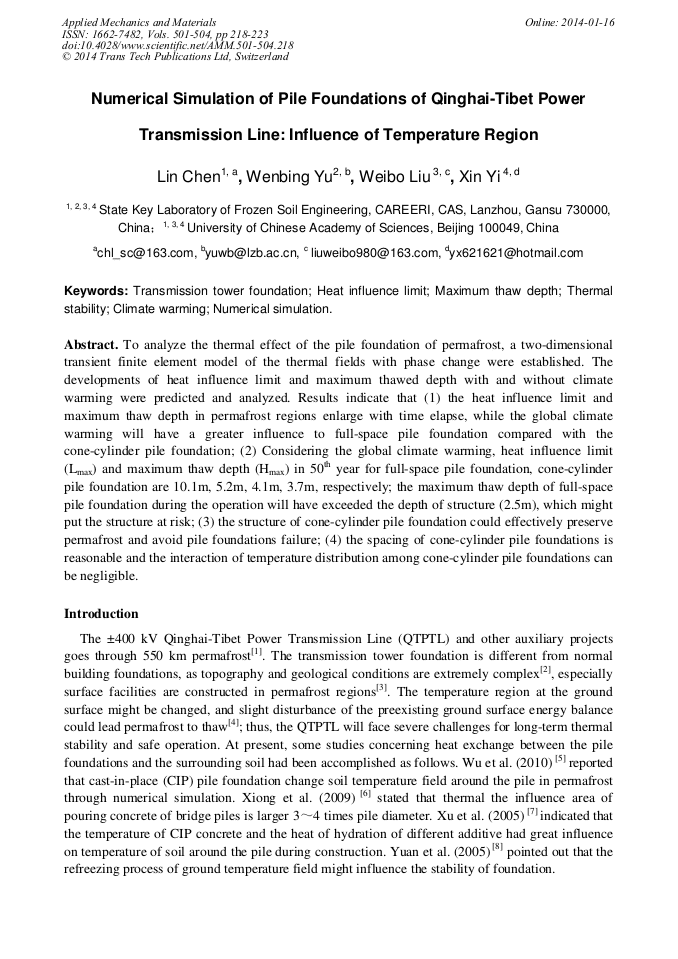

Numerical Simulation of Pile Foundations of Qinghai-Tibet Power Transmission Line: Influence of Temperature Region

Abstract:

To analyze the thermal effect of the pile foundation of permafrost, a two-dimensional transient finite element model of the thermal fields with phase change were established. The developments of heat influence limit and maximum thawed depth with and without climate warming were predicted and analyzed. Results indicate that (1) the heat influence limit and maximum thaw depth in permafrost regions enlarge with time elapse, while the global climate warming will have a greater influence to full-space pile foundation compared with the cone-cylinder pile foundation; (2) Considering the global climate warming, heat influence limit (L_max) and maximum thaw depth (H_max) in 50^th year for full-space pile foundation, cone-cylinder pile foundation are 10.1m, 5.2m, 4.1m, 3.7m, respectively; the maximum thaw depth of full-space pile foundation during the operation will have exceeded the depth of structure (2.5m), which might put the structure at risk; (3) the structure of cone-cylinder pile foundation could effectively preserve permafrost and avoid pile foundations failure; (4) the spacing of cone-cylinder pile foundations is reasonable and the interaction of temperature distribution among cone-cylinder pile foundations can be negligible.

• Periodical: Applied Mechanics and Materials (Volumes 501-504)
• Pages: 218-223
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.501-504.218
• Online since: January 2014
• Authors: Lin Chen, Wen Bing Yu, Wei Bo Liu, Xin Yi
• Keywords: Climate Warming, Heat Influence Limit, Maximum Thaw Depth, Numerical Simulation, Thermal Stability, Transmission Tower Foundation

References

[1] J. Qian, H. Liu, Q. Yu, et al. A Discussion on Permafrost Engineering Characteristics along Qinghai-Tibet 500 kV Power Transmission Line and Countermeasures [J]. China Rural Water and Hydropower, 2009, 4: 033.

[2] X.L. Lu, Z.Z. Qian. Design and practice of environmental geotechnology issues on transmission lines foundation engineering [J]. Engineering Journal of Wuhan University, 2009, 42(S1): 253-256.

[3] H.J. Liu, D.X. Chen, Q.H. Yu, et al. Study on permafrost engineering problems and engineering countermeasure of transmission line [J]. Geotechnical Investigation &Surveying, 2009, 4: 32-36.

[4] D.J. Goering. Passively cooled railway embankments for use in permafrost areas [J]. Journal of Cold Regions Engineering, 2003, 17(3): 119-133.

DOI: 10.1061/(asce)0887-381x(2003)17:3(119)

[5] Y. Wu, J. Guo, C. Guo, et al. Exothermic process of cast-in-place pile foundation and its thermal agitation of the frozen ground under a long dry bridge on the Qinghai-Tibet Railway[J]. Journal of Zhejiang University SCIENCE A, 2010, 11(2): 88-96.

DOI: 10.1631/jzus.a0900522

[6] W. Xiong, M.G. Liu, Q. Zhang. Temperature distribution along piles in permafrost regions [J]. Rock and Soil Mechanics, 2009, 30(6): 1658-1664.

[7] C.H. Xu, X.Y. Xu, M. Qiu. Numerical analysis for formation time of bearing capacity of cast-in-place concrete pile in permafrost regions of Mohe County [J]. Chinese Journal of Geotechnical Engineering, 2005, 27(10): 1190-1193.

[8] S.C. Yuan, L.X. Zhang, Zhang XJ. Study on the Safety of Load Beating Influenced by the Construction of Concrete-priming Pole of the Bridge Foundation [J]. China Safety Science Journal, 2005, 15(10): 84-92.

[9] S.S. He, W.B. Yu, W.G. Chen, et al. Non-linear analysis of temperature fields around the buried oil-pipeline in permafrost regions, Northeast China[J]. Journal of Glaciology and Geocryology, 2008, 30(2): 287-295.

[10] L.N. Zhu. Study of the Adherent Layer on Different Types of Ground in Permafrost Regions on the Qinghai-Xizang Plateau[J]. Journal of Glaciology and Geocryology, 1988, 10(1): 8-14.

[11] D.H. Qin, Y.H. Ding, S.W. Wang, et al. A Study of Environment Change and its Impacts in Western China [J]. Earth Science Frontiers, 2002, 9(2): 321-328.

[12] M.Y. Zhang, J.M. Zhang, Y.M. Lai. Numerical analysis for critical height of railway embankment in permafrost regions of Qinghai-Tibetan Plateau [J]. Cold Regions Science and Technology, 2005, 41(2): 111-120.

DOI: 10.1016/j.coldregions.2004.09.001

[13] Y.J. Ji, H.J. Jin, G.S. Wang, et al. Thaw-Stability assessment of the Permafrost Foundation Soil along the Proposed China-Russia Crude Oil Pioeline from Mo'He to DaQing [J]. Journal of Engineering Geology, 2010, 2: 018.

[14] Y.W. Zhou, R.H. Du. [J]. The Qinghai-Tibet Plateau Preliminary Investigation about permafrost Chinese Science Bulletin, 1963, 2: 51-59.
