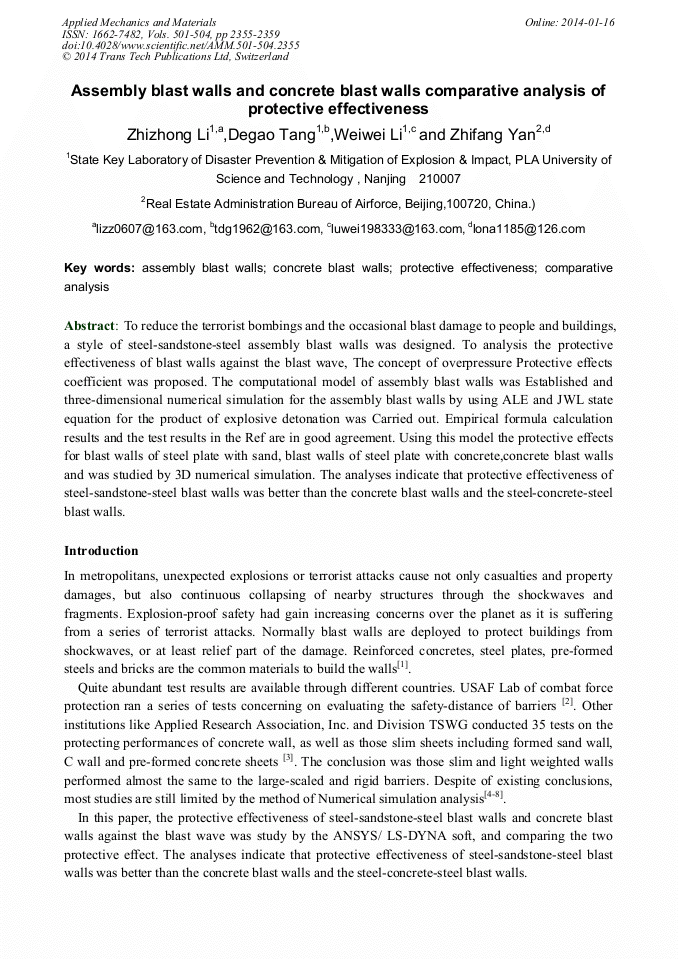

Assembly Blast Walls and Concrete Blast Walls Comparative Analysis of Protective Effectiveness

Abstract:

To reduce the terrorist bombings and the occasional blast damage to people and buildings, a style of steel-sandstone-steel assembly blast walls was designed. To analysis the protective effectiveness of blast walls against the blast wave, The concept of overpressure Protective effects coefficient was proposed. The computational model of assembly blast walls was Established and three-dimensional numerical simulation for the assembly blast walls by using ALE and JWL state equation for the product of explosive detonation was Carried out. Empirical formula calculation results and the test results in the Ref are in good agreement. Using this model the protective effects for blast walls of steel plate with sand, blast walls of steel plate with concrete,concrete blast walls and was studied by 3D numerical simulation. The analyses indicate that protective effectiveness of steel-sandstone-steel blast walls was better than the concrete blast walls and the steel-concrete-steel blast walls.

• Periodical: Applied Mechanics and Materials (Volumes 501-504)
• Pages: 2355-2359
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.501-504.2355
• Online since: January 2014
• Authors: Zhi Zhong Li, De Gao Tang, Wei Wei Li, Zhi Fang Yan
• Keywords: Assembly Blast Walls, Comparative Analysis, Concrete Blast Walls, Protective Effectiveness

References

[1] Cui Ke-Qing. Dictionary of safety engineering[M]. Beijing: Chemical Industry Press, 1995. (in Chinese).

[2] Patricia K B. Barrier assessment for safe standoff (BASS) test series[C]. The 11th International Symposium on Interaction of the Effects of Munitions with Structures, Germany, May, (2003).

[3] David Bogosian, Dr. Dwayne Piepenburg. Effectiveness of frangible barriers for blast shielding[C]. 17th international symposium on the military aspects of blast and shock, June 2002, Las Vegas, Nevada.

[4] Zhu Li-xin. The Cut Effect of a Gear Wave Wall on Air Shock Wave[J]. BLASTING, 2003, 20（1）: 78-80. ( in Chinese).

[5] Yan Peng. Experimental Study and analyse on field operations Blast Wall against the blast wave and fragments[D]. master's thesis of PLA University of Science and Technology, 2007. ( in Chinese).

[6] Huang hua, Lv Weidong, Liu Boquan. protective performance of masonry walls strengthend with polymer sheet under explosive loading[J]. journal of vibration an shock, 2013, Vol. 32 No. 192: 132-138. ( in Chinese).

[7] Mu Chaomin, Wang Guangyong. Study on numerical simulation of explosive shock wave rounding wall. Engineering Blasting, 2008, 14(2): 16-19. ( in Chinese).

[8] Mu Chaomin, Ren Huiqi, Li Chiyong, etc. Research into impact effect on wall and flow around wall of explosive shock wave. Mechanics and Practice, 2009. 10: 35-40. ( in Chinese).

[9] Jiang Peng-fei, Tang De-gao, Wu Jun. Analysis on penetration of assembled blast-resistance wall by fragments with high velocities [J]. Journal of Vibration and Shock, 2008，27（7）: 131-135. ( in Chinese).

[10] Tang De-gao, Jiang Peng-fei, WU Jun. Influnce of newly-designed assembled structure on explosion field [J]. Journal of PLA University of Science and Technology (Natural Science Edition), 2009, Vol. 10 No. 1: 37-42. ( in Chinese).

[11] BAI Jin-ze. LS-DYNA3D theory basis and example analysis [M]. Bei-Jing: Science Press, 2005. ( in Chinese).

[13] J Wang. Simulation of Landmine Explosion Using LS-DYNA3D Software: Benchmark Work of Simulation of Explosion in Solid and Air[C]. Melbourne: Aeronautical and Maritime Research Laboratory, (2001).

[14] Qu xia, Tang Degao, Wu jun, Jiang Penfei. Experimental study of steel plate-sandy soil composite blast wall under the effect of blast wave[j]. Journal of Projectiles, Rockets, Missiles and Guidance. 2009, 2: 134-137 (in Chinese).

[15] Ding Nana. Study on Blast Wall Outside the Important Construction[D]. Doctoral thesis of PLA University of Science and Technology, 2007. ( in Chinese).
