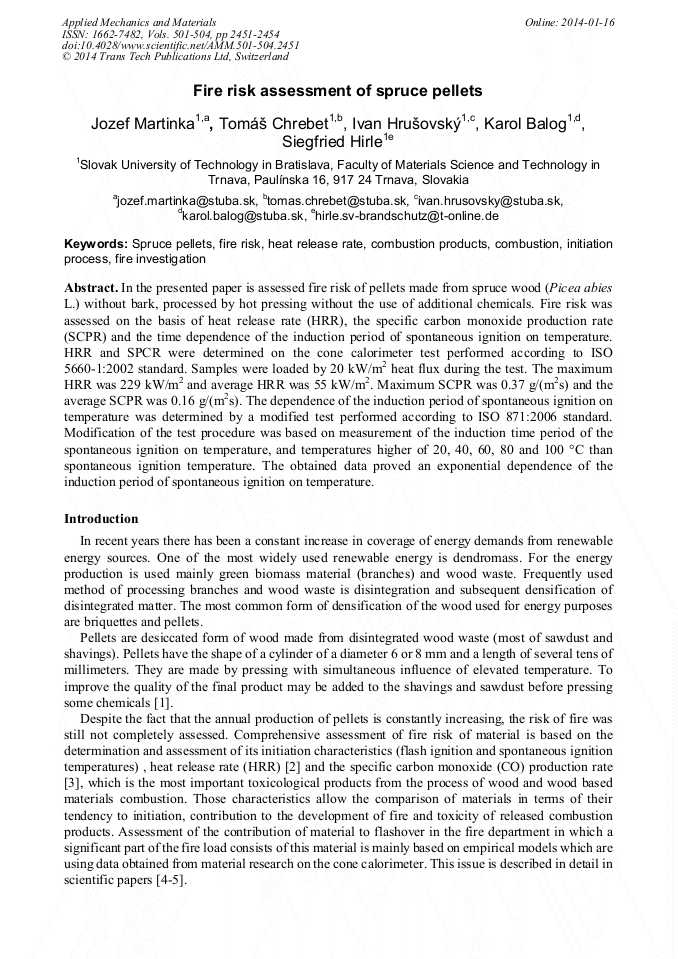

Fire Risk Assessment of Spruce Pellets

Abstract:

In the presented paper is assessed fire risk of pellets made from spruce wood (Picea abies L.) without bark, processed by hot pressing without the use of additional chemicals. Fire risk was assessed on the basis of heat release rate (HRR), the specific carbon monoxide production rate (SCPR) and the time dependence of the induction period of spontaneous ignition on temperature. HRR and SPCR were determined on the cone calorimeter test performed according to ISO 5660-1:2002 standard. Samples were loaded by 20 kW/m² heat flux during the test. The maximum HRR was 229 kW/m² and average HRR was 55 kW/m². Maximum SCPR was 0.37 g/(m²s) and the average SCPR was 0.16 g/(m²s). The dependence of the induction period of spontaneous ignition on temperature was determined by a modified test performed according to ISO 871:2006 standard. Modification of the test procedure was based on measurement of the induction time period of the spontaneous ignition on temperature, and temperatures higher of 20, 40, 60, 80 and 100 °C than spontaneous ignition temperature. The obtained data proved an exponential dependence of the induction period of spontaneous ignition on temperature.

• Periodical: Applied Mechanics and Materials (Volumes 501-504)
• Pages: 2451-2454
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.501-504.2451
• Online since: January 2014
• Authors: Jozef Martinka*, Tomáš Chrebet, Ivan Hrušovský, Karol Balog, Siegfried Hirle
• Keywords: Combustion, Combustion Products, Fire Investigation, Fire Risk, Heat Release Rate, Initiation Process, Spruce Pellets

References

[1] J. Martinka, T. Chrebet, I. Hrušovský and K. Balog: Assessment of the impact of heat flux density on the combustion efficiency and fire hazard of spruce pellets. European Journal of Environmental and Safety Sciences. Vol. 1 (2013), pp.24-31.

DOI: 10.4028/www.scientific.net/amm.501-504.2451

[2] V. Babrauskas and R.D. Peacock: Heat release rate: the single most important variable in fire hazard. Fire Saf J. Vol. 18 (1992), pp.255-272.

DOI: 10.1016/0379-7112(92)90019-9

[3] J. Martinka, E. Hroncová, T. Chrebet and K. Balog: A comparison of the behaviour of spruce wood and polyolefins during the test on the cone calorimeter. Adv Mater Res. Vol. 726-731 (2013), pp.4280-4287.

DOI: 10.4028/www.scientific.net/amr.726-731.4280

[4] Q. Xu, A. Majlingova, M. Zachar, C. Jin and Y. Jiang: Correlation analysis of cone calorimetry test data assessment of the procedure with tests of different polymers. J Therm Anal Calorim. Vol. 110 (2012) pp.65-70.

DOI: 10.1007/s10973-011-2059-7

[5] Q. Xu, M. Zachar, A. Majlingová, C. Jin and Y. Jiang: Evaluation of plywood fire behaviour by ISO tests. European Journal of Environmental and Safety Sciences. Vol. 1 (2013), pp.1-7.

[6] ISO 5660-1: 2002: Reaction to fire tests – heat release, smoke production and mass loss rate. Part 1: Heat release rate (cone calorimeter method).

DOI: 10.3403/30255889u

[7] B. Karlsson and J.G. Quintiere: Enclosure fire dynamics (CRC Press, United Kingdom 2000).

[8] ISO 871: 2006: Plastics – determination of ignition temperature using a hot-air furnace.

[9] W.J. Parker: Prediction of the heat release rate from basic measurements, in: Heat release in fires, edited by V. Babrauskas and S.J. Grayson (Interscience Communications, United Kingdom 2009).

[10] H.C. Tran: Experimental data on wood materials, in: Heat release in fires, edited by V. Babrauskas and S.J. Grayson (Interscience Communications, United Kingdom 2009).

[11] R.H. White and M.A. Dietenberg: Fire safety, in: Wood handbook, edited by M.A. Dietenberg, W.D. Green and D.E. Kretschmann (Forest Products Laboratory USDA Forest Service, USA 1999).

[12] J. Martinka, E. Hroncová, T. Chrebet and K. Balog: Fire risk assessment of thermally modified spruce wood. Acta Facultatis Xylologiae. Vol. 55 (2013), pp.117-128.

[13] M. Zachar, I. Mitterová, Q. Xu, A. Majlingová,J. Cong and Š. Galla: Determination of fire and burning properties of spruce wood. Drv Ind. Vol. 63 (2012) pp.217-223.

DOI: 10.5552/drind.2012.1141

[14] A. Osvald: Fire characteristics of wood and wood products (Technical University in Zvolen, Slovakia 1997).

[15] A. Osvald and V. Mózer: Osvald A, Mózer V. Fire engineering a method for fire safety design. in: Advances in fire and safety engineering, edited by M. Zachar and K Dúbravská (Technical university in Zvolen, Slovakia 2012).
