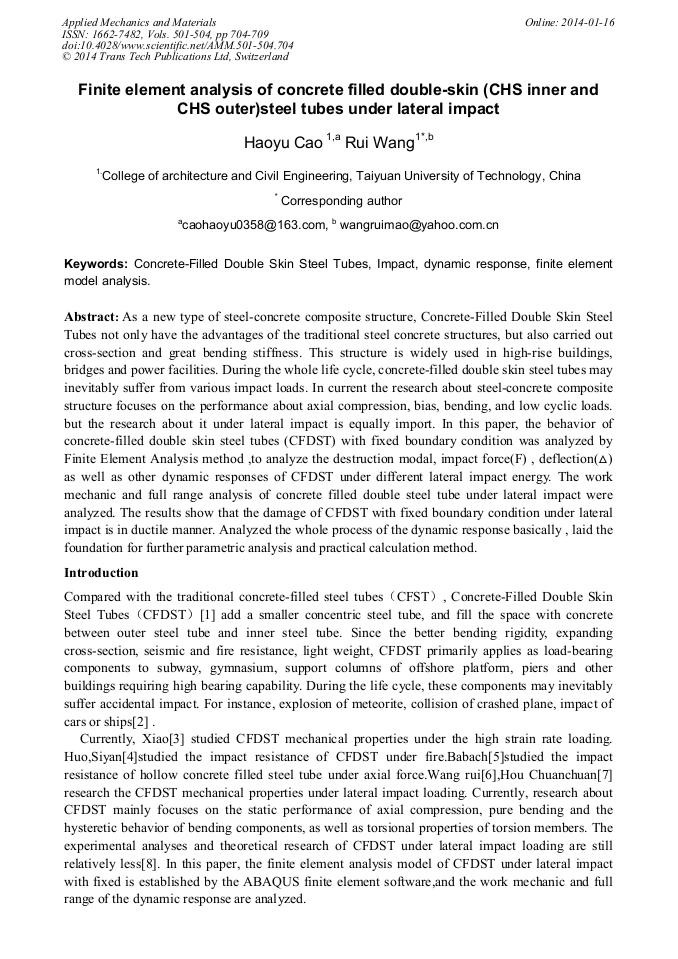

Finite Element Analysis of Concrete Filled Double-Skin (CHS Inner and CHS Outer) Steel Tubes under Lateral Impact

Abstract:

As a new type of steel-concrete composite structure, Concrete-Filled Double Skin Steel Tubes not only have the advantages of the traditional steel concrete structures, but also carried out cross-section and great bending stiffness. This structure is widely used in high-rise buildings, bridges and power facilities. During the whole life cycle, concrete-filled double skin steel tubes may inevitably suffer from various impact loads. In current the research about steel-concrete composite structure focuses on the performance about axial compression, bias, bending, and low cyclic loads. but the research about it under lateral impact is equally import. In this paper, the behavior of concrete-filled double skin steel tubes (CFDST) with fixed boundary condition was analyzed by Finite Element Analysis method ,to analyze the destruction modal, impact force (F) , deflection () as well as other dynamic responses of CFDST under different lateral impact energy. The work mechanic and full range analysis of concrete filled double steel tube under lateral impact were analyzed. The results show that the damage of CFDST with fixed boundary condition under lateral impact is in ductile manner. Analyzed the whole process of the dynamic response basically , laid the foundation for further parametric analysis and practical calculation method.

• Periodical: Applied Mechanics and Materials (Volumes 501-504)
• Pages: 704-709
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.501-504.704
• Online since: January 2014
• Authors: Hao Yu Cao, Rui Wang*
• Keywords: Concrete-Filled Double Skin Steel Tubes, Dynamic Response, Finite Element Model Analysis, Impact

References

[1] Zhong Tao, Qing Yu. New composite columns: Test, Theory and Methods. Sciencep. BJ. (2006).

[2] Rui Wang. Dynamic response and damage failure of CFST under lateral impact. PhD thesis of Taiyuan University of Technology. (2008).

[3] Yan Xiao, Jianhua Shan, Qiu Zheng, Bosheng Chen, and Yali Shen. Experimental studies on concrete filled steel tubes under high strain rate loading. Journal of Materials in Civil Engineering, 21(10), pp.569-577, (2009).

DOI: 10.1061/(asce)0899-1561(2009)21:10(569)

[4] Jingsi Huo, Xiaohu Ren and Yan Xiao. Impact behavior of concrete-filled steel tubular stub columns under ISO-834 standard fire. China Civil Engineering Journal. 45(04), pp.9-20, (2012).

[5] M R Bambach. Design of hollow and concrete filled steel and stainless steel tubular columns for transverse impact loads. Thin-Walled Structures, 49(10), pp.1251-1260, (2011).

DOI: 10.1016/j.tws.2011.05.009

[6] Rui Wang, Linhai Han and Chuanchuan Hou. Behaviour of concrete filled steel tubular (CFST) members under lateral impact: experiment and FEA model. Journal of construction steel research, 80 (01), pp.188-201, (2013).

DOI: 10.1016/j.jcsr.2012.09.003

[7] Chuanchuan Hou. Study on Performance of Circular Concrete-filled Steel Tubular (CFST) Members under Low Velocity Transverse Impact. Journal of Tsinghua University. (2012).

[8] Zhong Tao, Linhai Han. Development in the research of concrete filled double-skin steel tubes[J]. Journal of Harbin Institute of Technology. 35, pp.144-146, (2003).

[9] Linhai Han. Concrete-filled steel tubular structures—theory and application. Sciencep. BJ. (2007).

[10] Hong Huang, Zhong Tao and Linhai Han. Mechanism of concrete-filled double-skin steel tubular columns(CHS inner and CHS outer) subjected to axial compression[J]. Industrial Construction Vol. 36, No. 11, 2006. 11-14.

DOI: 10.1016/j.jcsr.2003.11.008
