Substation Equipment Temperature Monitoring System Based on Heterogeneous Wireless Sensor Network

Abstract:

According to the records that the too-high temperature rise of equipment leaded to accidents easily, the temperature monitoring system based on ZigBee and GPRS, RS232 technology is designed. The perception layer uses the heterogeneous network topology by adding appropriate heterogeneous nodes to ordinary ones, which are much better than the ordinary in computing power, storage capacity, etc, and this topology structure extends transmission distance. Both of them use CC2530 chips, and the heterogeneous nodes are not only responsible for collecting temperature data, but also responsible for forwarding data from ordinary nodes. The sink nodes send alarm messages to staff by GPRS, and forward data from heterogeneous nodes to a PC via RS232. The system uses Visual Studio for software design to realize the function of data processing, display and storage, in order to achieve real-time monitoring of substation equipment and early warning.

You might also be interested in these eBooks

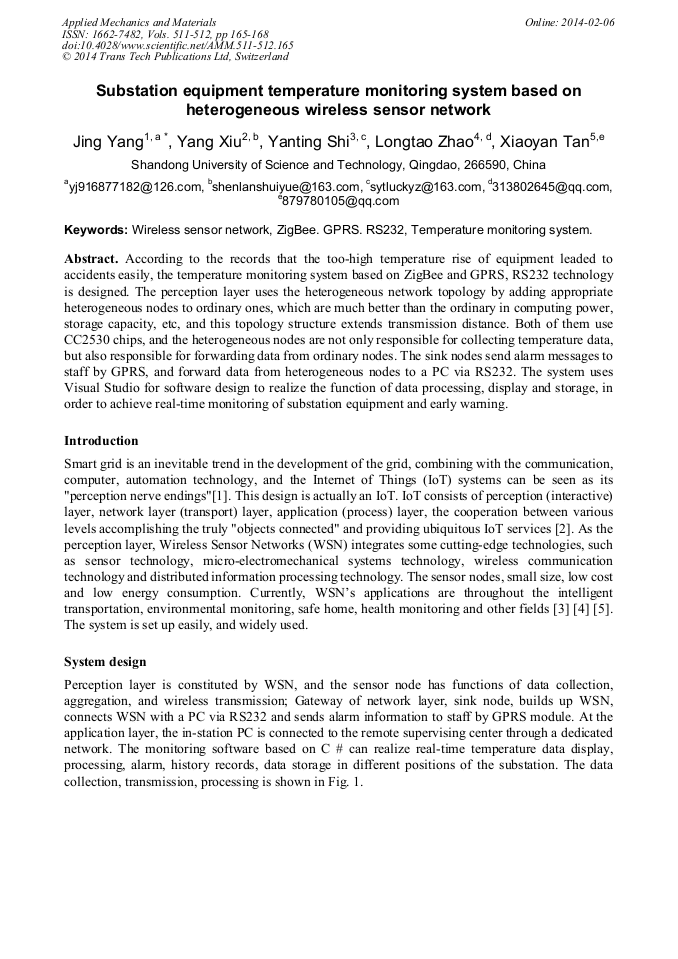

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 511-512)

Pages:

165-168

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.511-512.165

Citation:

Cite this paper

Online since:

February 2014

Authors:

Jing Yang*, Yang Xiu, Yan Ting Shi, Long Tao Zhao, Xiao Yan Tan

Keywords:

Temperature Monitoring System, Wireless Sensor Network (WSN), ZigBee. GPRS. RS232

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Jian-ming Liu, Xiang-zhen Li. The Internet of Things and Smart Grid[M] In Chinese. Beijing: Publishing House of Electronics Industry, 2012.

Google Scholar

[2] Yong-jun Xu, Yu Liu, Feng Wang. Key techniques in the Internet of Things[M] In Chinese. Beijing: Publishing House of Electronics Industry, 2012: 3.

Google Scholar

[3] Feng-yuan Ren, Hai-ning Huang, Chuang Lin. Wireless sensor network[J] In Chinese. Journal of Software, 2003, 14(7): 1282-1291.

Google Scholar

[4] Zu-Chang Ma, Yi-ning Sun, Tao Mei. Survey on wireless sensors network[J] In Chinese. Journal on Communications, 2004, 25(4): 114-124.

Google Scholar

[5] Ying-Guan Wang, Zhi Wang. Wireless sensor network[M] In Chinese. Beijing: Publishing House of Electronics Industry, 2012: 41.

Google Scholar

[6] Julia Case Bradley, Antia C. Millspaugh. Programming in Visual C# 2005[M]. Beijing: Tsinghua University Press, (2008).

Google Scholar
