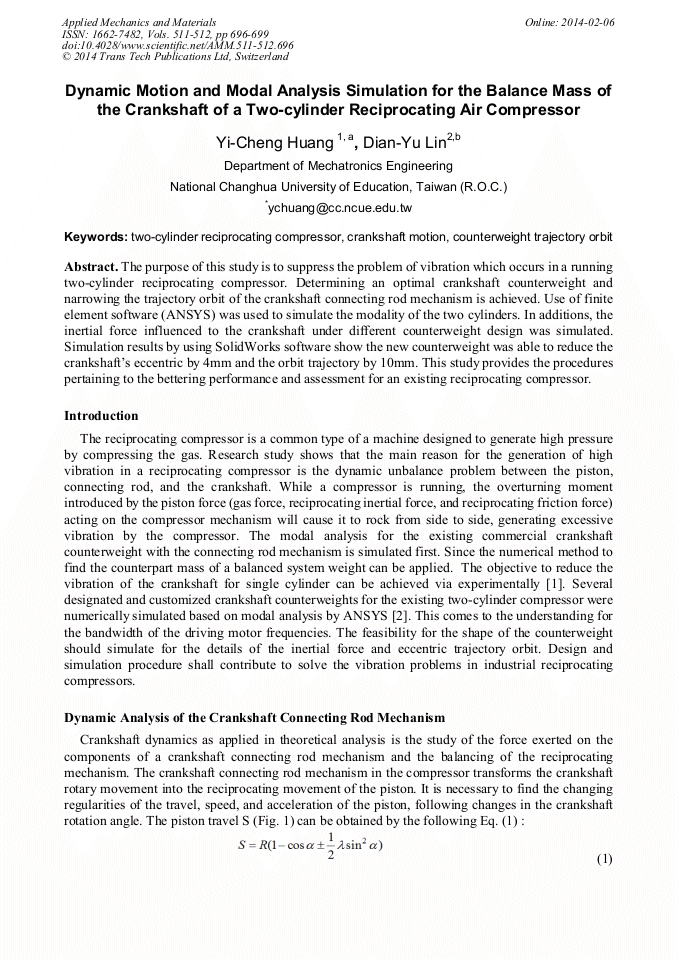

Dynamic Motion and Modal Analysis Simulation for the Balance Mass of the Crankshaft of a Two-Cylinder Reciprocating Air Compressor

Abstract:

The purpose of this study is to suppress the problem of vibration which occurs in a running two-cylinder reciprocating compressor. Determining an optimal crankshaft counterweight and narrowing the trajectory orbit of the crankshaft connecting rod mechanism is achieved. Use of finite element software (ANSYS) was used to simulate the modality of the two cylinders. In additions, the inertial force influenced to the crankshaft under different counterweight design was simulated. Simulation results by using SolidWorks software show the new counterweight was able to reduce the crankshafts eccentric by 4mm and the orbit trajectory by 10mm. This study provides the procedures pertaining to the bettering performance and assessment for an existing reciprocating compressor.

• Periodical: Applied Mechanics and Materials (Volumes 511-512)
• Pages: 696-699
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.511-512.696
• Online since: February 2014
• Authors: Yi Cheng Huang, Dain Yu Lin
• Keywords: Counterweight Trajectory Orbit, Crankshaft Motion, Two-Cylinder Reciprocating Compressor

References

[1] Yi-Cheng Huang and Fong-You Lee Dynamic Balancing Modal Analysis and Vibration Suppressing Design for Reciprocating Compressor, Journal of Applied Mechanics and Materials, Vols. 157-158, Mechatronics and Applied Mechanics, pp.996-999, Feb., (2012).

DOI: 10.4028/www.scientific.net/amm.157-158.996

[2] T. W. , Wu, The Design and Modal Analysis of the Dynamic Balance Mass for the Cranshaft of a Two-cylinder Reciprocating Air Compressor. master thesis, Department of Mechatronics Engineering, National Changhua University of Education, (2011).

[3] Y.C. Wu : Mathematical model and application of reciprocating compressors , Xi'an Jiaotong University Press, (1989).
