4-DOF Dynamic Model of the Container Crane Spreader

Abstract:

The sense of behaving reality in the container crane simulator depends on the dynamic model of the crane spreader in three-dimensional space. The movement of simulating objects in the crane container simulator is discussed. Simulating objects include gantry, trolley and spreader. The paper adopts the second Lagrange equation. Through reasonable hypothesis, 4-DOF dynamic model of the spreader is derived in the generalized coordinates system. With the different length of sling and acceleration of the trolley, 4-DOF model is analyzed by dynamic simulation. Matters needing attention are summarized for the process of container handling. At last the paper gives a simulation example.

You might also be interested in these eBooks

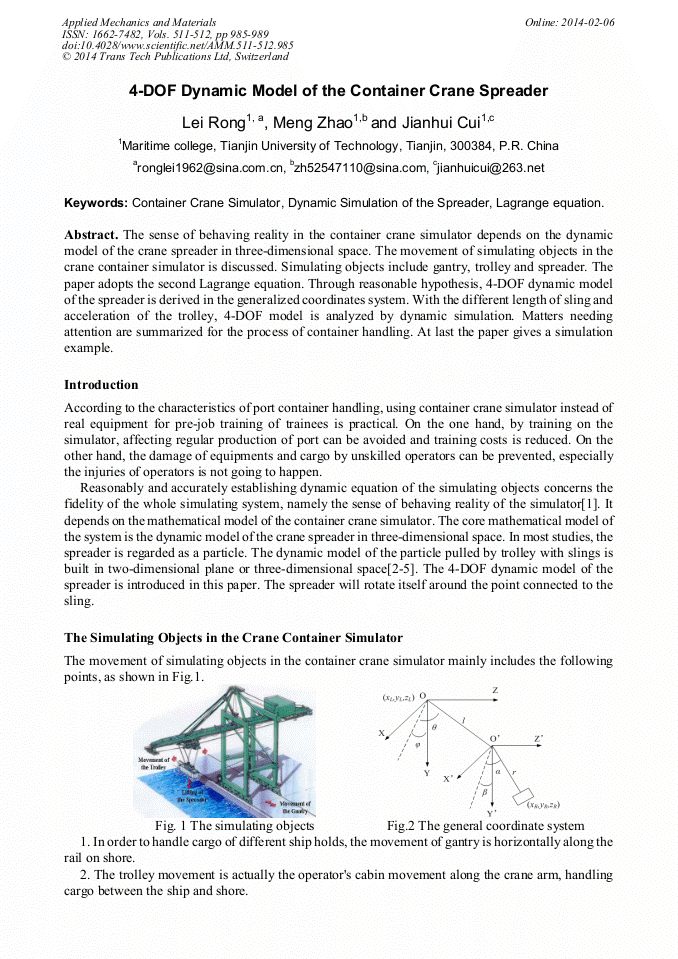

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 511-512)

Pages:

985-989

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.511-512.985

Citation:

Cite this paper

Online since:

February 2014

Authors:

Lei Rong, Meng Zhao*, Jian Hui Cui

Keywords:

Container Crane Simulator, Dynamic Simulation of the Spreader, Lagrange Equation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y.C. JIN, Y. Yin: STCW convention and the development of marine simulator. Journal of Dalian Maritime University. 2002, 28(3): 51-55. (In Chinese).

Google Scholar

[2] Y.S. Jung I.G. Jang : Advanced sensing system of crane spreader motion. 2012 IEEE International Systems Conference, Proceedings, pp.59-63, (2012).

Google Scholar

[3] Y. Pan, C.J. Liang: The Modeling of Main Hoist Mechanism of Quay Container Crane. ICIII 2011, v 3, pp.377-381, (2011).

DOI: 10.1109/iciii.2011.373

Google Scholar

[4] Q. H Ngo ,Y.G. Yu : Orientation control of a crane's spreader: Application on mobile harbor. International Conference on Control, Automation and Systems, pp.510-515, (2011).

Google Scholar

[5] H.G. Min, J.D. Cho: A study of anti-sway control for a ship-mounted container crane. Journal of Institute of Control, Robotics and Systems, v 16, n 8, pp.727-734, (2010).

DOI: 10.5302/j.icros.2010.16.8.727

Google Scholar

[6] Q. H Ngo , G.Y. Hong: Sway suppression of an offshore container crane. 2011 IEEE/SICE International Symposium on System Integration, SII 2011, pp.1388-1393, (2011).

DOI: 10.1109/sii.2011.6147652

Google Scholar
