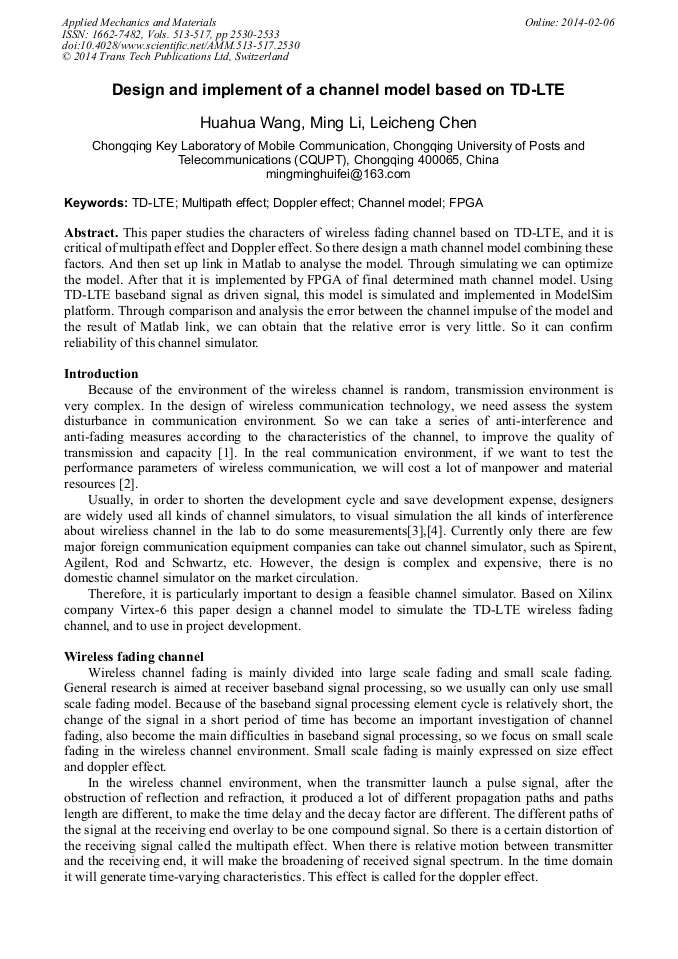

Design and Implement of a Channel Model Based on TD-LTE

Abstract:

This paper studies the characters of wireless fading channel based on TD-LTE, and it is critical of multipath effect and Doppler effect. So there design a math channel model combining these factors. And then set up link in Matlab to analyse the model. Through simulating we can optimize the model. After that it is implemented by FPGA of final determined math channel model. Using TD-LTE baseband signal as driven signal, this model is simulated and implemented in ModelSim platform. Through comparison and analysis the error between the channel impulse of the model and the result of Matlab link, we can obtain that the relative error is very little. So it can confirm reliability of this channel simulator.

• Periodical: Applied Mechanics and Materials (Volumes 513-517)
• Pages: 2530-2533
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.513-517.2530
• Online since: February 2014
• Authors: Hua Hua Wang*, Ming Li, Lei Cheng Chen
• Keywords: Channel Model, Doppler Effect, FPGA, Multipath Effect, TD-LTE

References

[1] Zhou Jiong-pan, Pang Qin-hua etc. Principle of Communication[M]. Beijing: Beijing University of posts and telecommunications press, (2005).

[2] Ye Pei-jun, An Jian-ping. The design and implementation of a mobile communication channel simulator[J]. Electronic technology application, 2004, 30(7)：44-47.

[3] Yang Hao, Sang Lin. Rayleigh fading channel Jakes model research and performance analysis [J]. Journal of modern telecommunication technology. 2012, (8) : 26-29.

[4] Ran Zhi-qiang, Wu Di, Guo Long-qing. Channel simulator application [J]. Journal of modern telecommunication technology, 2008, 42 (5) : 36 to 39.

[5] 2011. 3GPP TS 36. 104. Base Station (BS) radio transmission and reception[S]. 3rd Generation Partnership Project. (2010).

[6] Y.R. Zheng, C. Xiao．Simulation model with correct statistical properties for rayleigh fading channels[J]．IEEE Transactions on Communications，2003，51(6)：920-928.

DOI: 10.1109/tcomm.2003.813259

[7] Wang Hongshen, Moayeri N. Finite state Markov channel-a useful model for radio communication channels[J]. IEEE Trans Veh Technol. 44(1), 1995：163-171.

DOI: 10.1109/25.350282

[8] Li Jun. The wireless fading channel modeling and simulation study [D]. Xi an: xi , an university of electronic science and technology, (2008).

[9] Raimundo,X. Bit error rate comparison of MATLAB multipath fading channel simulator and measurement based channel simulator using real measurement data. /[C] Signals, Systems, and Electronics (ISSSE) . 2012: 1-6.

DOI: 10.1109/issse.2012.6374298

[10] Alimohammad,A. Modeling and Hardware Implementation Aspects of Fading Channel Simulatorsv[J]. Vehicular Technology, IEEE Transactions on. July 2008. 2055-(2069).

DOI: 10.1109/tvt.2007.914060

[11] Xia Yu-wen. Verilog digital system design course (second edition) [M]. Beijing: Beijing university of aeronautics and astronautics press, 2008: 5-176.
