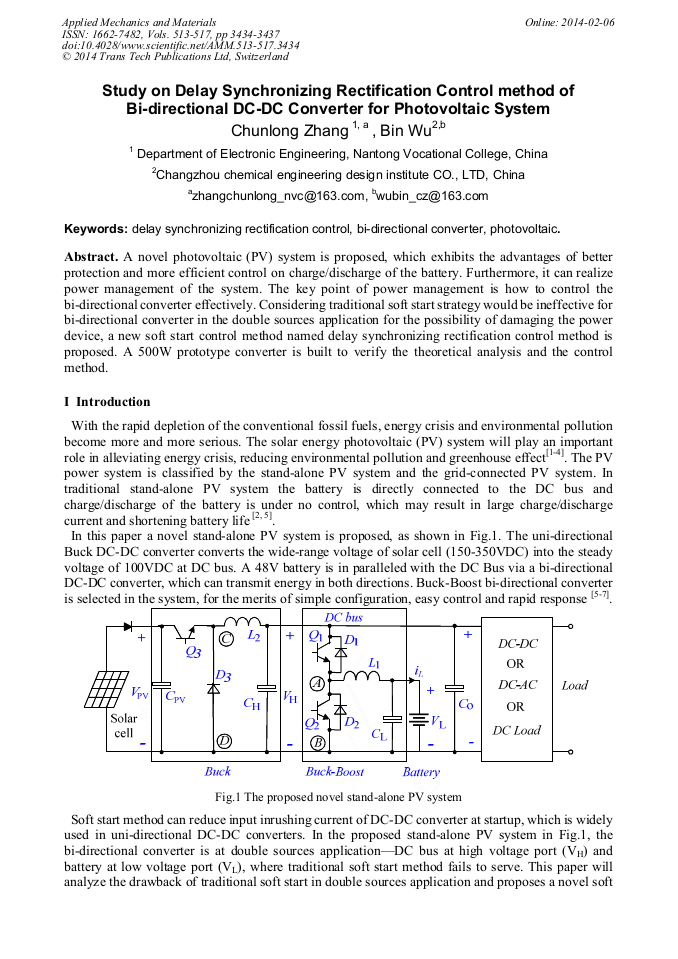

Study on Delay Synchronizing Rectification Control Method of Bi-Directional DC-DC Converter for Photovoltaic System

Abstract:

A novel photovoltaic (PV) system is proposed, which exhibits the advantages of better protection and more efficient control on charge/discharge of the battery. Furthermore, it can realize power management of the system. The key point of power management is how to control the bi-directional converter effectively. Considering traditional soft start strategy would be ineffective for bi-directional converter in the double sources application for the possibility of damaging the power device, a new soft start control method named delay synchronizing rectification control method is proposed. A 500W prototype converter is built to verify the theoretical analysis and the control method.

• Periodical: Applied Mechanics and Materials (Volumes 513-517)
• Pages: 3434-3437
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.513-517.3434
• Online since: February 2014
• Authors: Chun Long Zhang*, Bin Wu
• Keywords: Bi-Directional Converter, Delay Synchronizing Rectification Control, Photovoltaic (PV)

References

[1] Park J H, Ahn J Y, Cho B H and Yu G J. Dual-Module-Based Maximum Power Point Tracking Control of Photovoltaic Systems, IEEE Trans. Ind. Electron., Vol53, No. 4, 2006, pp.1036-1047.

DOI: 10.1109/tie.2006.878330

[2] Pacheco V M, Freitas L C, Vieira J B, Coelho E A A and Farias V J. Stand-alone photovoltaic energy storage system with maximum power point tracking, In Proc. IEEE APEC, 2003, pp.97-102.

DOI: 10.1109/apec.2003.1179182

[3] Esram T, Kimball J W, Krein P T, Chapman P L and Midya P. Dynamic Maximum Power Point Tracking of Photovoltaic Arrays Using Ripple Correlation Control, IEEE Trans. Power Electron., Vol21, No. 5, 2006, pp.1282-1291.

DOI: 10.1109/tpel.2006.880242

[4] Koizumi H and Kurokawa K. A Novel Maximum Power Point Tracking Method for PV Module Integrated Converter, In Proc. IEEE PESC, 2005, p.2081-(2086).

DOI: 10.1109/pesc.2005.1581919

[5] Duryea S, Islam S and Lawrance W. A battery management system for stand-alone photovoltaic energy systems, IEEE Industry Applications Magazine, Vol7, No. 3, pp.67-72.

DOI: 10.1109/2943.922452

[6] D.M. Sable, F.C. Lee and B.H. Cho, A zero-voltage-switching bidirectional battery charger/discharger for the NASA EOS satellite, in Proc. IEEE APEC, 1992, pp.614-621.

DOI: 10.1109/apec.1992.228354

[7] J.N. Marie-Francoise, H. Gualous and A. Berthon, DC to DC converter with neural network control for on-board electrical power management, in Proc. IEEE IPEMC, 2004, Vol. 2, pp.521-525.

DOI: 10.1109/epe.2005.219615
