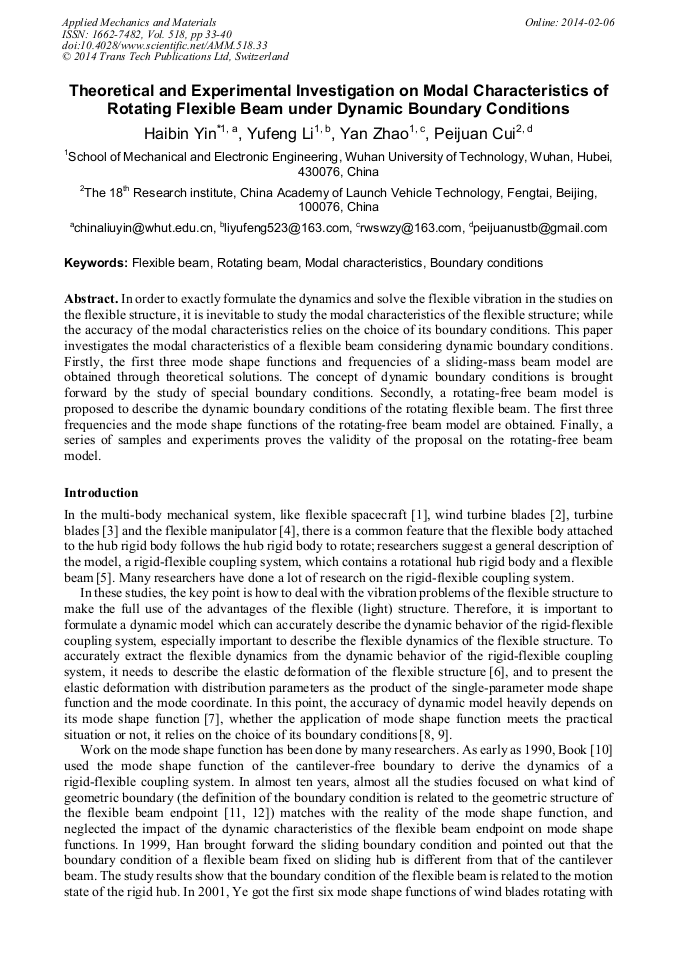

Theoretical and Experimental Investigation on Modal Characteristics of Rotating Flexible Beam under Dynamic Boundary Conditions

Abstract:

In order to exactly formulate the dynamics and solve the flexible vibration in the studies on the flexible structure, it is inevitable to study the modal characteristics of the flexible structure; while the accuracy of the modal characteristics relies on the choice of its boundary conditions. This paper investigates the modal characteristics of a flexible beam considering dynamic boundary conditions. Firstly, the first three mode shape functions and frequencies of a sliding-mass beam model are obtained through theoretical solutions. The concept of dynamic boundary conditions is brought forward by the study of special boundary conditions. Secondly, a rotating-free beam model is proposed to describe the dynamic boundary conditions of the rotating flexible beam. The first three frequencies and the mode shape functions of the rotating-free beam model are obtained. Finally, a series of samples and experiments proves the validity of the proposal on the rotating-free beam model.

• Periodical: Applied Mechanics and Materials (Volume 518)
• Pages: 33-40
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.518.33
• Online since: February 2014
• Authors: Hai Bin Yin*, Yu Feng Li, Yan Zhao, Pei Juan Cui
• Keywords: Boundary Condition, Flexible Beam, Modal Characteristics, Rotating Beam

References

[1] G. Qu, New Progress in Application of Dynamics Modeling of Flexible Spacecraft, Professional committee of spacecraft sys. eng. Chinese society of astronautics, 2004, 312-321. (In Chinese).

[2] G. Han, Y. Wu, Y. Wang and Z. Liu, Dynamic analysis of a rotating blade with a rigid-flexible coupling, pre-twisted angle and variable cross-section，J. of Harbin Eng. University, 2011, 32(6): 736-741. (In Chinese).

[3] B. Zhu and H. Wu, Dynamic Stress Calculation of Steam Turbine Blade, Journal of Xi'an Jiaotong University, 2000, 34(1): 26-29. (In Chinese).

[4] Y. Song, Y. Yu, C. Zhang and J. Ma，Summary on the Study of Dynamics Analysis and Vibration Control of Flexible Robots, Machine Design, 2003, 20(4): 1-4. (In Chinese).

[5] D. Zhang and Z. Zhu, Dynamic Stiffening of Rigid-flexible Coupling System, Journal of Nanjing University of Science and Technology, 2006, 30(1): 21-25. (In Chinese).

[6] H. Yin, Y. Kobayashi, Y. Hoshino and T. Emaru, Modeling and Vibration Analysis of Flexible Robotic Arm under Fast Motion in Consideration of Nonlinearity, Journal of System Design and Dynamics, 2011, 5(5): 909-924.

DOI: 10.1299/jsdd.5.909

[7] S. K. Dwivedy and P. Eberhard, Dynamic analysis of flexible manipulator, a literature review. Mechanism and Machine Theory, 2006, 41: 749-777.

DOI: 10.1016/j.mechmachtheory.2006.01.014

[8] S. LI and H. Liu, Vibration Analysis on Complex Boundaries Model of Aero-engine's Vane, Machine Design & Research, 2008, 24(6): 60-63. (In Chinese).

[9] J. Chen, D. Sheng, J. Chen, W. Li and H. Ren, Research on Boundary Conditions of T Steam Turbine Blade by Finite Element Model Analysis, Power Eng., 2004, 24(4): 510-513. (In Chinese).

[10] W. J. Book, Modeling, Design and Control of Flexible Manipulator Arms: a Tutorial Review, The IEEE Conference on Decision and Control, 1990, 500-506.

DOI: 10.1109/cdc.1990.203648

[11] A. A. Shabana, Resonance Conditions and Deformable Body Co-ordinate Systems, Journal of Sound and Vibration, 1996, 192(1): 389-398.

DOI: 10.1006/jsvi.1996.0193

[12] R. Schwertassek, O. Walleapp and A. A. Shabara, Flexible multibody simulation and choice of shape functions, Nonlinear Dynamics, 1999, 20: 361-380.

[13] Z. Ye, H. Ma, K. Ding, N. Bao and R. Cao, Experimental Model Ananlysis of the Rotor Blade of the Horizontal Axis Wind Turbine, Acta Energiae Solaris Sinica，2001, 22(4): 473-476. (In Chinese).

[14] C. Mei, Differential transformation approach for free vibration analysis of a centrifugally stiffened Timoshenko beam, ASME Journal of Vibration and Acoustics, 2006, 128: 170-175.

DOI: 10.1115/1.2172260

[15] Ö. Özdemir and M. O. Kaya, Flapwise bending vibration analysis of a rotating tapered cantilever Bernoulli-Euler beam by differential transform method, J. of Sound and Vib., 2006, 289: 413-420.

DOI: 10.1016/j.jsv.2005.01.055

[16] Y. A. Abdelgalil and N. G. Chalhoub, Effects of fuzzy-tuning the boundary conditions on the active control of a single-link flexible robotic manipulator, 2006 ASME International mechanical Engineering Congress and Exposition.

DOI: 10.1115/imece2006-15935

[17] C. Song, M. Wang, Z. Tang, Dynamic Responses of Beams with Flexible Supports Subject to Transversal Impact, J. of PLA University of Sci. and Tech. ，2008, 9(2): 151-155. (In Chinese).

[18] K. H. Low, and M. W. S. Lau, Experimental investigation of the boundary condition of slewing beams using a high-speed camera system, Mechanism and Machine Theory, 1995, 30(4): 629-643.

DOI: 10.1016/0094-114x(94)00058-s

[19] H. Yin, Y. Kobayashi, Y. Hoshino and T. Emaru, Experimental Investigation on Decomposed Dynamic Control Considering the Nonlinearity of Flexible Robotic Arm, 2011 Proceedings of the SICE Annual Conference, 2011, 935-939.

DOI: 10.1299/jsdd.5.219
