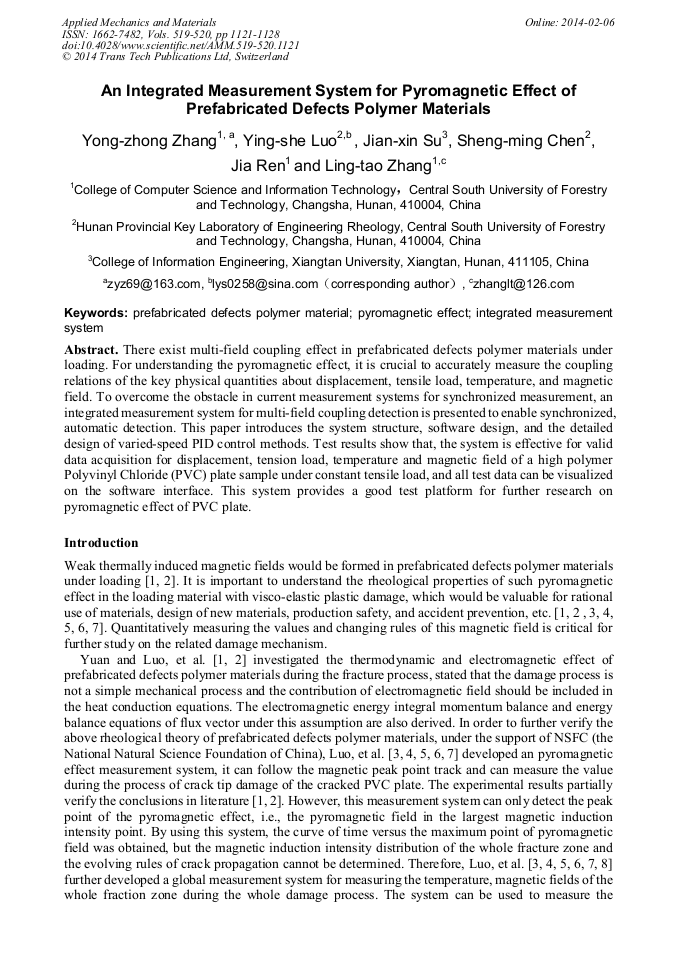

An Integrated Measurement System for Pyromagnetic Effect of Prefabricated Defects Polymer Materials

Abstract:

There exist multi-field coupling effect in prefabricated defects polymer materials under loading. For understanding the pyromagnetic effect, it is crucial to accurately measure the coupling relations of the key physical quantities about displacement, tensile load, temperature, and magnetic field. To overcome the obstacle in current measurement systems for synchronized measurement, an integrated measurement system for multi-field coupling detection is presented to enable synchronized, automatic detection. This paper introduces the system structure, software design, and the detailed design of varied-speed PID control methods. Test results show that, the system is effective for valid data acquisition for displacement, tension load, temperature and magnetic field of a high polymer Polyvinyl Chloride (PVC) plate sample under constant tensile load, and all test data can be visualized on the software interface. This system provides a good test platform for further research on pyromagnetic effect of PVC plate.

• Periodical: Applied Mechanics and Materials (Volumes 519-520)
• Pages: 1121-1128
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.519-520.1121
• Online since: February 2014
• Authors: Yong Zhong Zhang, Ying She Luo*, Jian Xin Su, Sheng Ming Chen, Jia Ren, Ling Tao Zhang
• Keywords: Integrated Measurement System, Prefabricated Defects Polymer Material, Pyromagnetic Effect

References

[1] L.W. Yuan. Natural Science Journal of Xiangtan University, Vol. 19(3) (1997), pp.29-37 （in Chinese）.

[2] L.W. Yuan. Damage theory and its application of prefabricated defects rheological materials (Science Press, Beijing 2001). （in Chinese）.

[3] J.X. Su, Y.S. Luo, X.H. Deng, et al. Natural Science Journal of Xiangtan University, Vol. 24(3) (2002), pp.60-63（in Chinese）.

[4] Y.Z. Zhang, Y.S. Luo, J.X. Su, et al. Journal of Central South University of Technology, Vol. 15(s1)( 2008), pp.229-233.

[5] Z.Y. Yang, Y.S. Luo, J.X. Su, et al. Journal of Central South University of Technalogy, Vol. 15(s1)( 2008), pp.568-572.

[6] Y.S. Luo, S.M. Chen, L. Zhang, et al. Korea-Australia Rheology Journal, Vol. 24(3)(2012), pp.205-210.

[7] L. Zhang. Research on pyromagnetic effect of prefabricated defects polymer materials (Central South University of Forestry and Technology Master Thesis, Changsha 2011). （in Chinese）.

[8] J.X. Su, Y.S. Luo, Y.Z. Zhang, et al. Instrument technique and sensor, Vol. 6(1) (2010), pp.81-84 . （in Chinese）.

[9] A. Sun. ARM Cortex-M3 embedded development examples-based on NXP LPC1768 (Beihang University Press, Beijing 2012). （in Chinese）.

[10] J. Wang, M. Sui. LabWindows/CVI virtual instrument design technology (Chemical Industry Press, Beijing 2013). （in Chinese）.

[11] B. Shao. The embedded operating system µ C\OS-II (Second Edition) (Beihang University Press, Beijing 2003). （in Chinese）.

[12] Y. Zhang. Embedded real-time operating system μ C/OS-III application-based on ARM Cortex-M3 LPC1788 (Beihang University press, Beijing 2013). （in Chinese）.

[13] J. Liu. Advanced PID control: MATLAB simulation (Publishing House of Electronics Industry, Beijing 2004). （in Chinese）.
