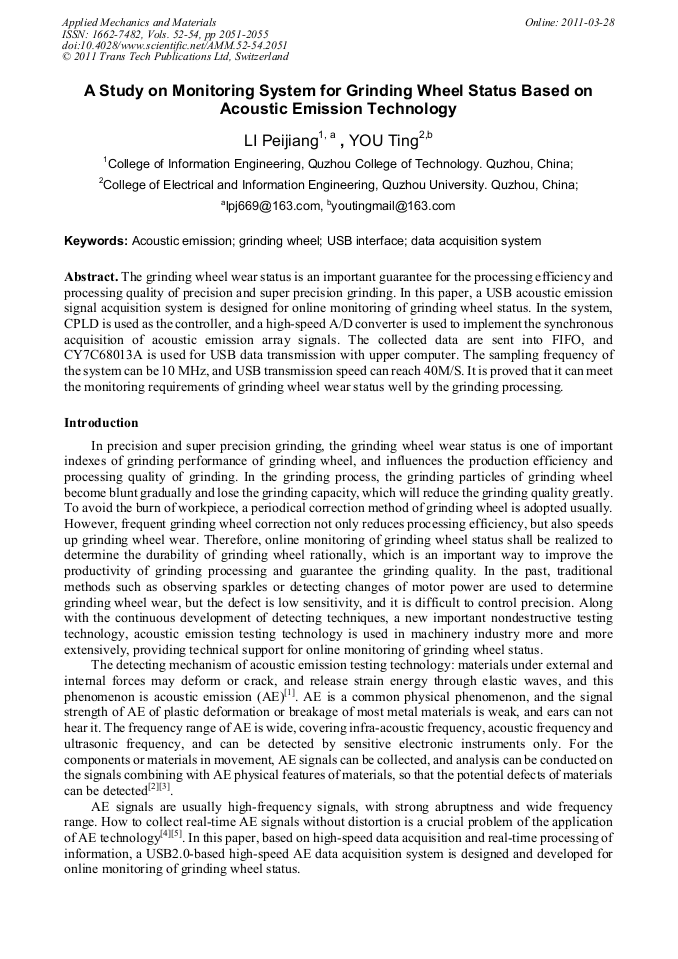

A Study on Monitoring System for Grinding Wheel Status Based on Acoustic Emission Technology

Abstract:

The grinding wheel wear status is an important guarantee for the processing efficiency and processing quality of precision and super precision grinding. In this paper, a USB acoustic emission signal acquisition system is designed for online monitoring of grinding wheel status. In the system, CPLD is used as the controller, and a high-speed A/D converter is used to implement the synchronous acquisition of acoustic emission array signals. The collected data are sent into FIFO, and CY7C68013A is used for USB data transmission with upper computer. The sampling frequency of the system can be 10 MHz, and USB transmission speed can reach 40M/S. It is proved that it can meet the monitoring requirements of grinding wheel wear status well by the grinding processing.

• Periodical: Applied Mechanics and Materials (Volumes 52-54)
• Pages: 2051-2055
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.52-54.2051
• Online since: March 2011
• Authors: Pei Jiang Li, Ting You
• Keywords: Acoustic Emission (AE), Data Acquisition System, Grinding Wheel, USB Interface

References

[1] Editors Committee of Training Textbook of Qualification and Certification for NDT Personnel of Defense Industry. Acoustic Emission Testing [M]. Beijing: China Machine Press, (2005).

[2] YANG Yingjun, QIN Li, et al. The design of multichannel high speed data acquisition system [J]. Control & Automation, 2008, 24 (2-2): 169-170.

[3] YANG Ruifeng and MA Tiehua. A Study on the Applications of Acoustic Emission Technique [J]. Journal of North University of China (Natural Science Edition), 2006, 27(5): 456-461.

[4] Sell J. Overview of new Acoustic Emission(AT) Systems[C] . EWGAE, 2004: 691-698.

[5] TONG Guanjun and WANG Ruli. Development of Multi-Channels Acoustic Emission High-Speed Data Acquisition System [J]. Nondestructive Testing. 2009, 31(2): 150-153.

[6] Yuyama,S., Yokoyama,K., Niitani,K. et al, Detection and evaluation of failures in high-strength tendon of prestressed concrete bridges by acoustic emission [J]. Construction and Building Materials, 2007, 21(3): 491~500.

DOI: 10.1016/j.conbuildmat.2006.04.010

[7] Fricker,S., Vogel,T., Site installation and testing of a continuous acoustic monitoring [J], Construction and Building Materials, 2007, 21(3): 501 ~510.

DOI: 10.1016/j.conbuildmat.2006.04.008

[8] Carpinteri, A., Lacidogna, G, Damage monitoring of an historical masonry building by the acoustic emission technique [J], Materials and Structures, 2007, 39(2): 161~167.

DOI: 10.1617/s11527-005-9043-2
