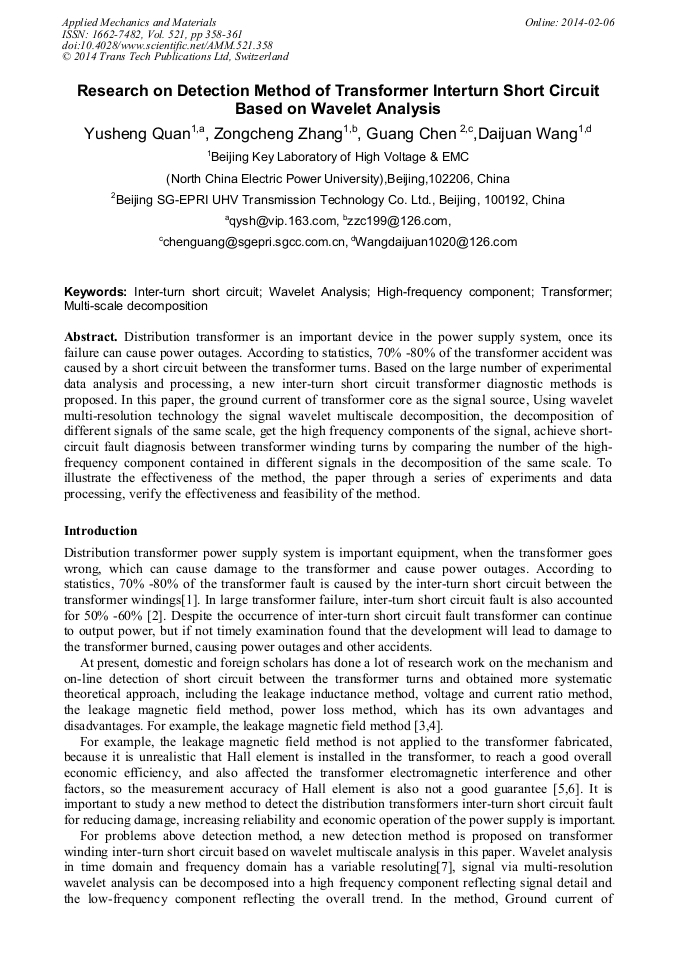

Research on Detection Method of Transformer Interturn Short Circuit Based on Wavelet Analysis

Abstract:

Distribution transformer is an important device in the power supply system, once its failure can cause power outages. According to statistics, 70% -80% of the transformer accident was caused by a short circuit between the transformer turns. Based on the large number of experimental data analysis and processing, a new inter-turn short circuit transformer diagnostic methods is proposed. In this paper, the ground current of transformer core as the signal source, Using wavelet multi-resolution technology the signal wavelet multiscale decomposition, the decomposition of different signals of the same scale, get the high frequency components of the signal, achieve short-circuit fault diagnosis between transformer winding turns by comparing the number of the high-frequency component contained in different signals in the decomposition of the same scale. To illustrate the effectiveness of the method, the paper through a series of experiments and data processing, verify the effectiveness and feasibility of the method.

• Periodical: Applied Mechanics and Materials (Volume 521)
• Pages: 358-361
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.521.358
• Online since: February 2014
• Authors: Yu Sheng Quan, Zong Cheng Zhang*, Guang Chen, Dai Juan Wang
• Keywords: High-Frequency Component, Inter-Turn Short Circuit, Multi-Scale Decomposition, Transformer, Wavelet Analysis

References

[1] Jennifer Yick, Biswanath Mukherjee, Dipak Ghosal. Wireless sensornetwork survey[J]． Computer Networks, 2008, 52( 12) : 2292-2330.

DOI: 10.1016/j.comnet.2008.04.002

[2] Gronowski B. Applications of insulation resistance and high direct voltage ramp tests to the assessment of insulation systems of hydro generator stator bars and coils[J]. Conference Record of the 2006 IEEE International Symposium on Electrical Insulation, 2006: 392-395.

DOI: 10.1109/elinsl.2006.1665340

[3] Slade PG. Interpretation of Low DC Current Measurements of a Transformer's Winding Resistance and the Effect of the Tapchanger's Contacts[J]. 2010 Proceedings of the 56th IEEE Holm Coference on HOLM, 4-7 Oct. (2010).

DOI: 10.1109/holm.2010.5619571

[4] Maina R, Tumiatti V. Dielectric Loss Characteristics of Copper-Contaminated Transformer Oils[J]. IEEE Transactions on Power Delivery, 2010：1673 – 1677.

DOI: 10.1109/tpwrd.2010.2043693

[5] Kurita H, Hasegawa T. Dielectric loss of high voltage/high frequency transformers used in switching power supply for space[J]. Power Electronics Specialists Conference, 1988：1120 – 1126.

DOI: 10.1109/pesc.1988.18252

[6] Paillat T, Moreau O, Touchard G. Flow electrification in transformers: correlation between winding leakage current and pressboard charge accumulation[J]. Electrical Insulation and Dielectric Phenomena, 2000, ：85 - 88.

DOI: 10.1109/ceidp.2000.885233

[7] Jin E S , Liu L L, Bo ZQ. Parameter Identification of the Transformer Winding based on Least-Squares Method[J]. Power and Energy Society General Meeting - Conversion and Delivery of Electrical Energy in the 21st Century, 2008：1-6.

DOI: 10.1109/pes.2008.4596453
