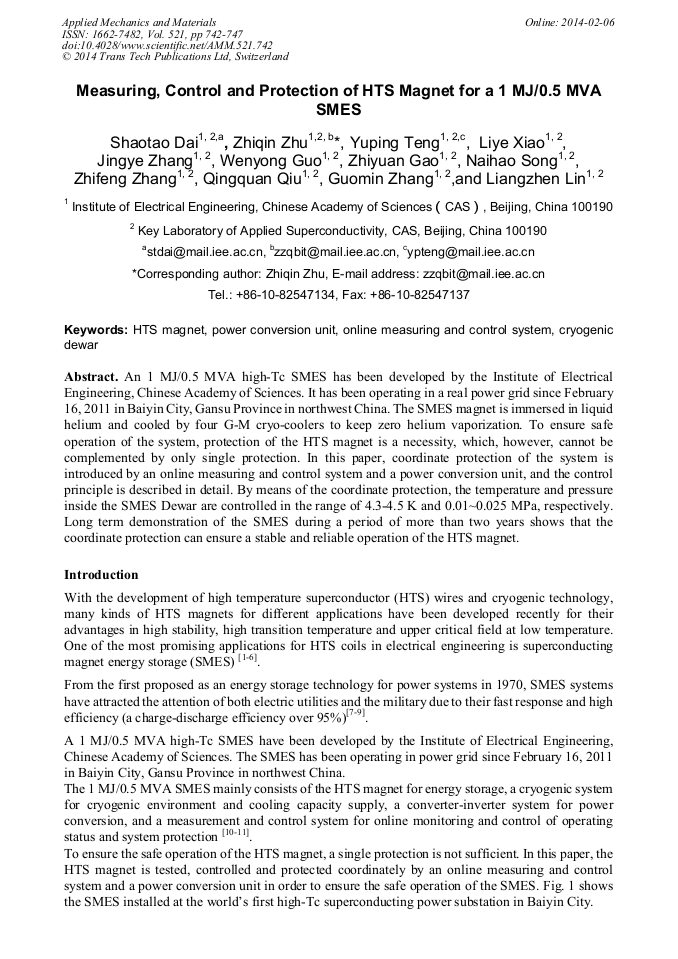

Measuring, Control and Protection of HTS Magnet for a 1 MJ/0.5 MVA SMES

Abstract:

An 1 MJ/0.5 MVA high-Tc SMES has been developed by the Institute of Electrical Engineering, Chinese Academy of Sciences. It has been operating in a real power grid since February 16, 2011 in Baiyin City, Gansu Province in northwest China. The SMES magnet is immersed in liquid helium and cooled by four G-M cryo-coolers to keep zero helium vaporization. To ensure safe operation of the system, protection of the HTS magnet is a necessity, which, however, cannot be complemented by only single protection. In this paper, coordinate protection of the system is introduced by an online measuring and control system and a power conversion unit, and the control principle is described in detail. By means of the coordinate protection, the temperature and pressure inside the SMES Dewar are controlled in the range of 4.3-4.5 K and 0.01~0.025 MPa, respectively. Long term demonstration of the SMES during a period of more than two years shows that the coordinate protection can ensure a stable and reliable operation of the HTS magnet.

• Periodical: Applied Mechanics and Materials (Volume 521)
• Pages: 742-747
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.521.742
• Online since: February 2014
• Authors: Shao Tao Dai, Zhi Qin Zhu*, Yu Ping Teng, Li Ye Xiao, Jing Ye Zhang, Wen Yong Guo, Zhi Yuan Gao, Nai Hao Song, Zhi Feng Zhang, Qing Quan Qiu, Guo Min Zhang, Liang Zhen Lin
• Keywords: Cryogenic Dewar, HTS Magnet, Online Measuring and Control System, Power Conversion Unit

References

[1] P. F. Ribeiro, B. K. Johnson, and M. L. Crow et al., Energy storage systems for advanced power applications, Proceedings of the IEEE, vol. 89, no. 12, p.1744–1756, (2001).

DOI: 10.1109/5.975900

[2] S. Vazquez, S. M. Lukic, and E. Galvan et al., Energy storage systemsfor transport and grid applications, IEEE Trans. Industrial Electronics, vol. 57, no. 12, p.3881–3895, (2010).

DOI: 10.1109/tie.2010.2076414

[3] P. Goel, B. Singh, S. Murthy, and N. Kishore, Isolated wind-hydro hybrid system using cage generators and battery storage, IEEE Trans. Industrial Electronics, vol. 58, no. 4, p.1141–1152, (2011).

DOI: 10.1109/tie.2009.2037646

[4] Y. Xin, H. Hong, J.Z. Wang, W.Z. Gong, J.Y. Zhang, A. L. Ren, M.R. Zi, Z.Q. Xiong, D.J. Si and F. Ye, Performance of the 35kV/90MVA SFCL in Live-Grid Fault Current Limiting Tests, IEEE Transactions on Applied Superconductivity, vol. 21, no. 3, pp.1294-1297, June (2011).

DOI: 10.1109/tasc.2011.2105452

[5] Hossien Heydari, Vahid Abbasi, Faramarz Faghihi, Impact of Swithching-Induced Electromagnetic Interference on Low-Voltage Cables in Substations, IEEE Transactions on Electromagnetic Compatibility, vol. 51, no. 4, pp.937-944, November. (2009).

DOI: 10.1109/temc.2009.2028236

[6] L.Y. Xiao and L.Z. Lin, Recent Progress of Power Application of Superconductors in China, IEEE Transaction on Applied Superconductivity, vol. 17, no. 2, pp.2355-2360, Jun. (2007).

DOI: 10.1109/tasc.2007.898160

[7] L.Y. Xiao, Z.K. Wang, S.T. Dai, J.Y. Zhang, D. Zhang, Z.Y. Gao, N.H. Song, F.Y. Zhang, X. Xu, and L.Z. Lin , Fabrication and Tests of a 1MJ HTS Magnet for SMES, IEEE Transaction on Applied Superconductivity, vol. 18, no. 2, pp.770-773, Jun. (2008).

DOI: 10.1109/tasc.2008.922234

[8] D. Hui, Z.K. Wang, J.Y. Zhang, D. Zhang, S.T. Dai, C.H. Zhao, Z.Q. Zhu, H.D. Li, Z.F. Zhang, Y. Guan and L.Y. Xiao, Development and Test of 10. 5 kV/1. 5 kA HTS Fault Current Limiter, IEEE Transaction on Applied Superconductivity, vol. 16, no. 2, pp.687-690, Jun. (2006).

DOI: 10.1109/tasc.2006.871209

[9] L.Y. Xiao, S.T. Dai, L.Z. Lin, J.Y. Zhang, W.Y. Guo, D. Zhang, Z.Y. Gao, N.H. Song, Y.P. Teng, Z.Q. Zhu, G.M. Zhang, F.Y. Zhang, X. Xu, W.W. Zhou, Q.Q. Qiu, and H.D. Li, Development of the World's First HTS Power Substation, IEEE Transactions on Applied Superconductivity, vol. 22, no. 3, June (2012).

DOI: 10.1109/tasc.2011.2176089

[10] G.M. Zhang, S.T. Dai, N.H. Song, Z.Q. Zhu, J.Y. Zhang, W.Y. Guo, D. Zhang, Z.F. Zhang, L.Y. Xiao, and L.Z. Lin, The Construction Progress of a High-Tc Superconducting Power Substation in China, IEEE Transactions on Applied Superconductivity, vol. 21, no. 3, pp.2824-2827, June (2011).

DOI: 10.1109/tasc.2010.2098471

[11] Zhiqin, Zhu; Shaotao, Dai; Yuping, Teng; Zhifeng, Zhang; Qingquan, Qiu; Wenyong, Guo; Zhiyuan, Gao; Jingye, Zhang; Liye, Xiao; Liangzhen, Lin, A Real-time Measuring and Control System for the World's First HTS Power Substation, Applied Superconductivity，IEEE Transactions on, Volume: 23, Issue: 3, Part: 2, 2013, Page(s): 5000404.

DOI: 10.1109/tasc.2013.2241111
