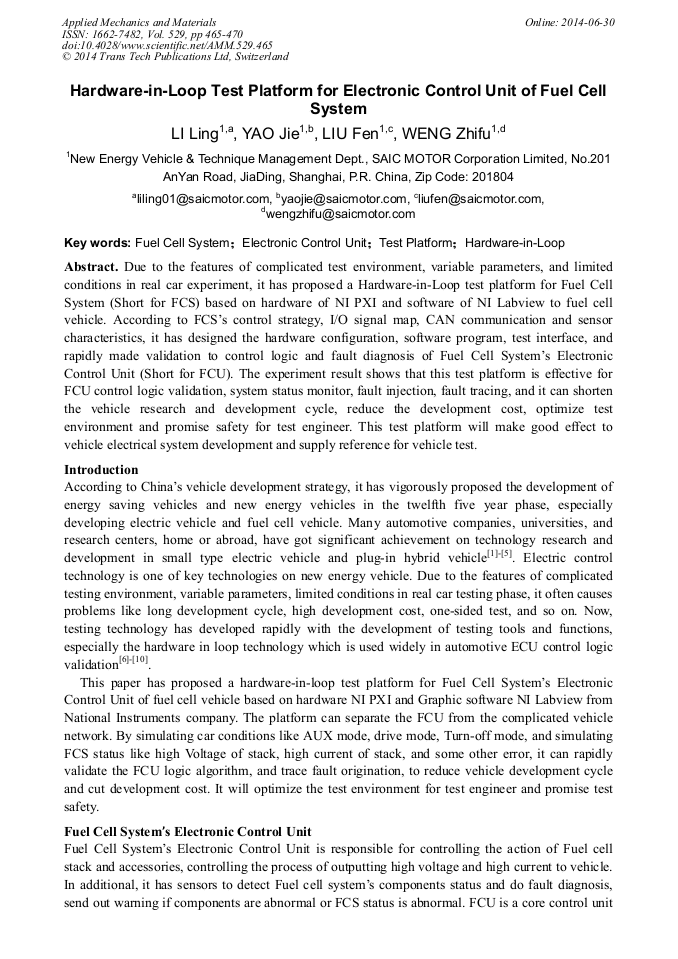

Hardware-In-Loop Test Platform for Electronic Control Unit of Fuel Cell System

Abstract:

Due to the features of complicated test environment, variable parameters, and limited conditions in real car experiment, it has proposed a Hardware-in-Loop test platform for Fuel Cell System (Short for FCS) based on hardware of NI PXI and software of NI Labview to fuel cell vehicle. According to FCS’s control strategy, I/O signal map, CAN communication and sensor characteristics, it has designed the hardware configuration, software program, test interface, and rapidly made validation to control logic and fault diagnosis of Fuel Cell System’s Electronic Control Unit (Short for FCU). The experiment result shows that this test platform is effective for FCU control logic validation, system status monitor, fault injection, fault tracing, and it can shorten the vehicle research and development cycle, reduce the development cost, optimize test environment and promise safety for test engineer. This test platform will make good effect to vehicle electrical system development and supply reference for vehicle test.

• Periodical: Applied Mechanics and Materials (Volume 529)
• Pages: 465-470
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.529.465
• Online since: June 2014
• Authors: Ling Li*, Jie Yao, Fen Liu, Zhi Fu Weng
• Keywords: Electronic Control Unit, Fuel Cell System, Hardware-in-Loop, Test Platform

References

[1] Yin Yaobao, Li Ling: Pneumatic Mechanism of Gas Cooled or Heated Through a Throttle Orifice[J]. Applied Mechanics and Materials. Vol. 141(2012), pp.408-412.

DOI: 10.4028/www.scientific.net/amm.141.408

[2] Seung Hun Jung: Experimental study of Gas humidification with injectors for automotive PEM fuel cell system[J]. Journal of Power Sources. Vol. 170(2012), pp.324-333.

DOI: 10.1016/j.jpowsour.2007.04.013

[3] Wang Binglong, Lin Qi, Liang Weiming: The Hydrogen Management System based on ESX controller[J]. Shanghai Auto. Vol. 1(2012), pp.17-20.

[4] E. BELLE: Simulink-based corddesign and cosimulation of a ommon-railTM injector test bench[J]. Journal of Circuits, System, and Computers. Vol. 2(2003), pp.100-102.

[5] Kou Gaihong, Li Ling, Liang Weiming, etc: Modeling and Simulation of Hydrogen Management System based on Plug-in Fuel Cell Vehicle[J]. Shanghai Auto. Vol. 5(2012), pp.6-11.

[6] Wu Yannan: CAN Bus Testing Technology[J]. 2006 Hirain Technology User Conference MATLAB&Simulink Technology Forum Paper. Vol. 1(2006), pp.350-353.

[7] Yin Dawei, Li Benwei, Fan Zhaoyuan, etc: Aeroengine Hardware-in-loop Simulation Platform Based on DSPACE and Its Application[J]. 2006 Hirain Technology User Conference MATLAB&Simulink Technology Forum Paper. Vol. 1(2006), pp.70-72.

[8] Wu Zhaohui: The Application of dSPACE in a hardware in loop simulation of a flier control system[J]. 2006 Hirain Technology User Conference MATLAB&Simulink Technology Forum Paper. Vol. 1(2006), pp.78-82.

[9] Li Ling, Lai Xunian, Liang Weiming, etc: Research and development of Test Platform for Plug-In Fuel Cell Vehicle's Hydrogen Management System[J]. Applied Mechanics and Materials. Vol. 241-244(2013), pp.721-727.

DOI: 10.4028/www.scientific.net/amm.241-244.721

[10] Agung Prayitno, Olive Kubumwe, Hans Bosma, etc: Efficiency of Polymer Electrolyte Membrane Fuel Cell Stack[J]. TELKOMNIKA. Vol. 9(2011), pp.303-310.

DOI: 10.12928/telkomnika.v9i2.701
