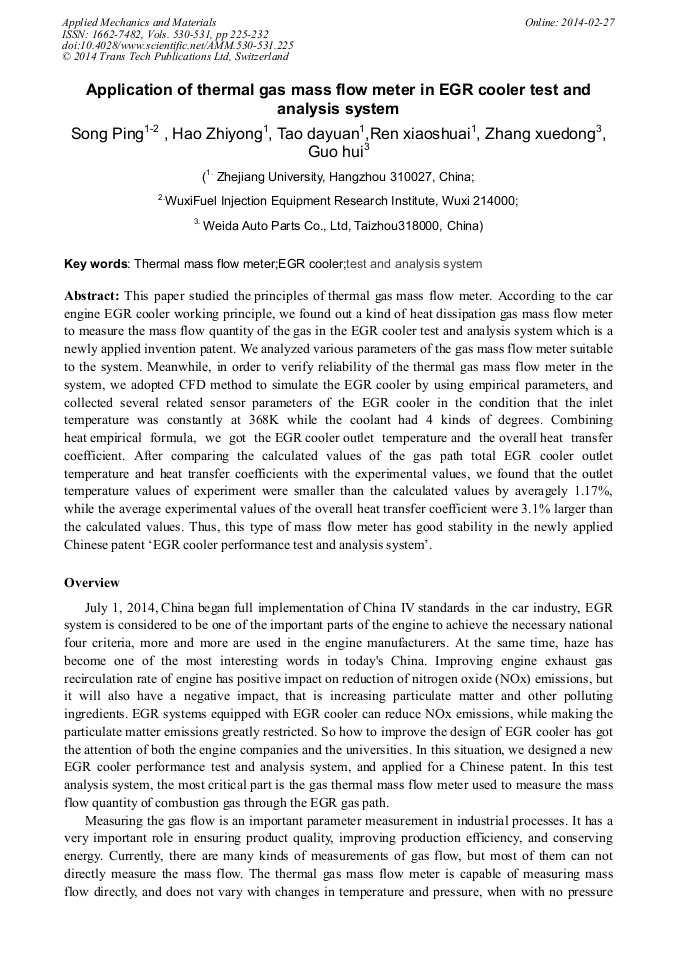

Application of Thermal Gas Mass Flow Meter in EGR Cooler Test and Analysis System

Abstract:

This paper studied the principles of thermal gas mass flow meter. According to the car engine EGR cooler working principle, we found out a kind of heat dissipation gas mass flow meter to measure the mass flow quantity of the gas in the EGR cooler test and analysis system which is a newly applied invention patent. We analyzed various parameters of the gas mass flow meter suitable to the system. Meanwhile, in order to verify reliability of the thermal gas mass flow meter in the system, we adopted CFD method to simulate the EGR cooler by using empirical parameters, and collected several related sensor parameters of the EGR cooler in the condition that the inlet temperature was constantly at 368K while the coolant had 4 kinds of degrees. Combining heat empirical formula, we got the EGR cooler outlet temperature and the overall heat transfer coefficient. After comparing the calculated values of the gas path total EGR cooler outlet temperature and heat transfer coefficients with the experimental values, we found that the outlet temperature values of experiment were smaller than the calculated values by averagely 1.17%, while the average experimental values of the overall heat transfer coefficient were 3.1% larger than the calculated values. Thus, this type of mass flow meter has good stability in the newly applied Chinese patent EGR cooler performance test and analysis system.

• Periodical: Applied Mechanics and Materials (Volumes 530-531)
• Pages: 225-232
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.530-531.225
• Online since: February 2014
• Authors: Ping Song, Zhi Yong Hao, Da Yuan Tao, Xiao Shuai Ren, Xue Dong Zhang, Hui Guo
• Keywords: EGR Cooler, Test and Analysis System, Thermal Mass Flow Meter

References

[1] Kejie Li. Modern Sensor Technology. Beijing: Electronic Industry Press, 2005. In Chinese.

[2] Jichang Huang, Qiaoyu Xu, Haigui Zhang. Sensor working principle and application examples．Beijing：Posts & Telephone Press, 1998. In Chinese.

[3] Jie Jian, Nanmin Huang. The research of industrial thermal gas mass flow meter used in pipeline gas flow measurement[J]. Chengdu, 1997(6): 16-19. In Chinese.

[4] J.L. KWZ. Characteristics and applications of industrial thermal mass flow transmitters. Instrument society of America 9247th Annual symposium.

[5] Shihua He. Application of thermal Gas Mass Flow meter in Measurement of methane gas[J]. Anqing, 2000(1): 56-59. In Chinese.

[6] Churchill S W, Bernstein M. A correlation equation for forced convection from gases and liquids to a circular cylinder in cross flow. ASME J Heat Transfer, 1977, 99(1): 300-306.

DOI: 10.1115/1.3450685

[7] Li H D, Kottke V. Effect of baffle spacing on pressure drop and local heat transfer in shell-and-tube heat exchangers for staggered tube arrangement[J]. Int J Heat Mass Transfer, 1998(1): 1303-1311.

DOI: 10.1016/s0017-9310(97)00201-9

[8] Li H D，Kottke V. Visualization and determination of local heat transfer coefficients in shell-and-tube heat exchangers for staggered tube arrangement by mass transfer measurements[J]. Experimental Thermal and Fluid Science，1998(17): 210-216.

DOI: 10.1016/s0894-1777(97)10064-4
