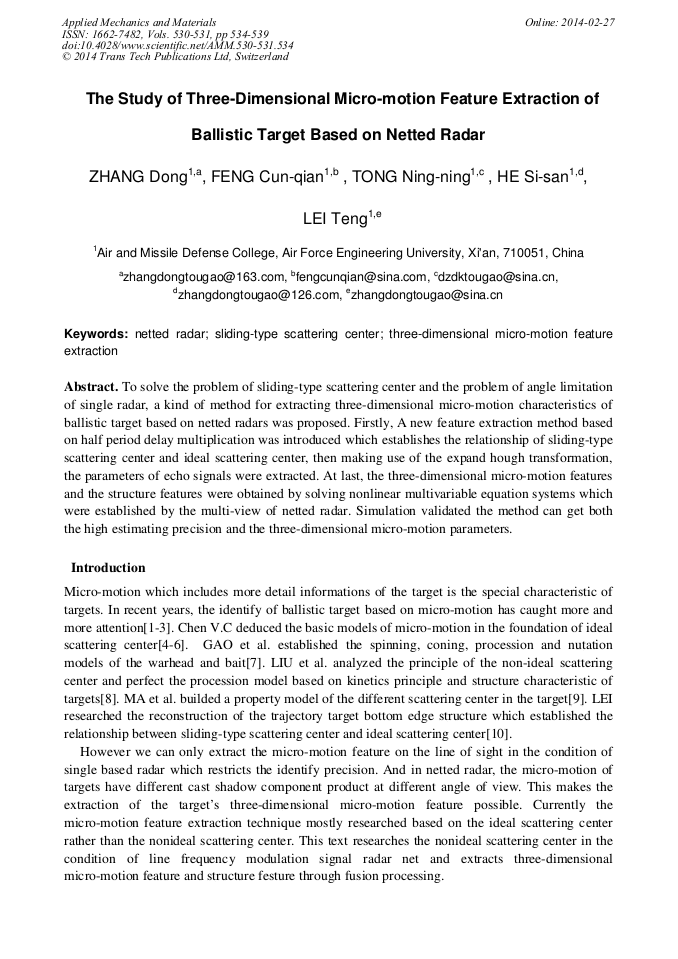

The Study of Three-Dimensional Micro-Motion Feature Extraction of Ballistic Target Based on Netted Radar

Abstract:

To solve the problem of sliding-type scattering center and the problem of angle limitation of single radar, a kind of method for extracting three-dimensional micro-motion characteristics of ballistic target based on netted radars was proposed. Firstly, A new feature extraction method based on half period delay multiplication was introduced which establishes the relationship of sliding-type scattering center and ideal scattering center, then making use of the expand hough transformation, the parameters of echo signals were extracted. At last, the three-dimensional micro-motion features and the structure features were obtained by solving nonlinear multivariable equation systems which were established by the multi-view of netted radar. Simulation validated the method can get both the high estimating precision and the three-dimensional micro-motion parameters.

• Periodical: Applied Mechanics and Materials (Volumes 530-531)
• Pages: 534-539
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.530-531.534
• Online since: February 2014
• Authors: Dong Zhang*, Cun Qian Feng, Ning Ning Tong, Si San He, Teng Lei
• Keywords: Netted Radar, Sliding-Type Scattering Center, Three-Dimensional Micro-Motion Feature Extraction

References

[1] Lu Wang, Hongwei Liu. Joural of Electronics ＆Information Technology, 2010, 32(8): 1812-1817. （In Chinese）.

[2] Ying Luo, Long Chi, Qun Zhang, et al. A Novel Method for Extraction of Micro-Doppler Signal[C]/IEEE 2007 International Symposium on Microwave Antenna Propagation and EMC Technologies for Wireless Communications. Hangzhou: IEEE Press, 2007: 1458-1462.

DOI: 10.1109/mape.2007.4393555

[3] Youchun Yang, Ningning Tong, Cunqian Feng, et al. Journal of Xidian University, 2012, 39(6): 147-153. （In Chinese）.

[4] Chen V C. IET Signal Processing, 2008, 2(3): 291-300.

[5] Chen V C, Li F. IEEE Proc Radar Sonar Navig, 2003, 150(4): 271-276.

[6] Chen V C. Analysis of Radar Micro-Doppler Signature with Time-frequency Transform [C]/ Proceedings of IEEE Workshop on Statistical Signal and Array Processing. [S.L. ]: IEEE press, 2000: 463-466.

DOI: 10.1109/ssap.2000.870167

[7] Hongwei Gao, Lianggui Xie, Shuliang Wen, et al. Systems Engineering and Electronics, 2008, 30(1): 50-52. （In Chinese）.

[8] Jin Liu, Xuesong Wang, Liang Ma, et al. Acta Aeronautica et Astronautica Sinica, 2010, 31(5): 1014-1023. （In Chinese）.

[9] Liang Ma, Jin Liu, Tao Wang, et al. Science in China, 2011, 41(5): 605-616. （In Chinese）.

[10] Teng Lei. Micro-motion Signature Extraction and 3D Reconstruction of Radar Targets[D]. Xi'an: Air Force Engineering University, 2012. （In Chinese）.
