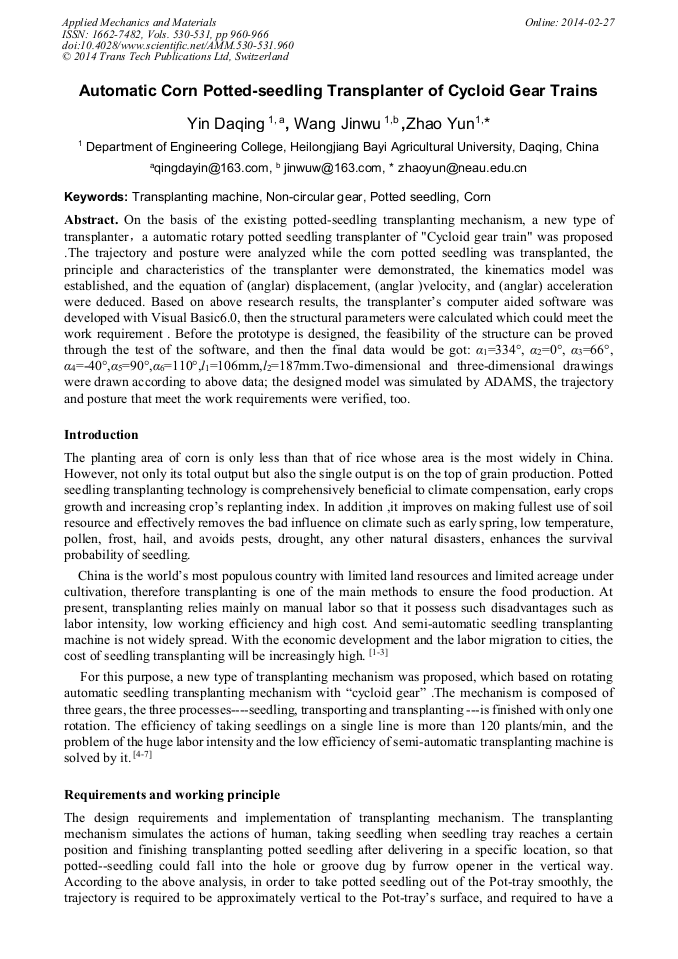

Automatic Corn Potted-Seedling Transplanter of Cycloid Gear Trains

Abstract:

On the basis of the existing potted-seedling transplanting mechanism, a new type of transplanter,a automatic rotary potted seedling transplanter of "Cycloid gear train" was proposed .The trajectory and posture were analyzed while the corn potted seedling was transplanted, the principle and characteristics of the transplanter were demonstrated, the kinematics model was established, and the equation of (anglar) displacement, (anglar ) velocity, and (anglar) acceleration were deduced. Based on above research results, the transplanters computer aided software was developed with Visual Basic6.0, then the structural parameters were calculated which could meet the work requirement . Before the prototype is designed, the feasibility of the structure can be proved through the test of the software, and then the final data would be got: α₁=334°, α₂=0°, α₃=66°, α₄=-40°,α₅=90°,α₆=110°,l₁=106mm,l₂=187mm.Two-dimensional and three-dimensional drawings were drawn according to above data; the designed model was simulated by ADAMS, the trajectory and posture that meet the work requirements were verified, too.

• Periodical: Applied Mechanics and Materials (Volumes 530-531)
• Pages: 960-966
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.530-531.960
• Online since: February 2014
• Authors: Da Qing Yin, Jin Wu Wang, Yun Zhao*
• Keywords: Corn, Non-Circular Gear, Potted Seedling, Transplanting Machine

References

[1] Feng jun, Gu Shikang Ceng Aijun, etc. Transactions of CSAE, 14(1998), p.108.

[2] Zhang Shouqin, Ma Chenglin Ma Xu, etc. Transactions of CSAE, 24(1993), p.107.

[3] Fang xianfa. Agricultural Machinery, 1(2010), p.35.

[4] Edathiparambil Vareed Thomas. Mechanism and Machine Theory, 37(2002), p.395.

[5] Ye Bingliang, Yu Gaohong, Chen Zhiwei, et al. Transactions of the CSAE, 27(2011), p.7. (In Chinese with English abstract).

[6] Wu Xutang , Wang Guihai. The transmission of non-uniform non-circular gear and non-uniform ratio (Beijing Mechanical press, China 1997).

[7] Taitian Hao. Mechanical Engineers, 5(1996), p.54.

[8] Xu Liming, Zhang Tiezhong, Shi Zhiqing. Transactions of China Agricultural University, 5 (2000), p.58.

[9] TAKEYAMA T, Japan, Patent 2003-76923(2003).

[10] CHOI W C，KIM D C，RYU I H，et al. Transactions of the ASAE, 45(2001), p.13.

[11] Qu Bin Wang Fenglin. The entire guide to Visual Basic program (Beijing: electronic industry press, China 2009).

[12] Zhao Yun. Computer aided analysis and design of agricultural machinery (Beijing: Qing Hua university press, China 1998).

[13] Fan Yunxiang, Yang Ziwang, Lin Yuxiang, et al. Tansactions of the CSAM, 25(1994), p.26. (in Chinese with English abstract).

[14] Li Ge, Zhao Yun, Yu Gaohong. Transactions of the CSAE, 16(2000), p.78. (in Chinese with English abstract).

[15] Li Ge, Chen Xiaoming, Yu Gaohong, et al. Transactions of the CSAM, 38(2007), p.44. (in Chinese with English abstract).

[16] Yu Gaohong, Zhang Weiwei, sun liang, et al. Transactions of CSAE, 27(2011), p.100.

[17] Yu Gaohong, Chen Zhiwei, Zhao Yun, et al. Transactions of CSAE, 48 (2012), p.32. (in Chinese with English abstract).

[18] Chen Jianneng, Hang Zeqian, Wang Ying, etc. Transactions of CSAE, 3(2012), p.6.

[19] Zhao Xiong, Chen, Jianneng. Wang Ying, Zhao Yun, etc. Transactions of the CSAE, 4 (2012), p.92.

[20] Zhao Yun. Analysis and comprehensive of agricultural machinery (Beijing: Mechanical Press, China 2009).

[21] Zhao Yun， Yu Gaohong，Chen Jianneng，et al. Transactions of the CJME, 36(2000), p.37.
