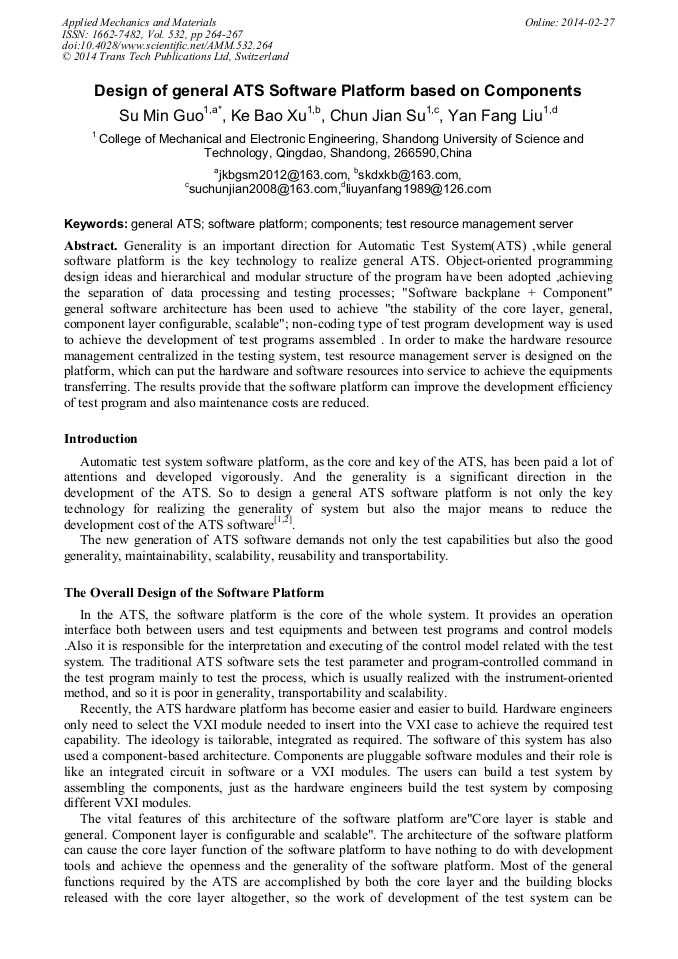

Design of General ATS Software Platform Based on Components

Abstract:

Generality is an important direction for Automatic Test System (ATS) ,while general software platform is the key technology to realize general ATS. Object-oriented programming design ideas and hierarchical and modular structure of the program have been adopted ,achieving the separation of data processing and testing processes; "Software backplane + Component" general software architecture has been used to achieve "the stability of the core layer, general, component layer configurable, scalable"; non-coding type of test program development way is used to achieve the development of test programs assembled . In order to make the hardware resource management centralized in the testing system, test resource management server is designed on the platform, which can put the hardware and software resources into service to achieve the equipments transferring. The results provide that the software platform can improve the development efficiency of test program and also maintenance costs are reduced.

• Periodical: Applied Mechanics and Materials (Volume 532)
• Pages: 264-267
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.532.264
• Online since: February 2014
• Authors: Su Min Guo*, Ke Bao Xu, Chun Jian Su, Yan Fang Liu
• Keywords: Component, General ATS, Software Platform, Test Resource Management Server

References

[1] Shen Zhen, Dai Yingxia, Yang Jiangping, Research and Design of the General ATE Software Platform, J. Computer Engineering and Applications, 2005 (09): 229-232. (in Chinese).

[2] Yang Wen, Huang Wen-tao, Software design and implementation of general automatic test system,J. Industrial Control Computer, 2012, (01): 79-80+83. (in Chinese).

[3] Liu Qi, He Yu-zhu, Design of universal ATS software framework based on signal,J. Electronic Electronic Measurement Technology, 2012, (12): 46-49+86. (in Chinese).
