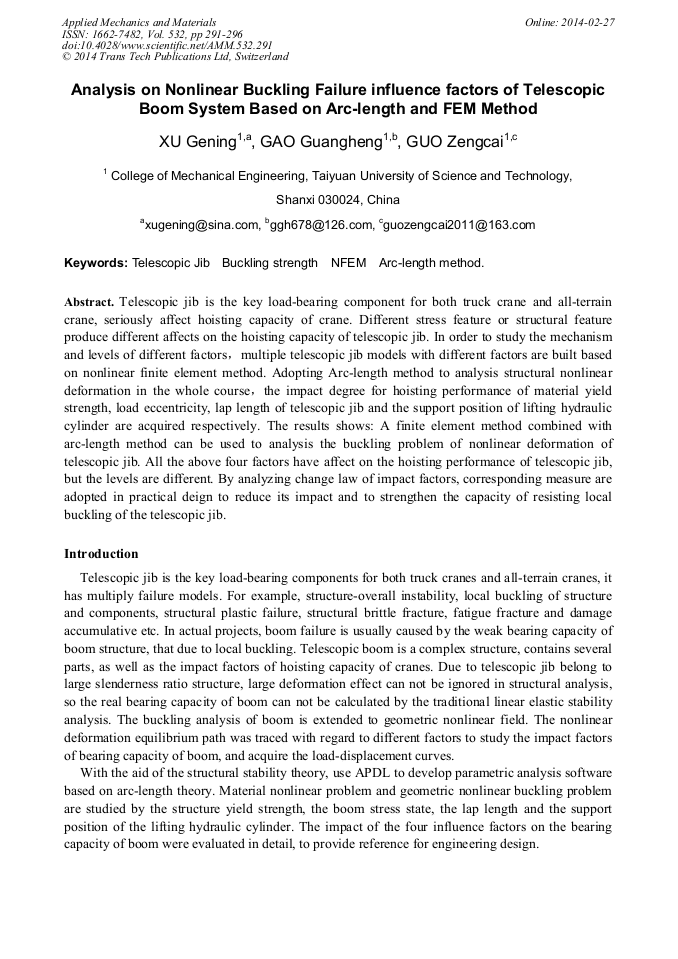

Analysis on Nonlinear Buckling Failure Influence Factors of Telescopic Boom System Based on Arc-Length and FEM Method

Abstract:

Telescopic jib is the key load-bearing component for both truck crane and all-terrain crane,seriously affect hoisting capacity of crane. Different stress feature or structural feature produce different affects on the hoisting capacity of telescopic jib. In order to study the mechanism and levels of different factors,multiple telescopic jib models with different factors are built based on nonlinear finite element method. Adopting Arc-length method to analysis structural nonlinear deformation in the whole course,the impact degree for hoisting performance of material yield strength, load eccentricity, lap length of telescopic jib and the support position of lifting hydraulic cylinder are acquired respectively. The results shows: A finite element method combined with arc-length method can be used to analysis the buckling problem of nonlinear deformation of telescopic jib. All the above four factors have affect on the hoisting performance of telescopic jib, but the levels are different. By analyzing change law of impact factors, corresponding measure are adopted in practical deign to reduce its impact and to strengthen the capacity of resisting local buckling of the telescopic jib.

• Periodical: Applied Mechanics and Materials (Volume 532)
• Pages: 291-296
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.532.291
• Online since: February 2014
• Authors: Ge Ning Xu, Guang Heng Gao, Zeng Cai Guo
• Keywords: Arc-Length Method, Buckling Strength, NFEM, Telescopic Jib

References

[1] SHEN Zuyan, CHEN Yangji. Primary of Steel Structures [M]. Beijing：China Architecture & Building Press, 2001: 57-58.

[2] WANG Xin, MA Qing, TENG Rumin, et al. Ansys based simplified model for calculating elastic stability of crawler crane's boom [J]. Hoisting and Conveying Machinery, 2009 (11)：15-19.

[3] YANG Xiujuan. Numerical simulation analysis of stability on large-scale hoist mast at hoist [J]. Journal of the University of Petroleum, China (Edition of Natural Science), 2004，28 (6) : 90-93.

[4] WANG Xucheng, SHAO Min. The basic principle of the finite element method and numerical method (2th ed) [M]. Beijing：Tsinghua University Press, 2003, 531-564.

[5] XU Gening. Mechanical Equipment and Metal Structure Design (2th ed) [M]. Beijing：China Machine Press, (2009).

[6] JI Aimin, ZHANG Peiqiang, PENG Duo, et al. Finite Element Analysis for Local Stability of Telescopic Boom of Truck Crane [J]. , Transactions of the Chinese Society for Agricultural Machinery, 2004, 35(6) ：48-51.

[7] GUO Yaosong, ZHANG Xinzhong, ZHANG Dawei. Finite element analysis of boom structures of truck crane [J]. Agricultural Equipment & Vehicle Engineering, 2009, 7 ：9-11.

[8] CHENG Peng. HAN Gang, WANG Jian. Finite element analysis and structure optimization of telescopic boom of truck crane [J]. Construct Machinery, 2012, 8：88-91.

[9] WANG Xinmin. ANSYS Numerical analysis of engineering structures [M]. Beijing：China Communications Press, (2007).

[10] LIU Xiangchun, LI Chenfeng, REN Huilong, et al. Nolinear finite element of buckling analysis of large span frame [J]. Ship Science and Technology, 2013, 35(1) ：46-50.

[11] LING Xiangwei, PEI Junfeng, WANG Luyu. Buckling analysis of JJ225/43-K type drilling rig derrick [J]. Chemical Engineering & Machinery, 2010, 37(3) ：347-350.
