Modal Testing and Parameters' Identification of Spray Boom

Abstract:

In order to research dynamic characteristics of the spray boom, this paper described a modal testing about a self-designed spray boom, the testing introduced the way that multi points and multi directions exciting, one point and one direction response to obtain the FRFs, after importing the dates to the computer, accorded to the stability diagram which calculated based on STAR7 from the obtained FRFs, four physical poles of the spray boom in the band between 0.25Hz and 30Hz were determined, then, two kinds of curve fitting method (POLYNOMIAL, GLOBAL) were used to identify the modal parameters. The result showed: the modal parameters identified through POLYNOMIAL curve fitting method is more accurate. For the first frequency of spray boom is 8.97Hz, in the band of ground exciting frequency. This may lead to spray booms deformation easily. So, to optimize the spray boom by increase the first frequency is necessary.

You might also be interested in these eBooks

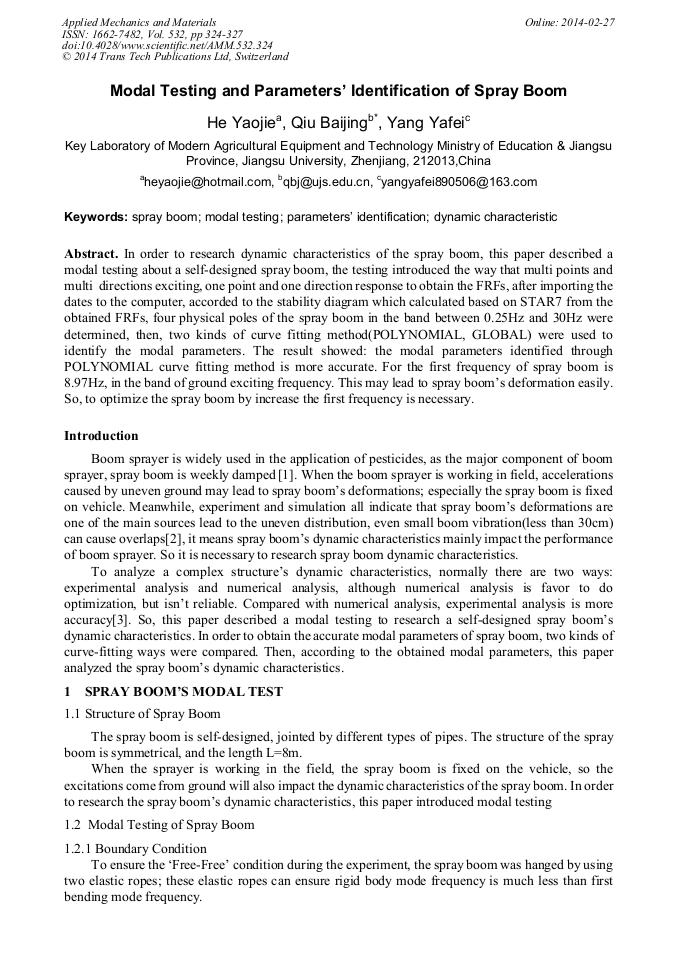

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 532)

Pages:

324-327

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.532.324

Citation:

Cite this paper

Online since:

February 2014

Authors:

Yao Jie He, Bai Jing Qiu*, Ya Fei Yang

Keywords:

Dynamic Characteristic, Modal Testing, Parameters’ Identification, Spray Boom

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J. Anthonis, H. Ramon, Design of an active suspension to suppress the horizontal vibrations of a spray boom. Journal of Sound and Vibration 2003, 266(3): 573–583.

DOI: 10.1016/s0022-460x(03)00585-6

Google Scholar

[2] Speelman L, Jansen J W. The effect of spray-boom movement on the liquid distribution of field crop sprayers. Journal of Agricultural Engineering Research, 1974, 19(1): 117－129.

DOI: 10.1016/0021-8634(74)90027-4

Google Scholar

[3] Ward Heylen, Stefan Lammens, Paul Sas. Modal Analysis Theory and Testing. Beijing: Beijing Institute of Technology Press.

Google Scholar

[4] Han qingkai, Yu Tao, Du Wu et al. Experiment Modal Measurement and Dynamical Analysis for 6 Link Parallel robot. Journal of Vibration Engineering, 2003, 16(3): 349-353.

Google Scholar

[5] P Kennes, J Anthonis, L Clijmans, et al. Construction of a portable test rig to perform experimental modal analysis on mobile agricultural machinery. Journal of Sound and Vibration. 1999, 228(2): 421-441.

DOI: 10.1006/jsvi.1999.2412

Google Scholar
