Dynamics Simulation of Large Tower Structure Lifting Process Based on CABLE Modeling

Hong Zhi Zhang; Xuan Yu Sheng

doi:10.4028/www.scientific.net/AMM.533.145

Paper Titles

Analysis of Structure Technology and Sports Buildings Design Factors
p.123

Analysis on the Impact of the Backstays Forms on the Performance of Inclined Tower Cable-Stayed Bridge
p.127

Analysis on the Development of Residential Building Energy Conservation
p.135

Chaotic Threshold for Axial Loaded Beam Bridge under Moving Loads
p.140

Dynamics Simulation of Large Tower Structure Lifting Process Based on CABLE Modeling
p.145

Influence of Wave Passage Effect on Seismic Response of Truss String Structure Co-Working with its Base Frame
p.154

Blast Vibration Response of Tunnel Influenced by Confining Pressure and Surrounding Rock Type
p.159

Numerical Simulation of Frame Structure Blasting Demolition under Explosive Loading
p.164

Numerical Analysis on the Failure Process of Jointed Rock under the Effect of Seepage
p.170

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 533Dynamics Simulation of Large Tower Structure...

Dynamics Simulation of Large Tower Structure Lifting Process Based on CABLE Modeling

Abstract:

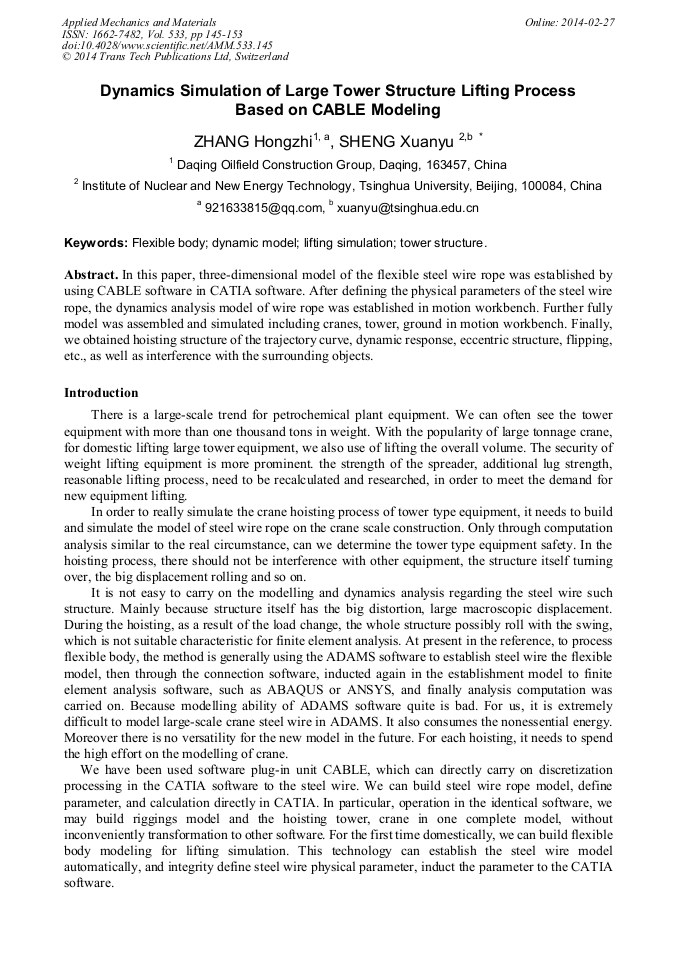

In this paper, three-dimensional model of the flexible steel wire rope was established by using CABLE software in CATIA software. After defining the physical parameters of the steel wire rope, the dynamics analysis model of wire rope was established in motion workbench. Further fully model was assembled and simulated including cranes, tower, ground in motion workbench. Finally, we obtained hoisting structure of the trajectory curve, dynamic response, eccentric structure, flipping, etc., as well as interference with the surrounding objects.
