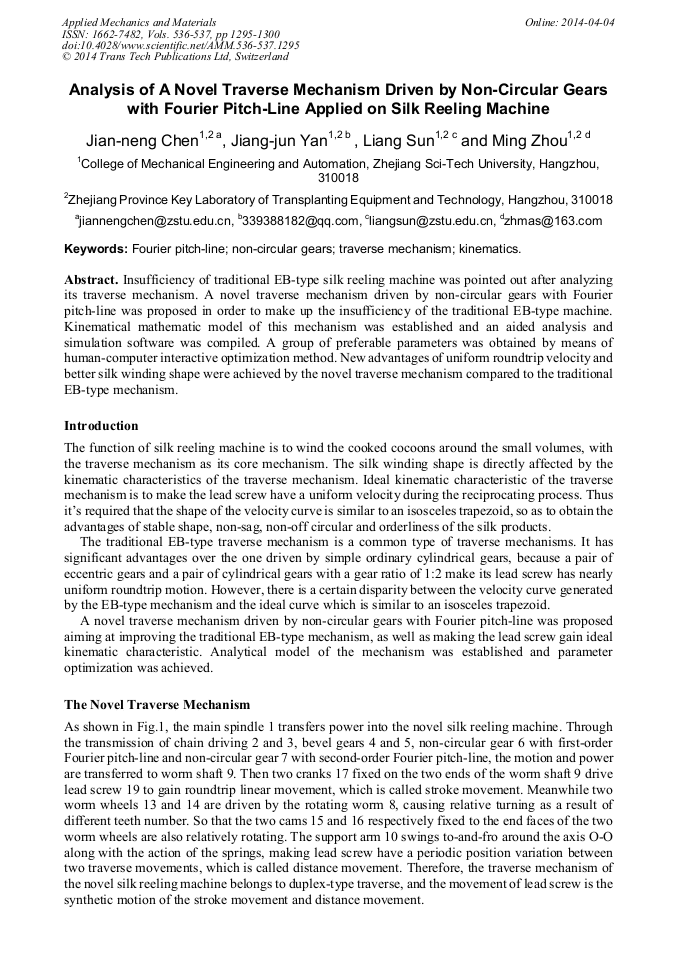

Analysis of a Novel Traverse Mechanism Driven by Non-Circular Gears with Fourier Pitch-Line Applied on Silk Reeling Machine

Abstract:

Insufficiency of traditional EB-type silk reeling machine was pointed out after analyzing its traverse mechanism. A novel traverse mechanism driven by non-circular gears with Fourier pitch-line was proposed in order to make up the insufficiency of the traditional EB-type machine. Kinematical mathematic model of this mechanism was established and an aided analysis and simulation software was compiled. A group of preferable parameters was obtained by means of human-computer interactive optimization method. New advantages of uniform roundtrip velocity and better silk winding shape were achieved by the novel traverse mechanism compared to the traditional EB-type mechanism.

• Periodical: Applied Mechanics and Materials (Volumes 536-537)
• Pages: 1295-1300
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.536-537.1295
• Online since: April 2014
• Authors: Jian Neng Chen, Jiang Jun Yan, Liang Sun, Ming Zhou
• Keywords: Fourier Pitch-Line, Kinematics, Non-Circular Gears, Traverse Mechanism

References

[1] M.D. Shen, R.G. Liang: Journal of Zhejiang Silk Institute of Technology. Forum Vol. 7 (1990), pp.26-31. in Chinese.

[2] J.N. Chen, H.C. Zhao, Y. Wang, et al: Journal of Donghua University (English Edition). Forum Vol. 30 (2013), pp.15-20.

[3] J.M. Sun, Y.C. Liang: Optimal Design of Machine, (China Machine Press, China 2012). in Chinese.

[4] Y. Zhao: Numerical Analysis of Mechanism and Comprehensive, (China Machine Press, China 2005). in Chinese.

[5] W.G. Liu: Program Design and Application in MATLAB, (Higher Education Press, China 2010). in Chinese.
